Installation

MIRROR (EXT): OUTER MIRROR CONTROL ECU: INSTALLATION

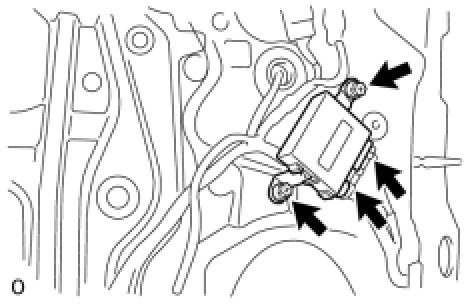

1. INSTALL OUTER MIRROR CONTROL ECU ASSEMBLY





(a) Connect the 2 connectors.

(b) Install the outer mirror control ECU with the 2 screws.

2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

3. INSTALL FRONT UPPER ARMREST BASE PANEL LH Reassembly

4. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH Reassembly

5. INSTALL FRONT LOWER DOOR FRAME BRACKET GARNISH LH Reassembly
