Installation

3UR-FE ENGINE CONTROL: MASS AIR FLOW METER: INSTALLATION

1. INSTALL MASS AIR FLOW METER

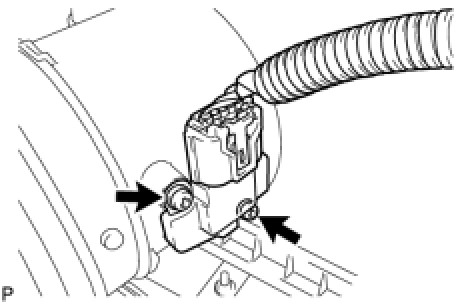

(a) Install the MAF meter with the 2 screws.





Torque : 1.7 Nm (17 kgf-cm, 15 in-lbf)

(b) Connect the MAF connector.

2. INSTALL ENGINE ROOM SIDE COVER RH Installation
