Installation

3UR-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

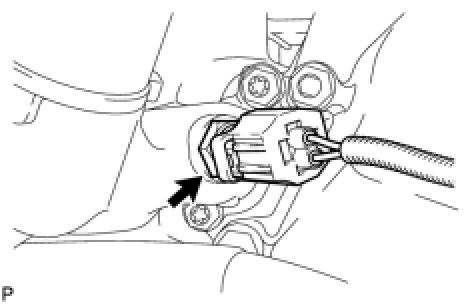

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR





(a) Install a new gasket to the sensor.

(b) Using a 19 mm deep socked wrench, install the sensor.

Torque : 20 Nm (200 kgf-cm, 14 ft-lbf)

(c) Connect the sensor connector.

2. ADD ENGINE COOLANT Service and Repair

3. INSPECT FOR COOLANT LEAK Testing and Inspection

4. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

5. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

6. INSTALL ENGINE ROOM SIDE COVER RH Installation

7. INSTALL ENGINE ROOM SIDE COVER LH Installation

8. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Installation

9. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation

10. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Installation
