Main Relay (Computer/Fuel System): Locations





3UR-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION

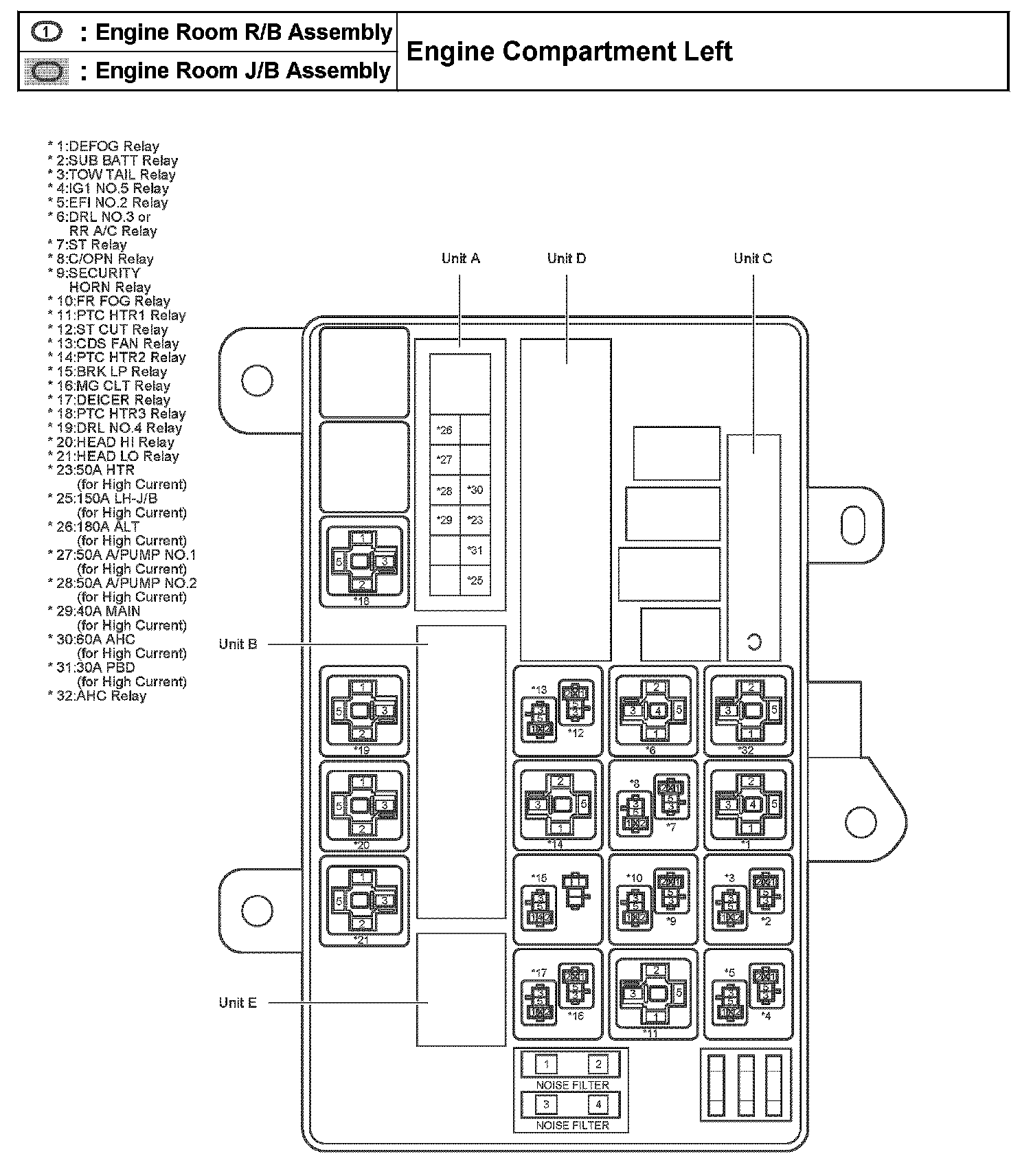

Engine Room R/B, J/B Assembly - Engine Compartment Left:
