Electrical Specifications





SPECIFICATIONS: 3UR-FE ENGINE CONTROL: SERVICE DATA

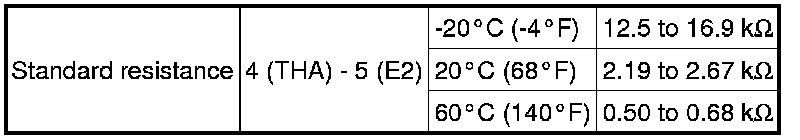

MAF Meter (Intake Air Temperature Sensor)





Camshaft Timing Oil Control Valve





Engine Coolant Temperature Sensor





Throttle Control Motor





Knock Sensor





Air Fuel Ratio Sensor (for Bank 1 sensor 1)





Air Fuel Ratio Sensor (for Bank 2 sensor 1)





Heated Oxygen Sensor (for Bank 1 sensor 2)





Heated Oxygen Sensor (for Bank 2 sensor 2)

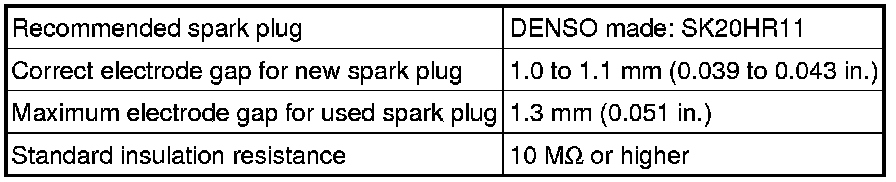

Spark Plug
