Service Data

Wheel Alignment Specifications

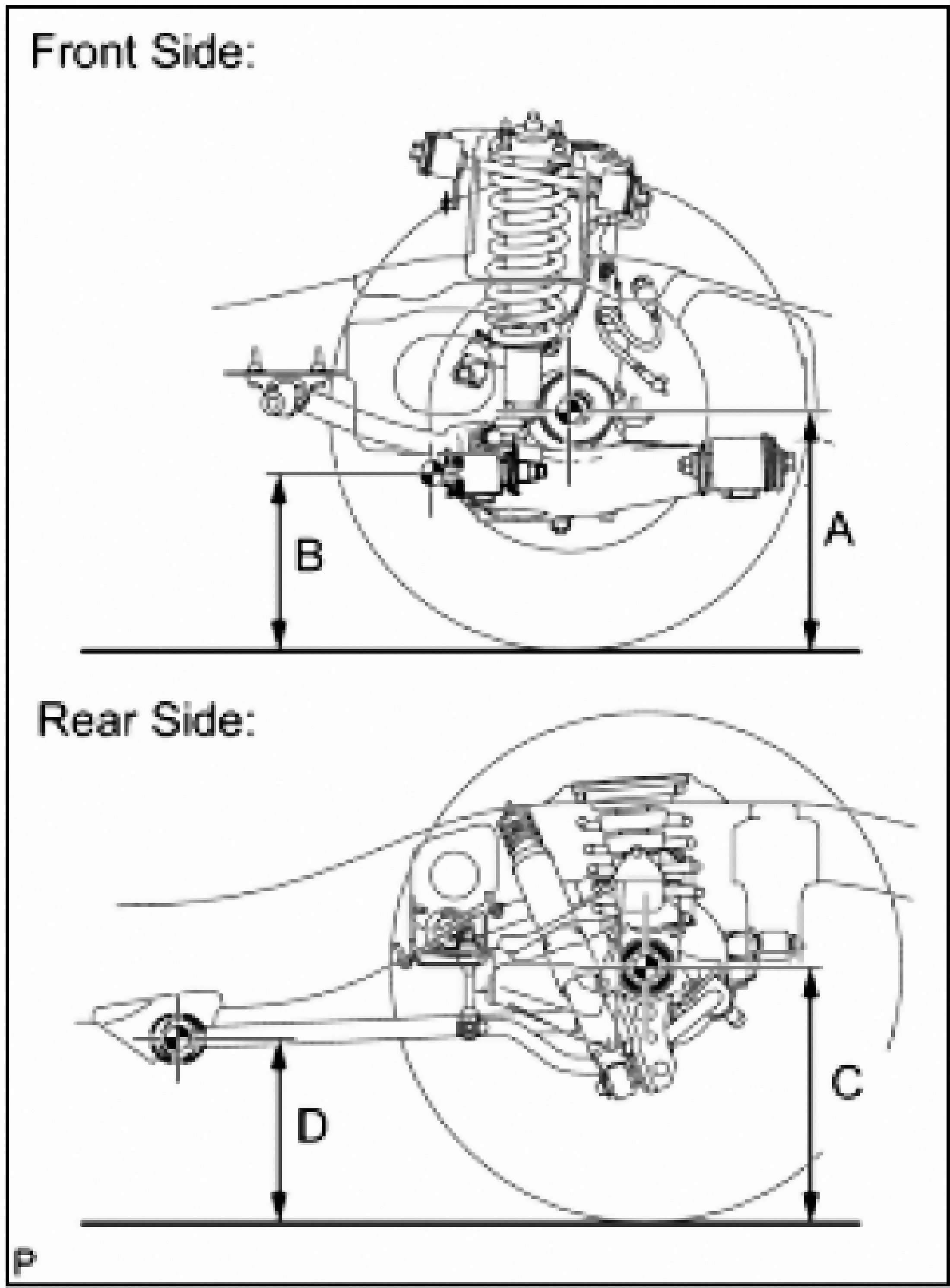

Measuring Points:
A: Ground clearance of the front drive shaft center

B: Ground clearance of the front adjusting cam bolt center

C: Ground clearance of the rear axle shaft center

D: Ground clearance of the rear lower control arm front side center

Standard Vehicle Height (Unloaded Vehicle):

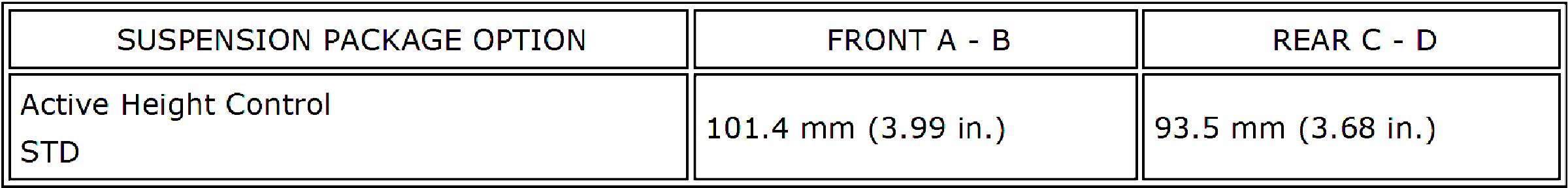

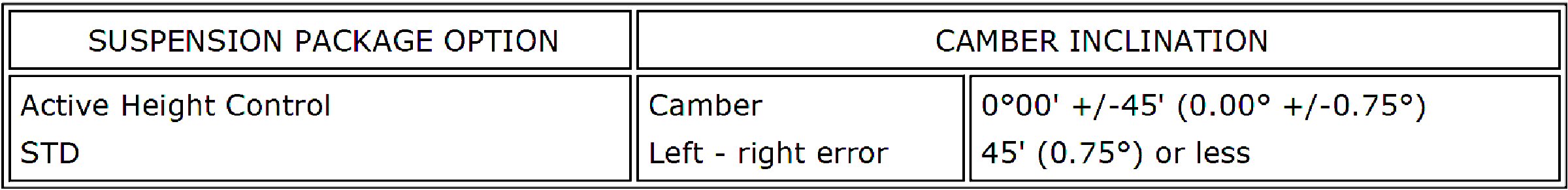

Standard Camber Inclination (Unloaded Vehicle):

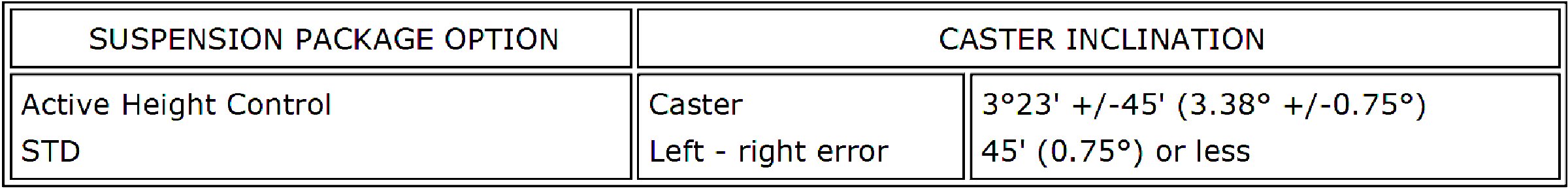

Standard Caster Inclination (Unloaded Vehicle):

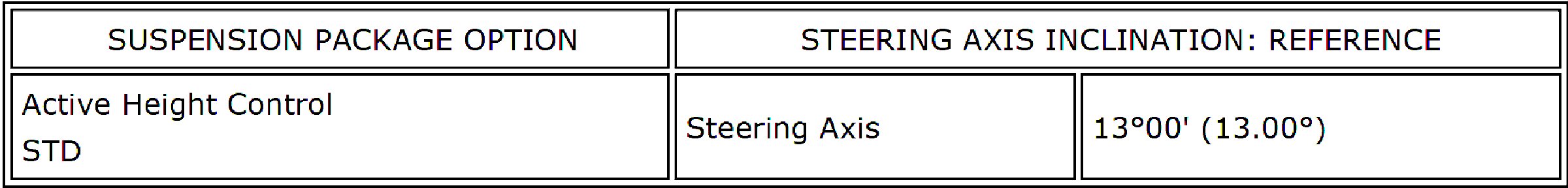

Standard Steering Axis Inclination (Unloaded Vehicle):

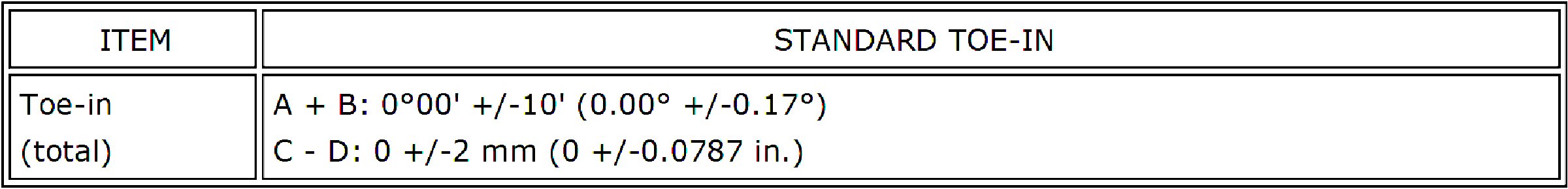

Standard Toe-in (Unloaded Vehicle):

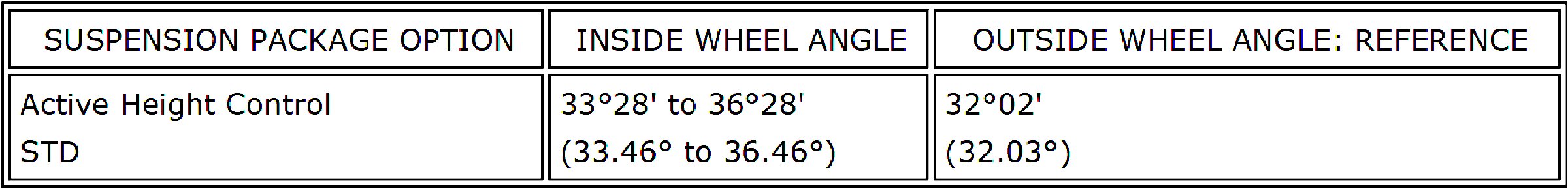

Standard Wheel Turning Angle (Unloaded Vehicle):
