Components
COMPONENTS

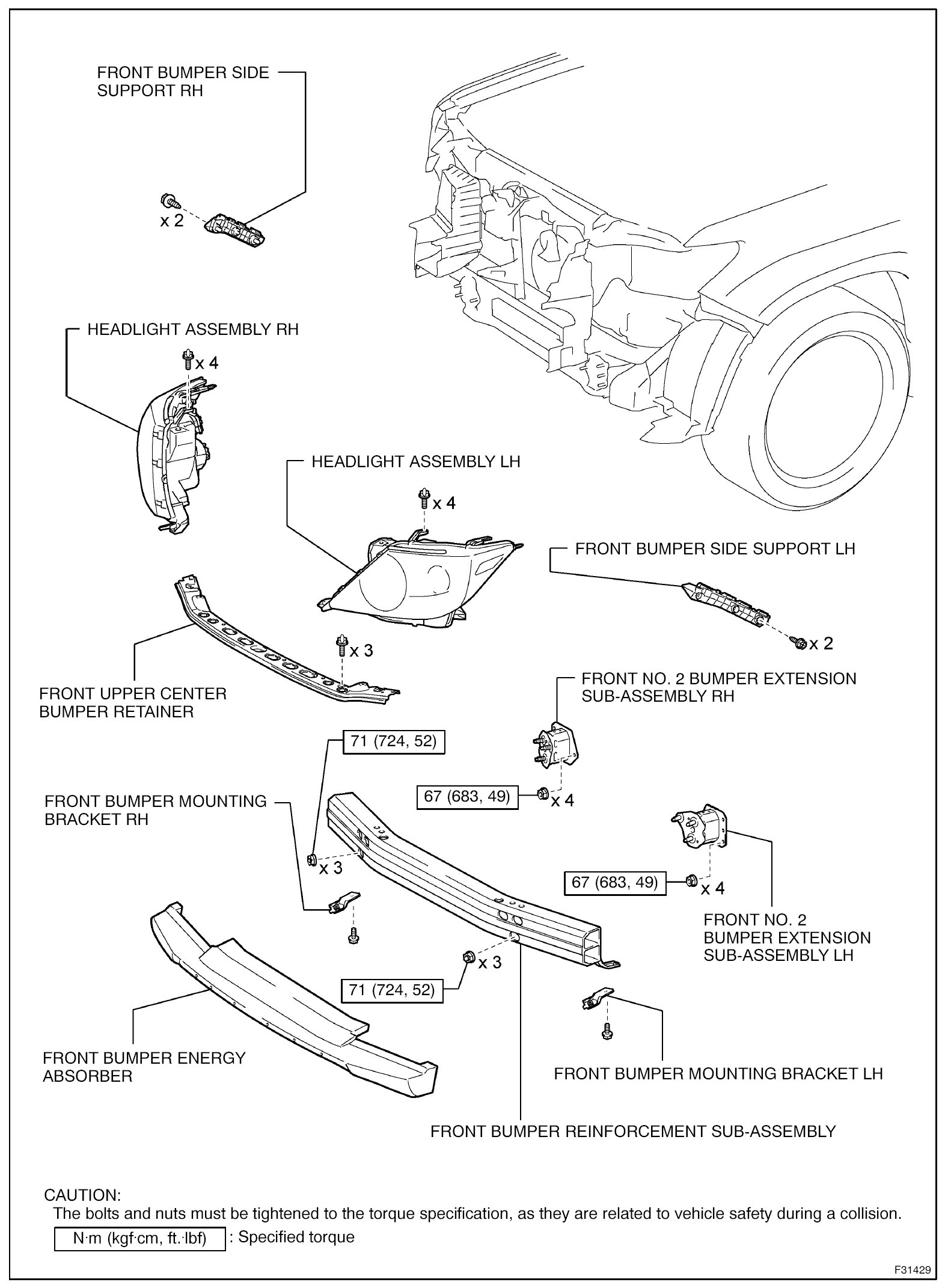

a.
FRONT
BUMPER

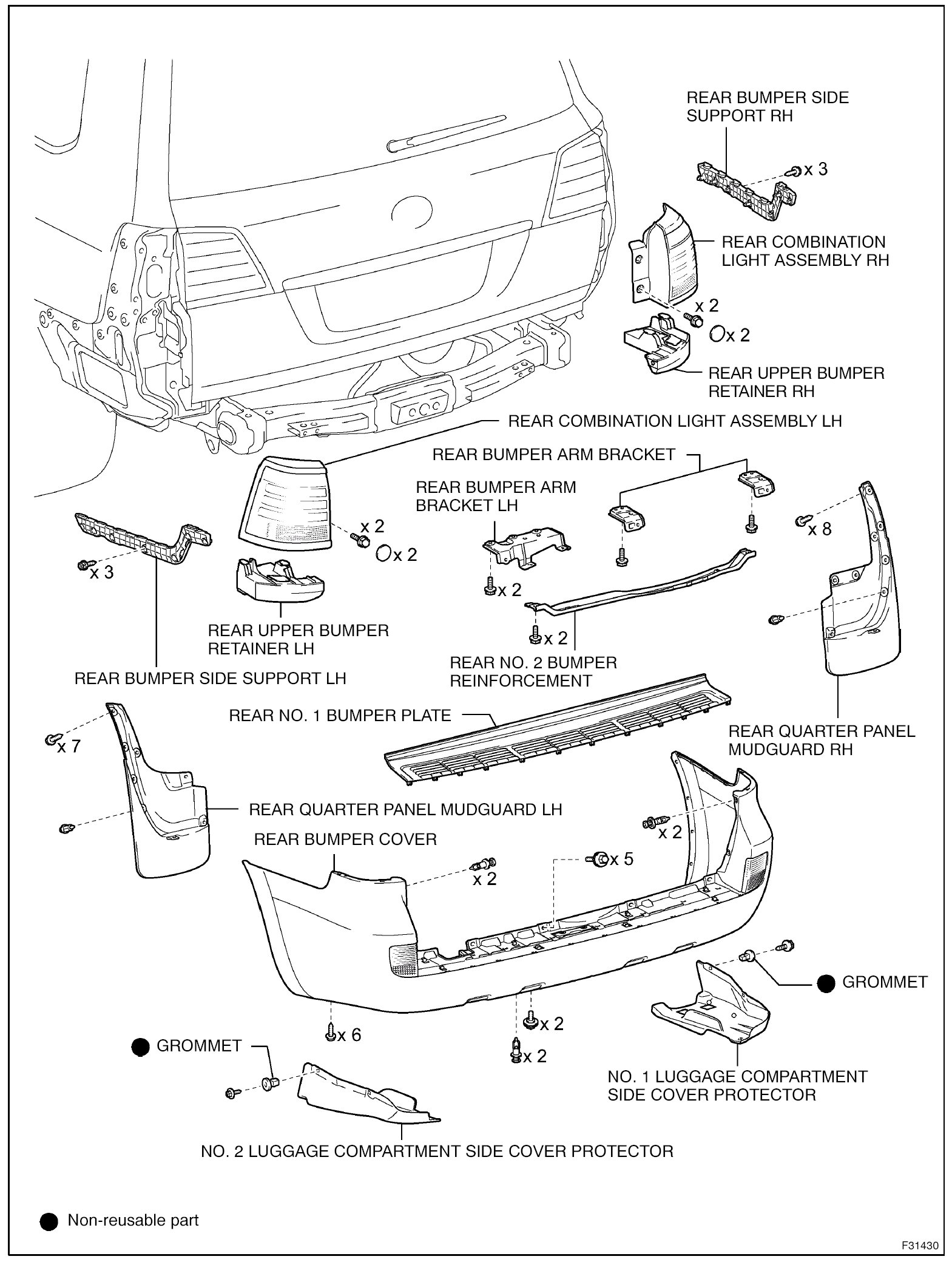

b.
REAR
BUMPER

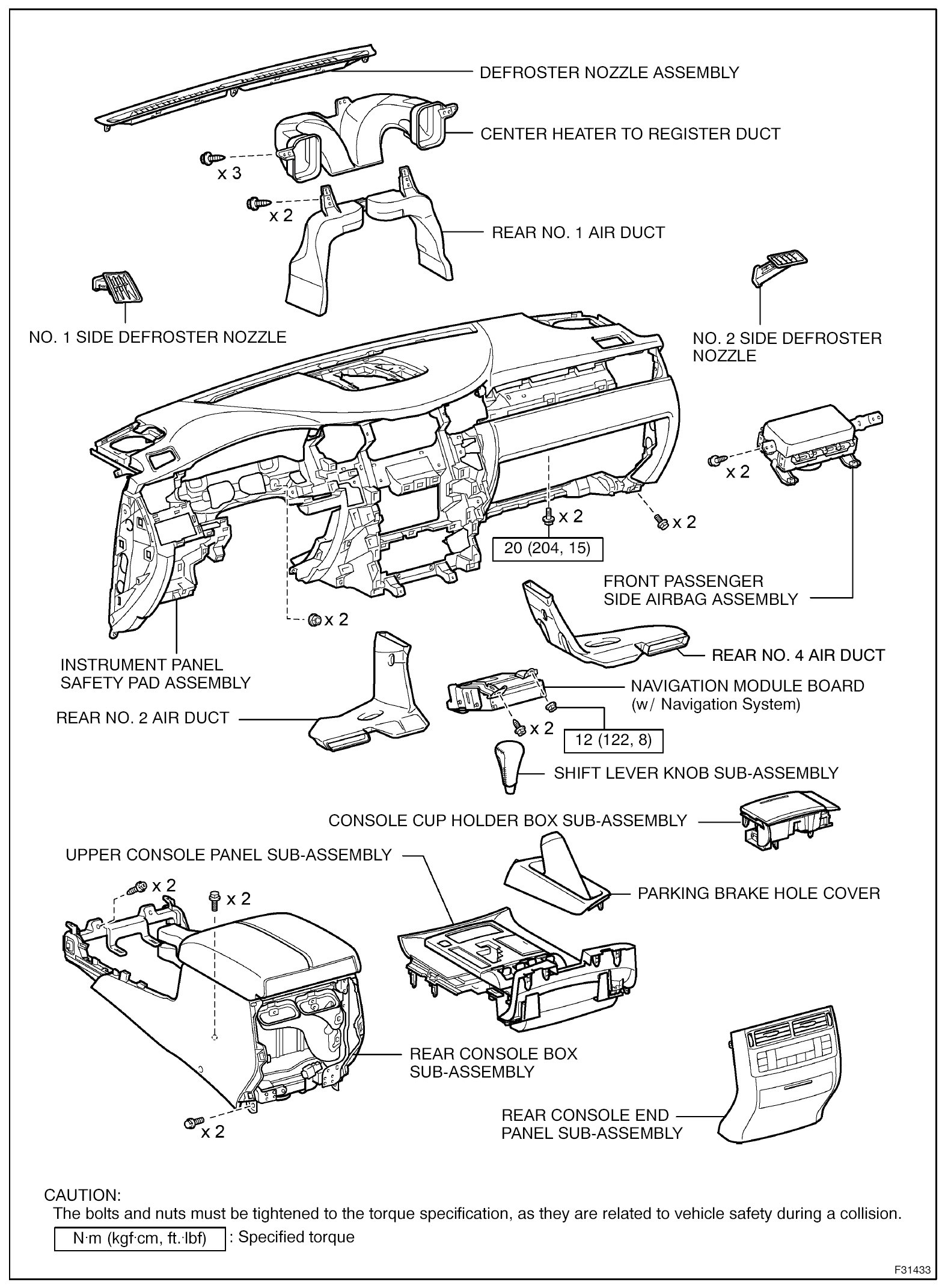

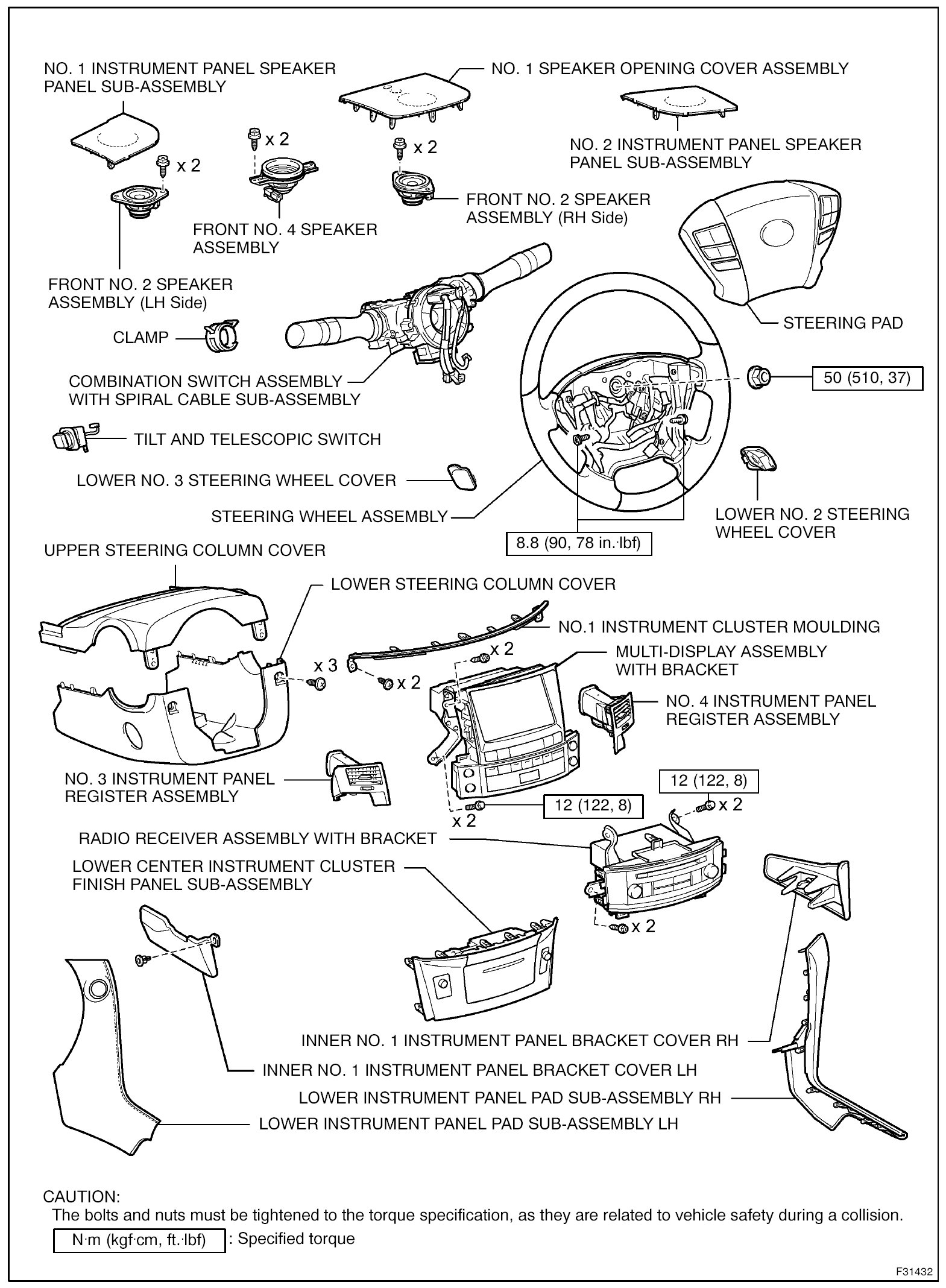

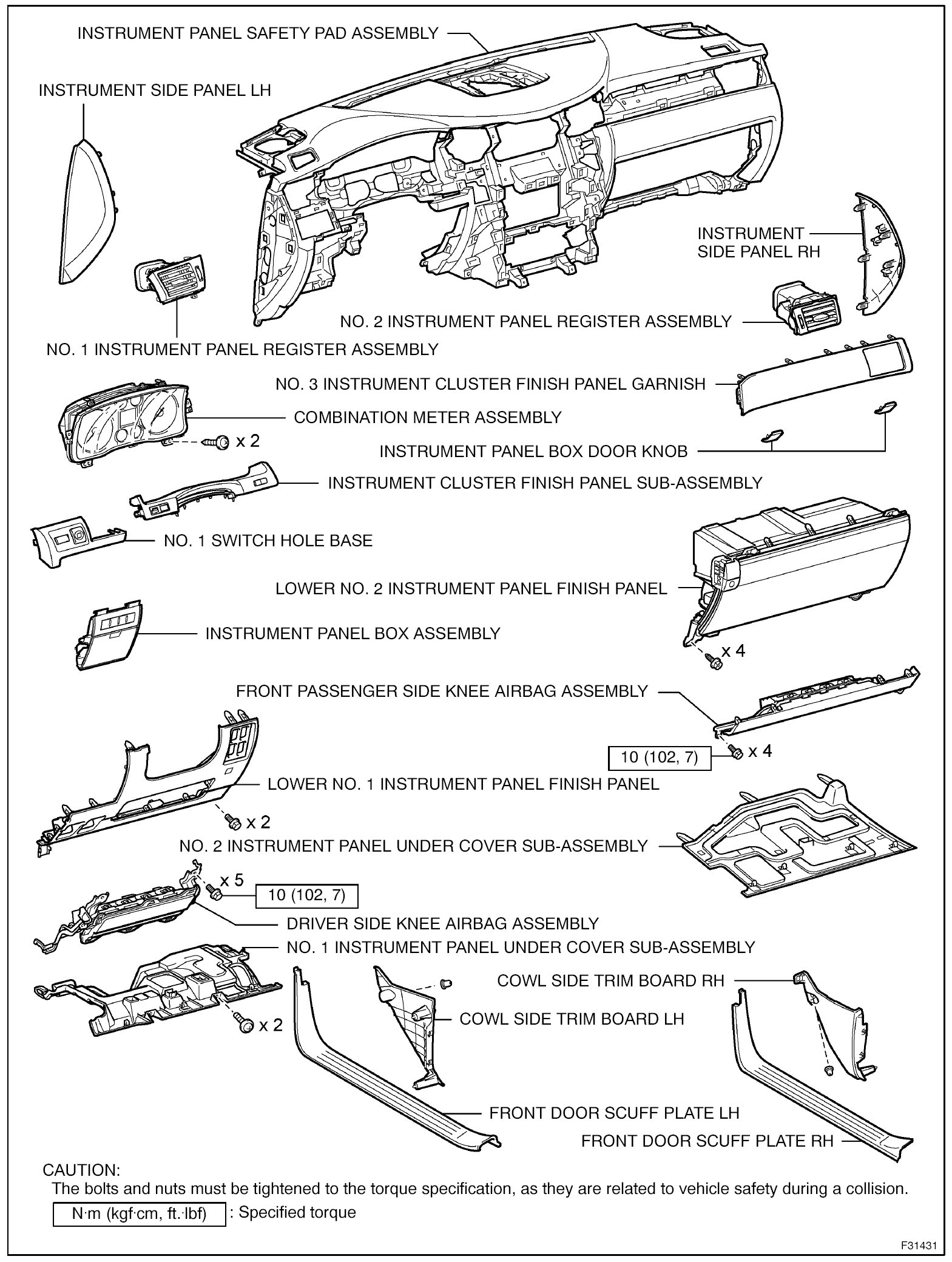

c.
INSTRUMENT PANEL

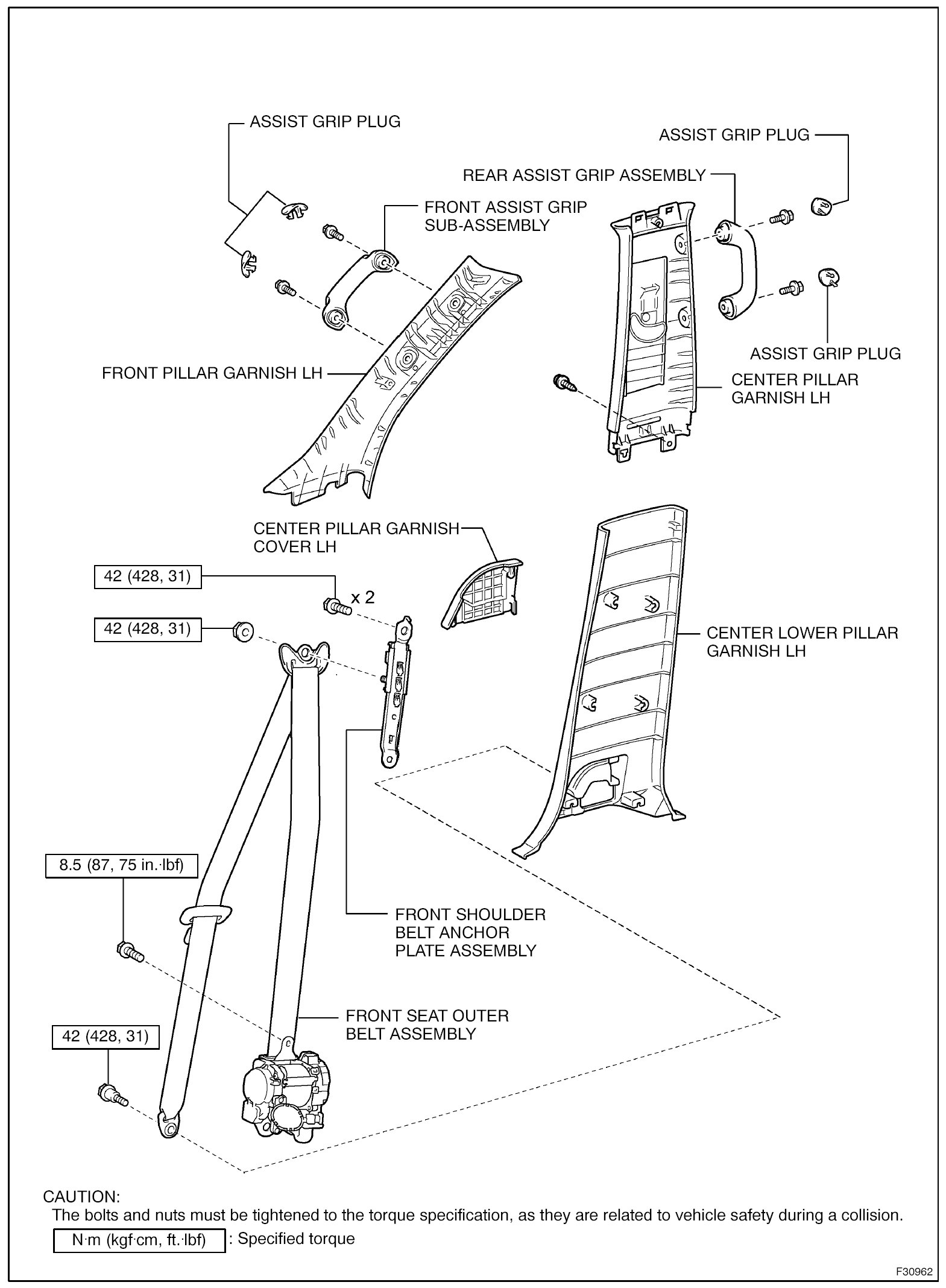

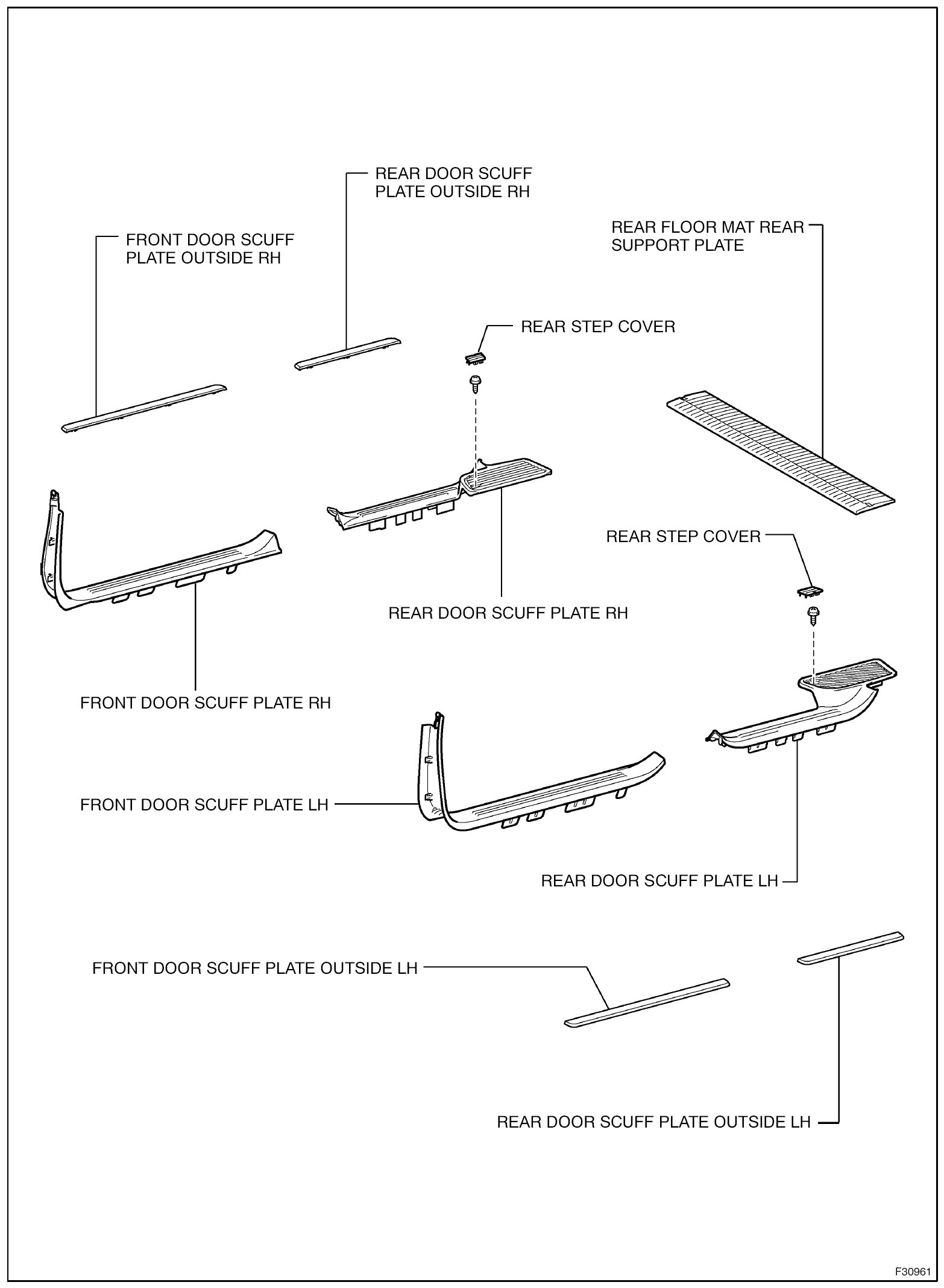

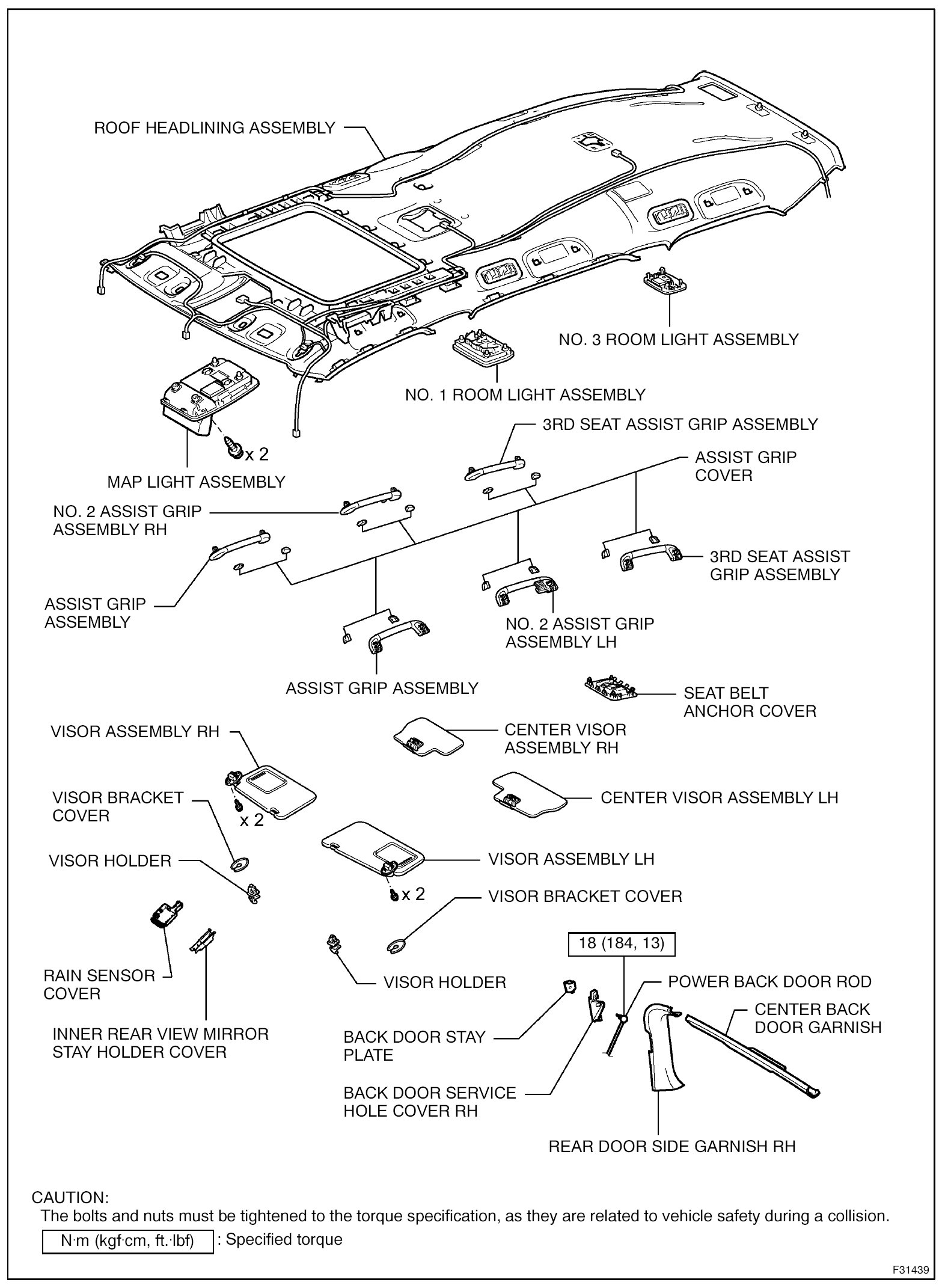

d.

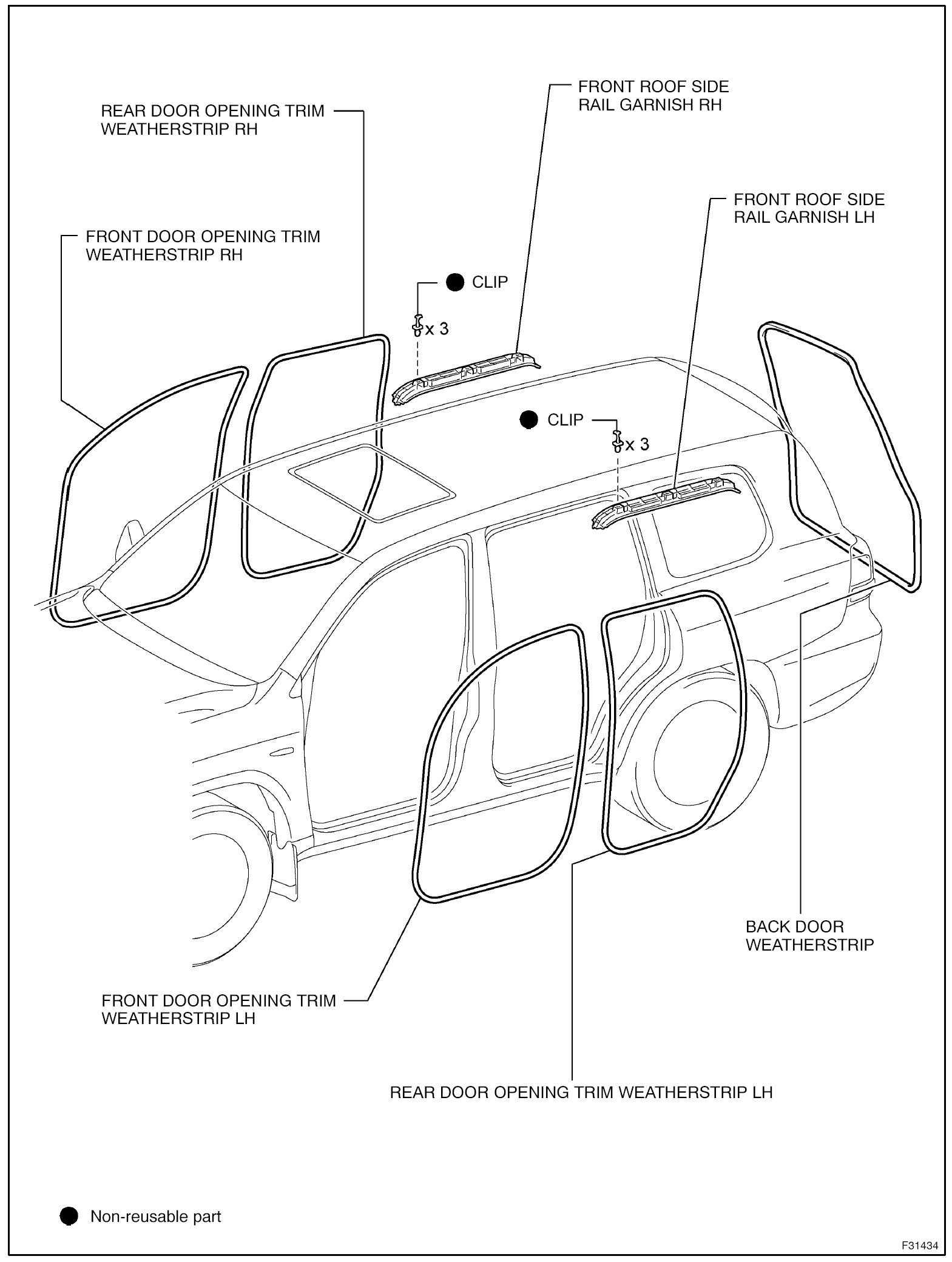

INTERIOR TRIM
e.

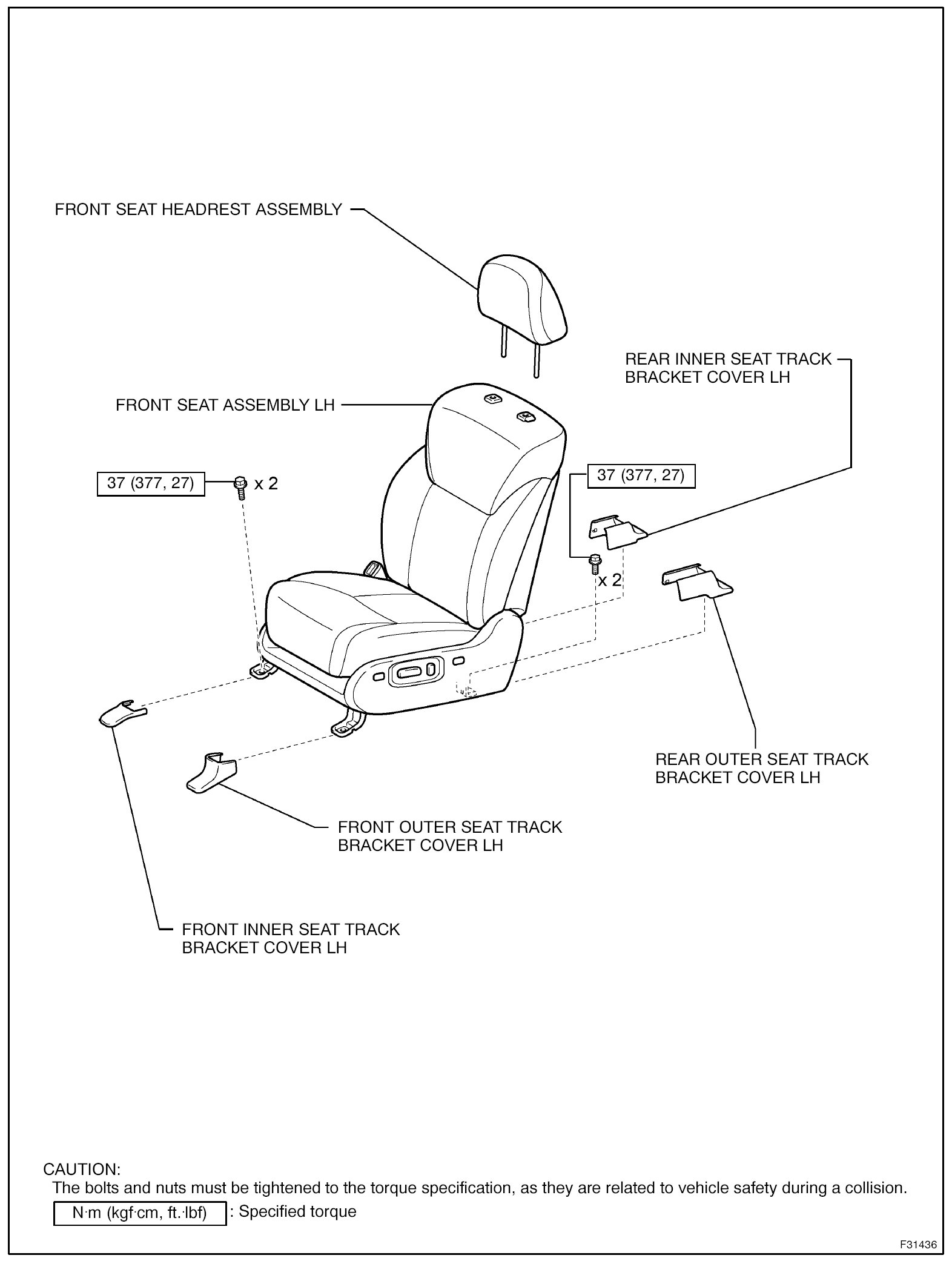

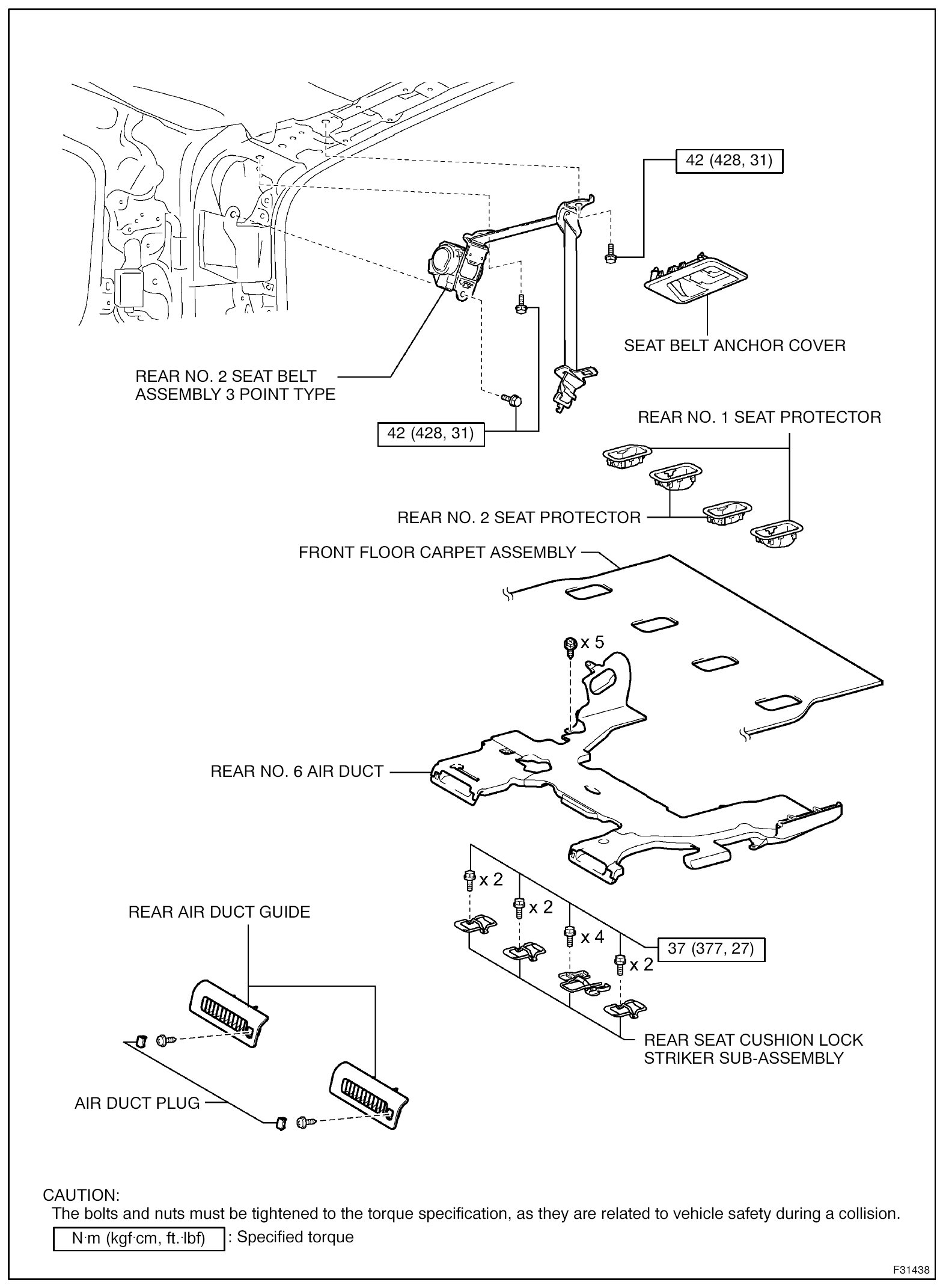

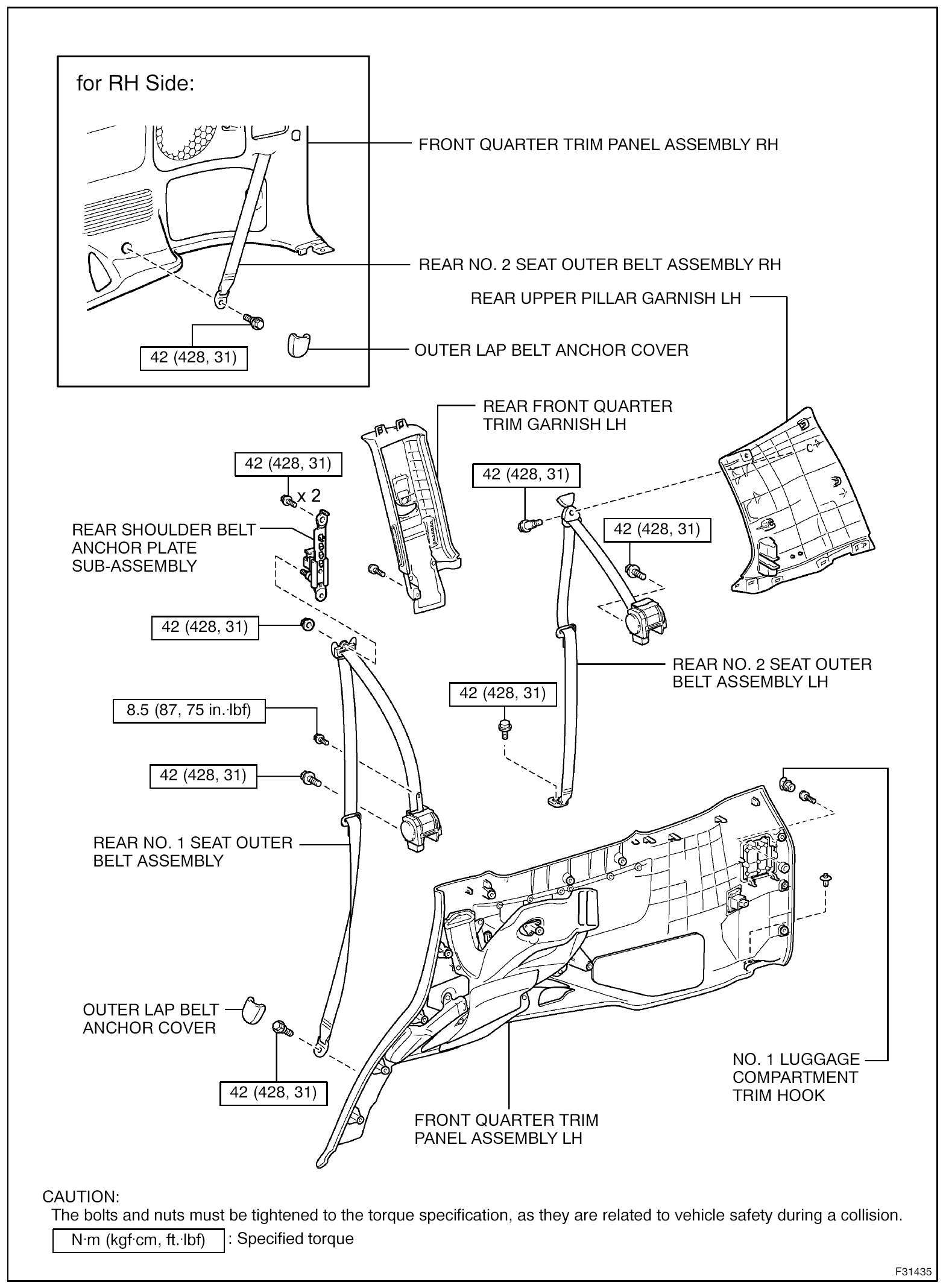

FRONT SEAT

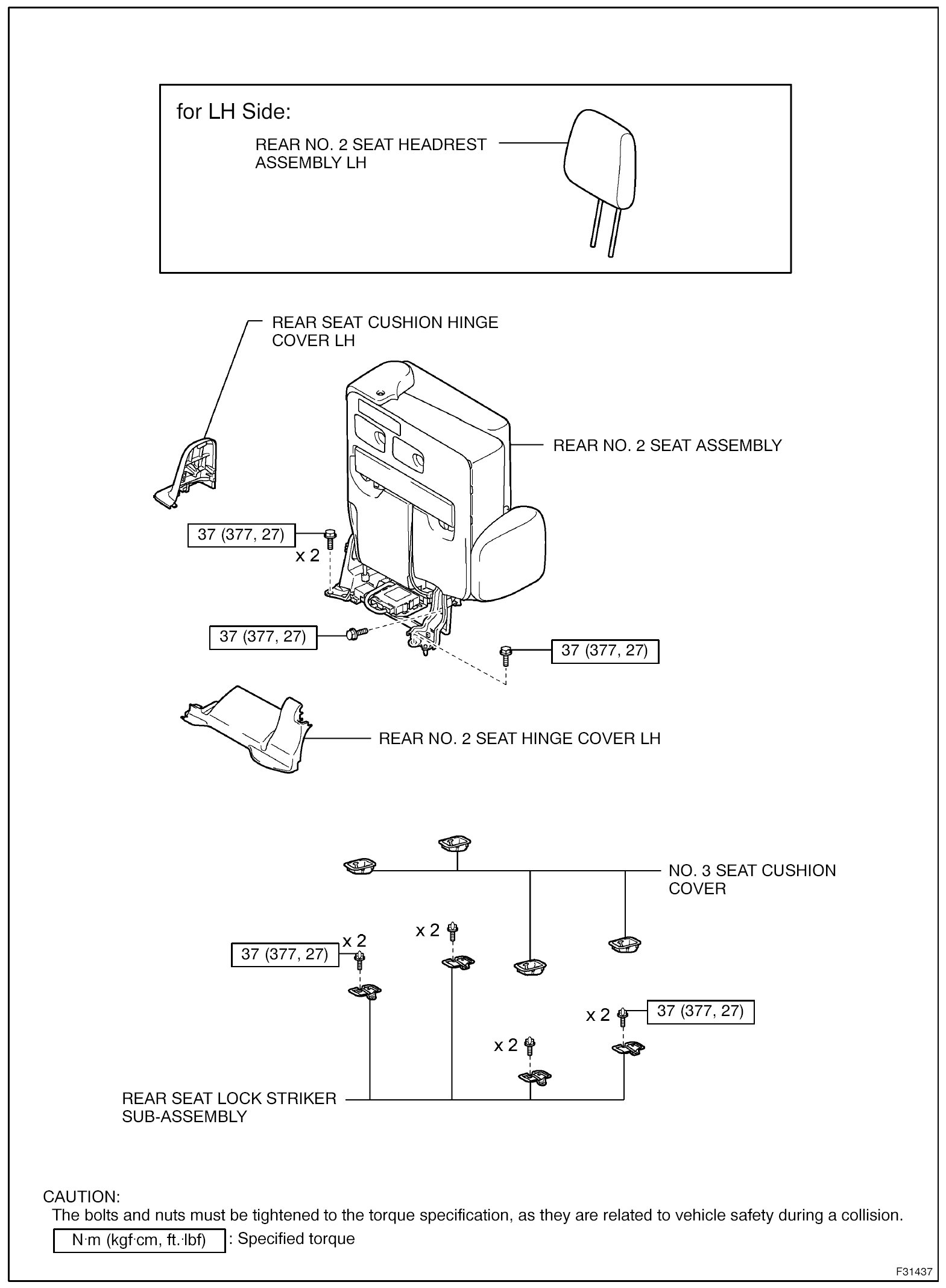

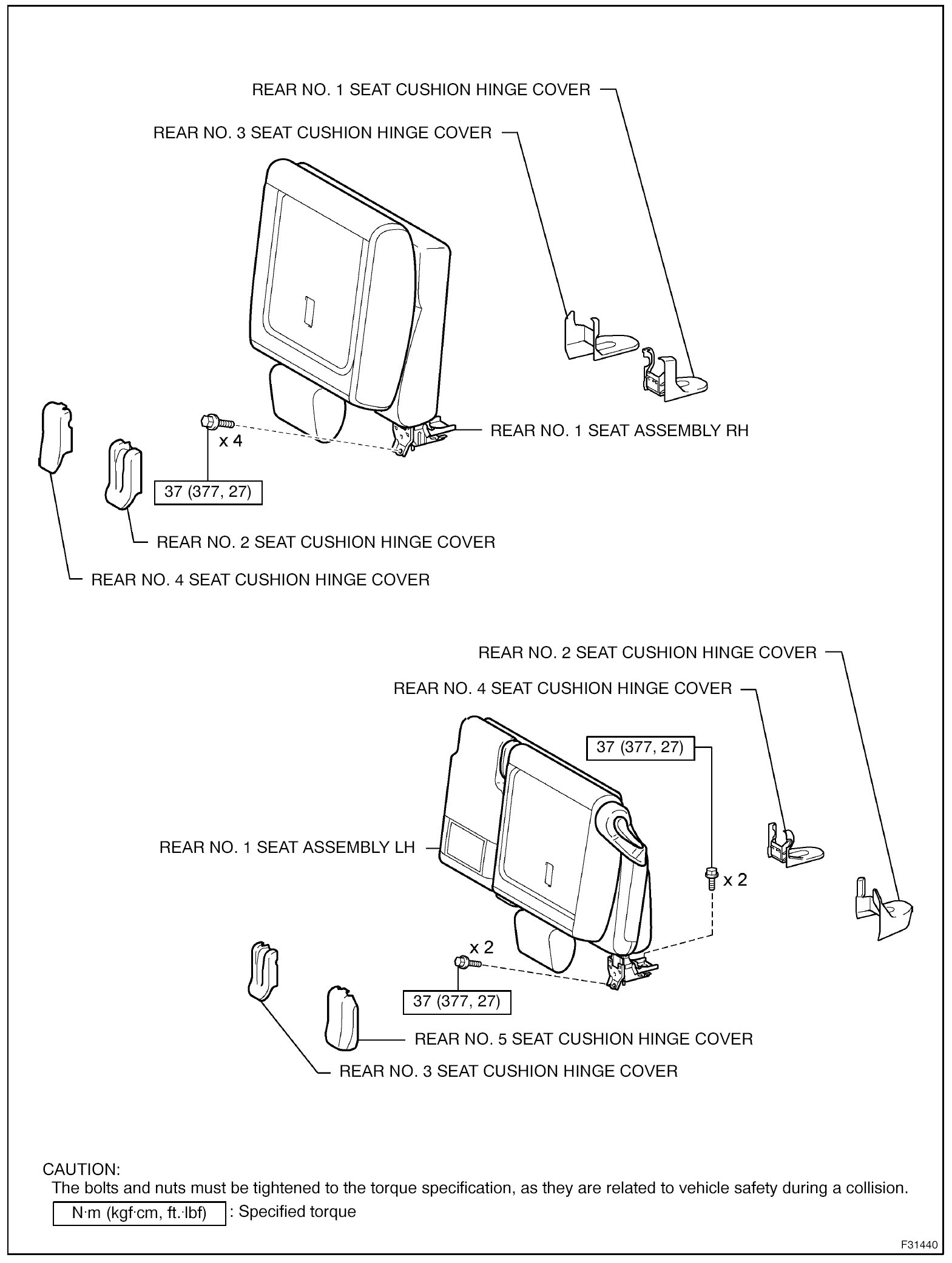

f.
REAR SEAT
