Brake Control / Dynamic Control Systems





SPECIFICATIONS: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: TORQUE SPECIFICATIONS

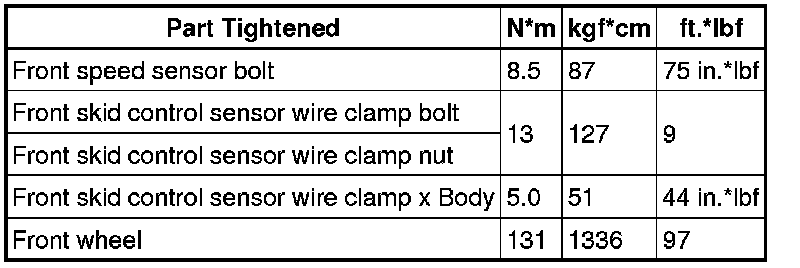

Front Speed Sensor

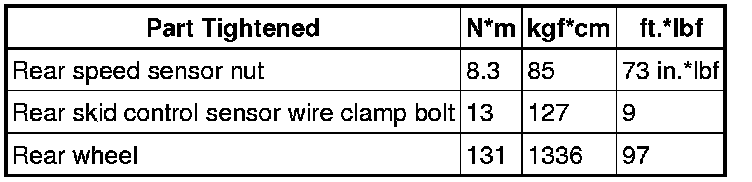

Rear Speed Sensor





Yaw Rate Sensor
