Intake Manifold






Intake manifold 21 Nm (214 kgf-cm, 15 ft-lbf)

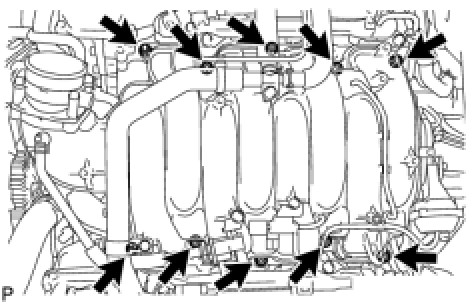

Uniformly tighten the 8 bolts and 2 nuts in several steps.
