Service Data





SPECIFICATIONS: 3UR-FE ENGINE MECHANICAL: SERVICE DATA

Engine

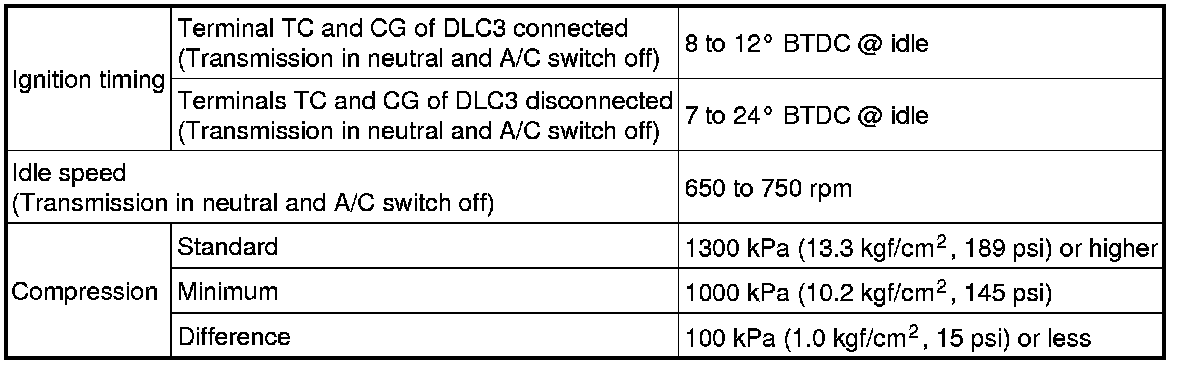

Engine Unit

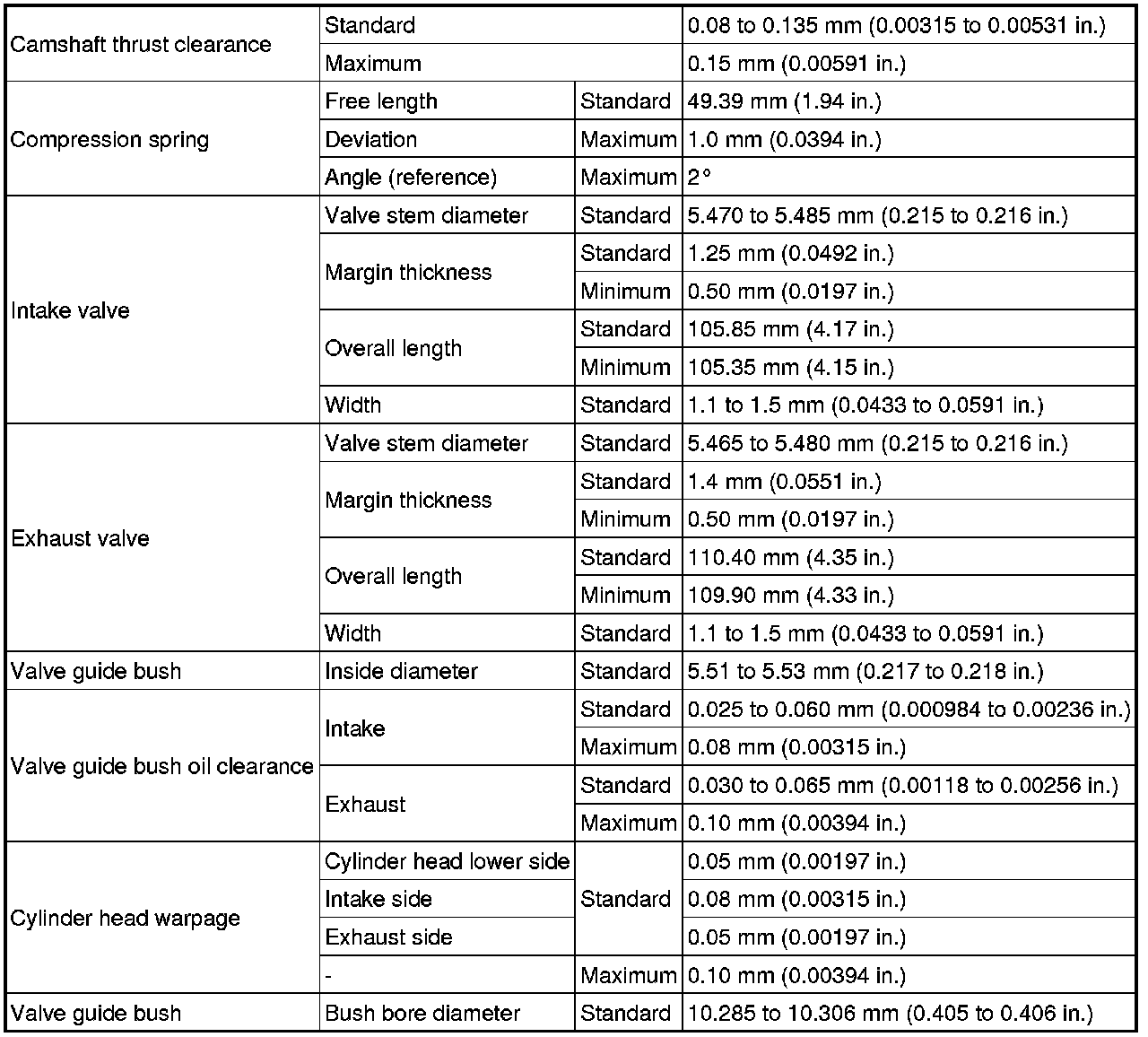

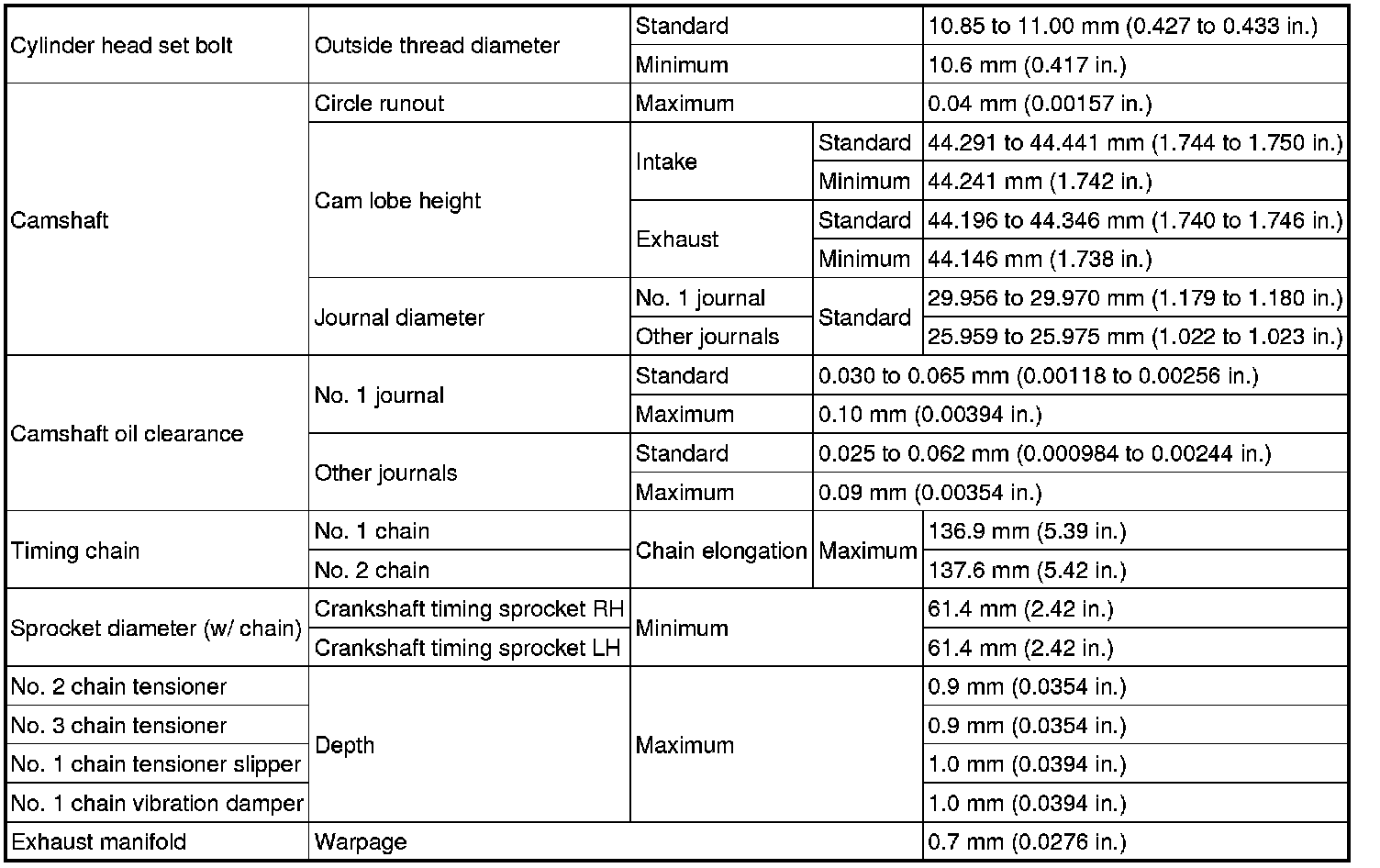

Cylinder Head

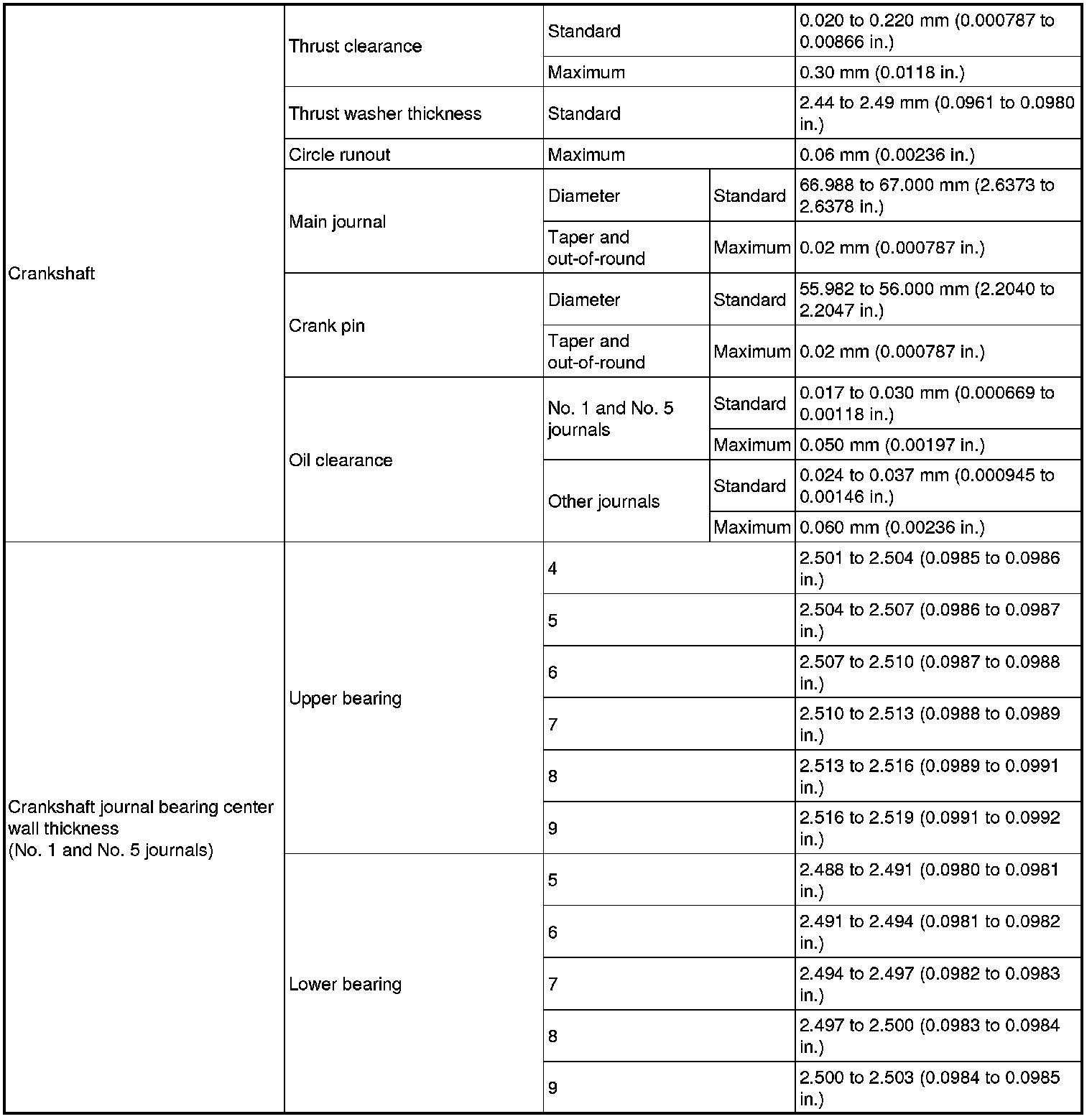

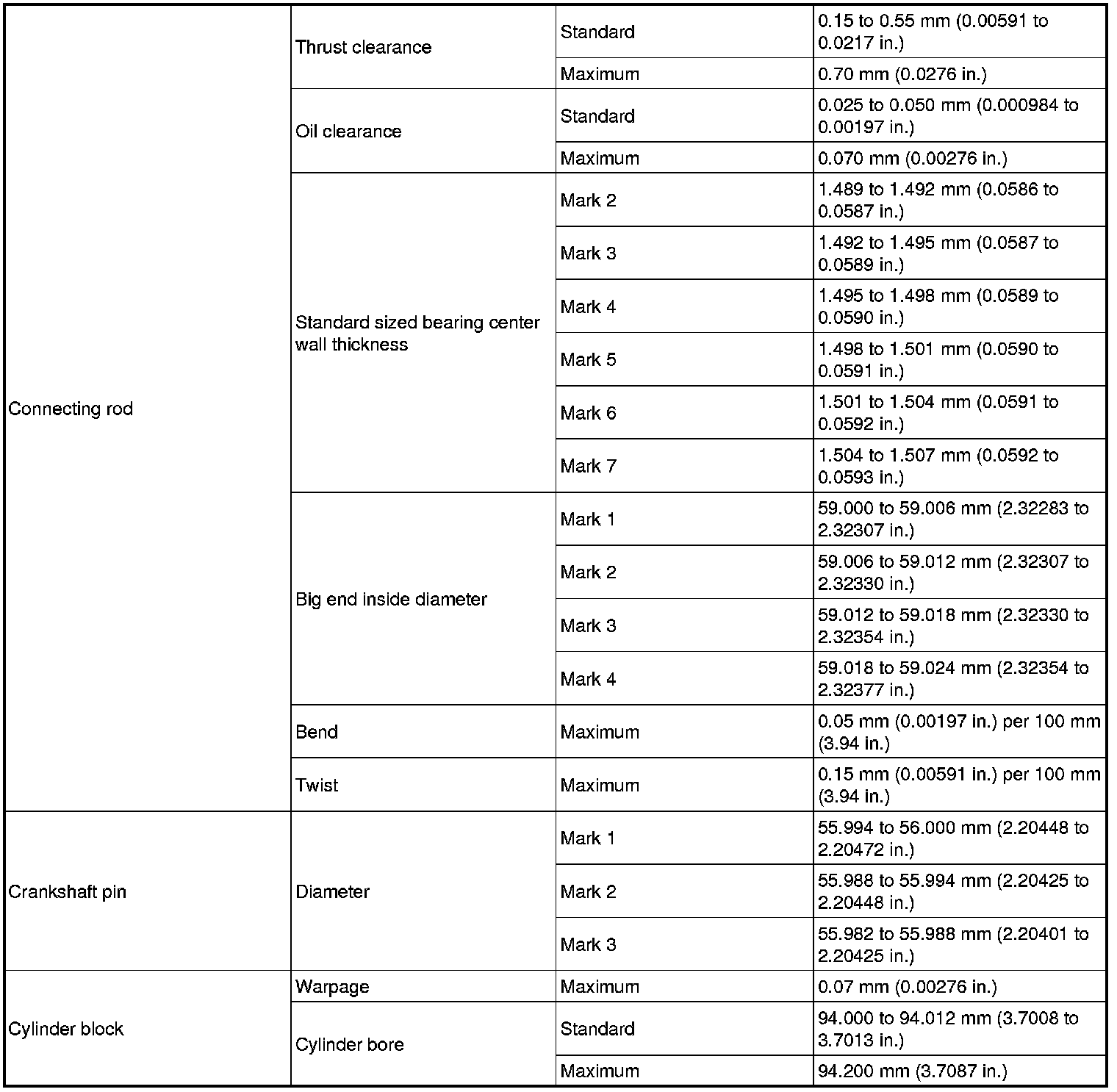

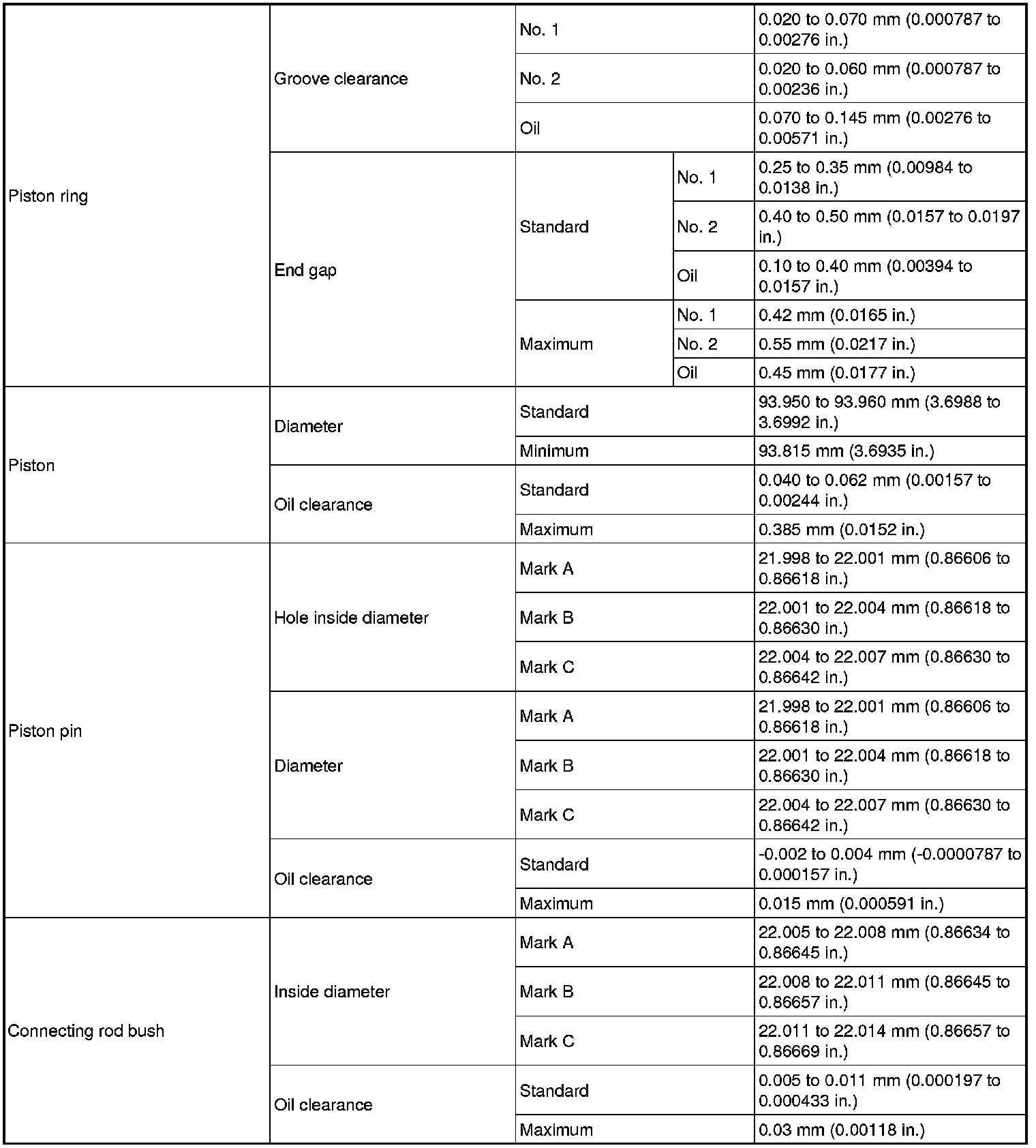

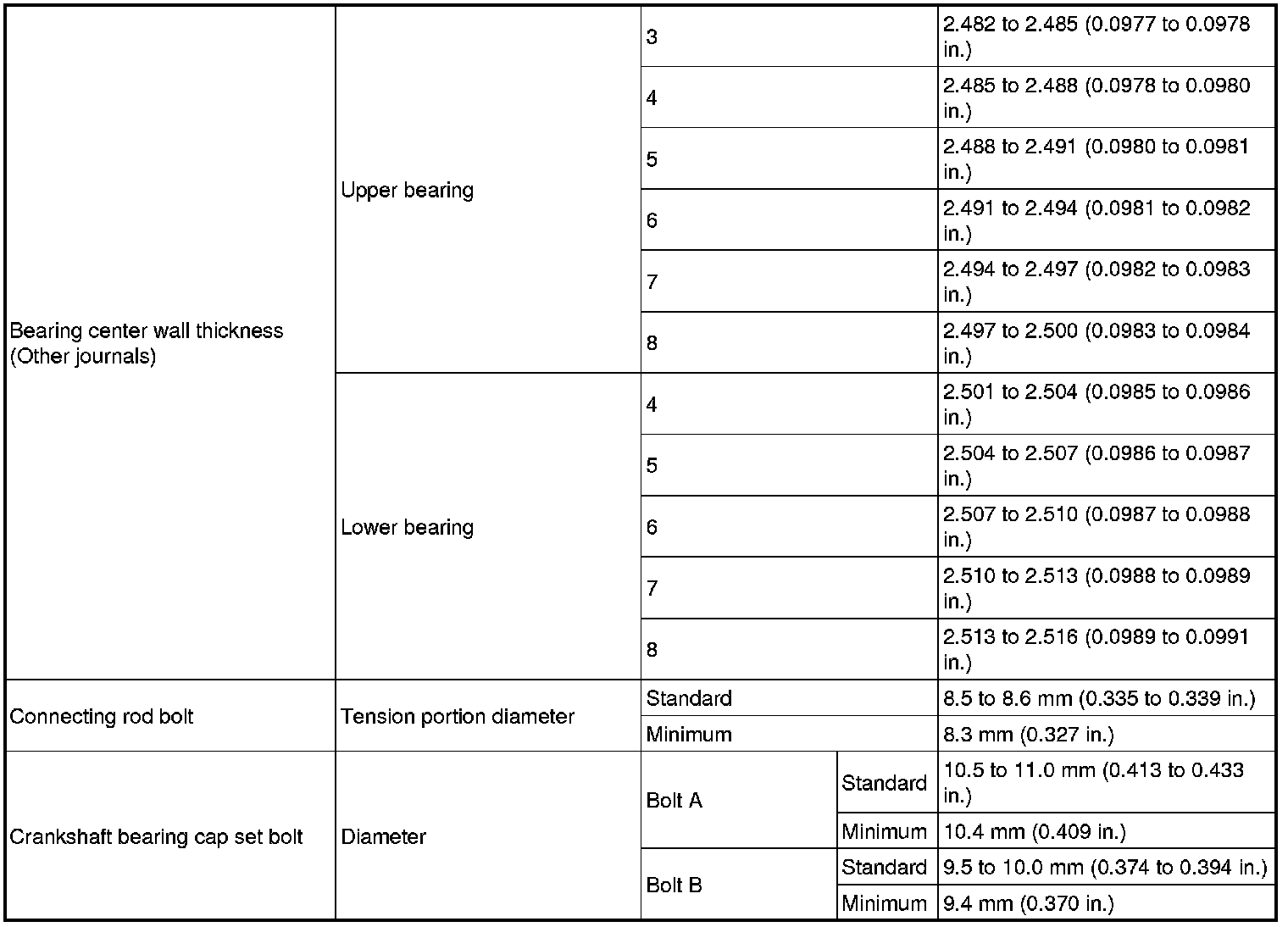

Cylinder Block
