Torque Specifications





SPECIFICATIONS: 3UR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

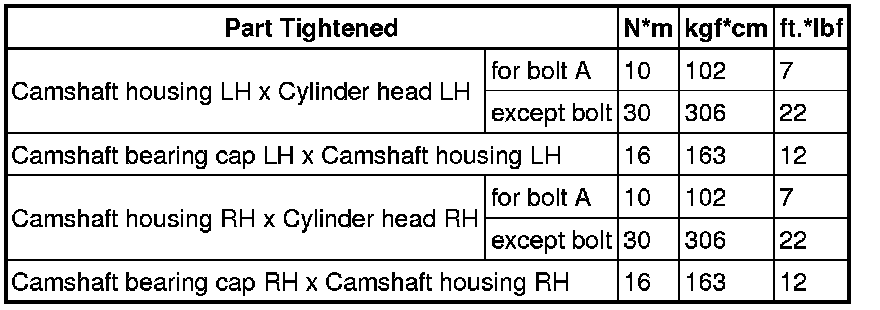

Camshaft





Cylinder Head Gasket





Front Crankshaft Oil Seal

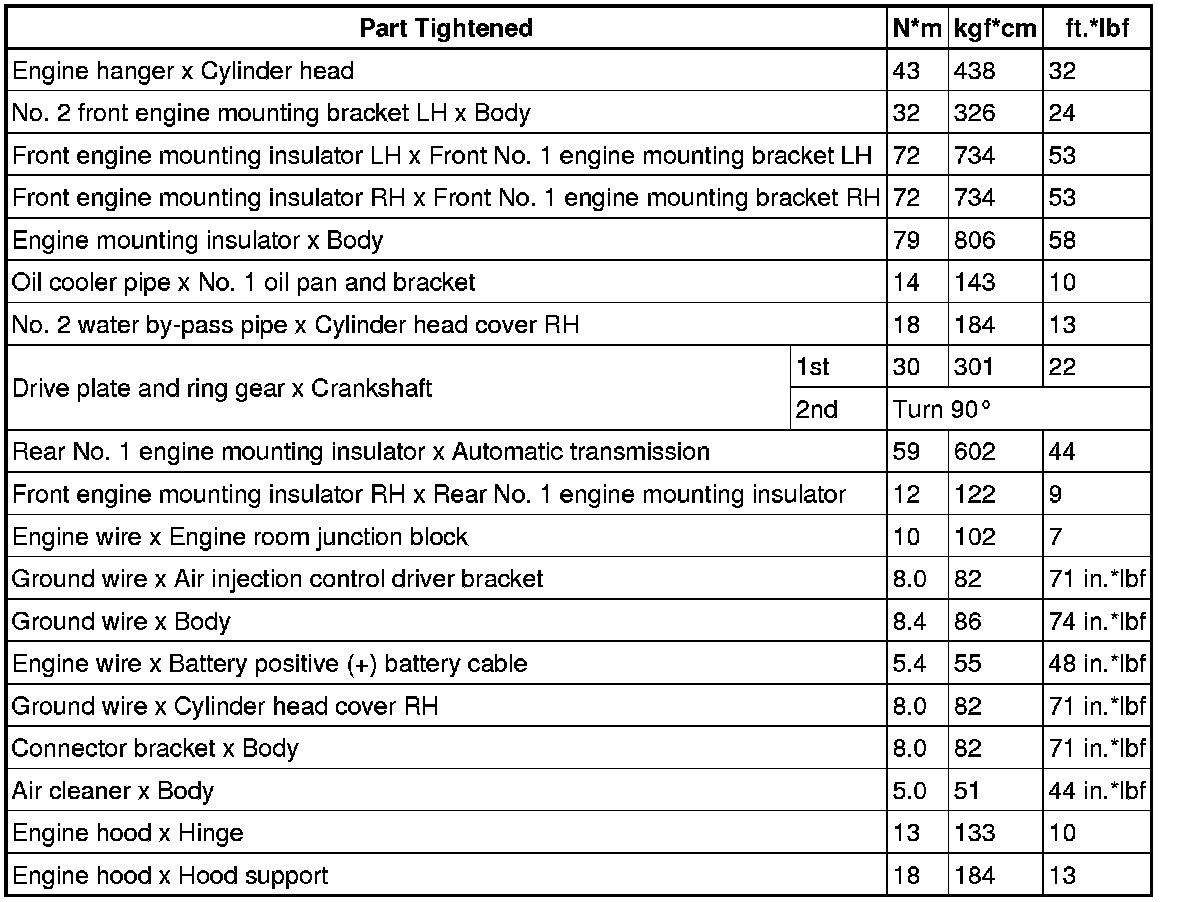

Engine Assembly

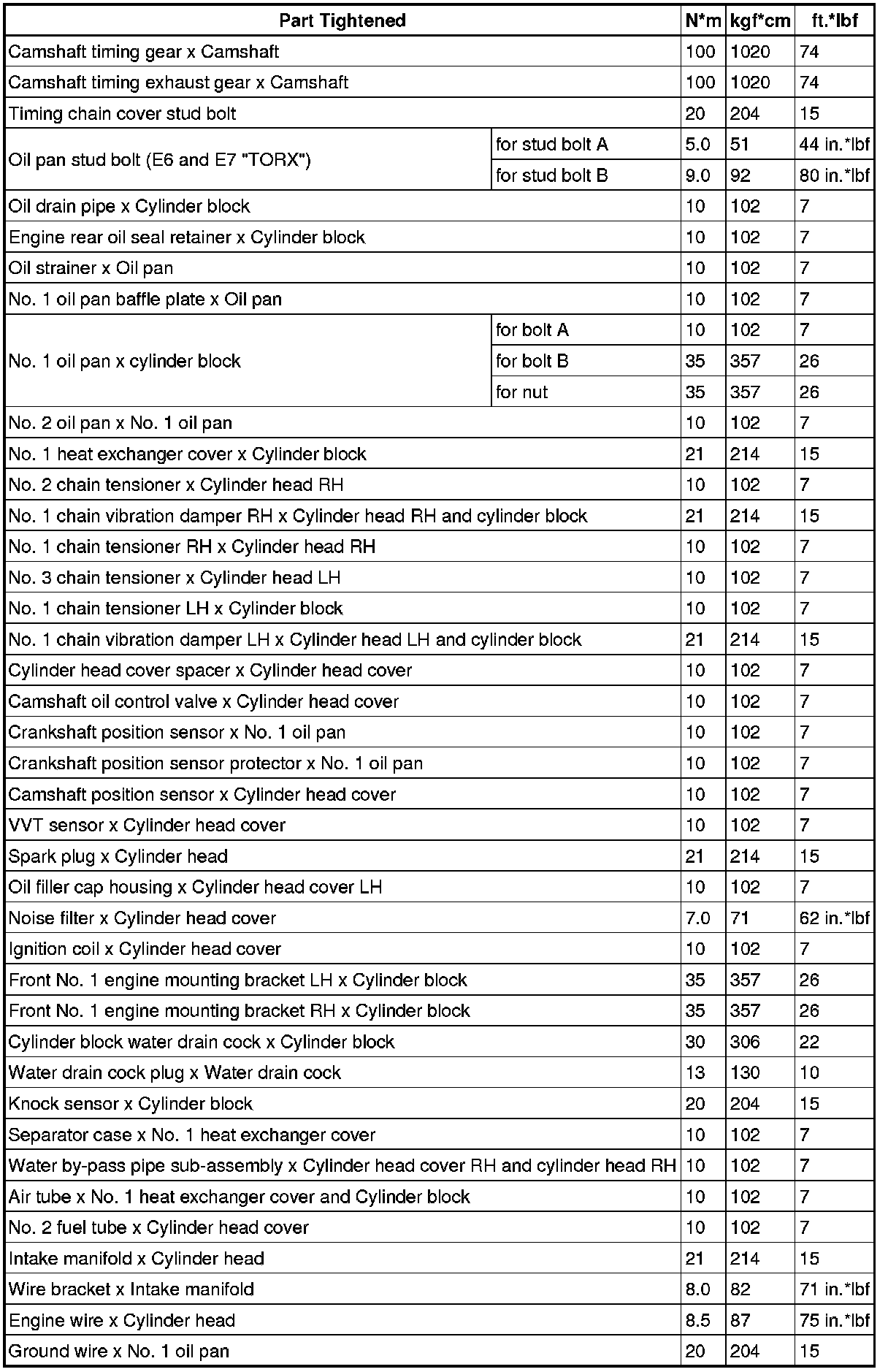

Engine Unit

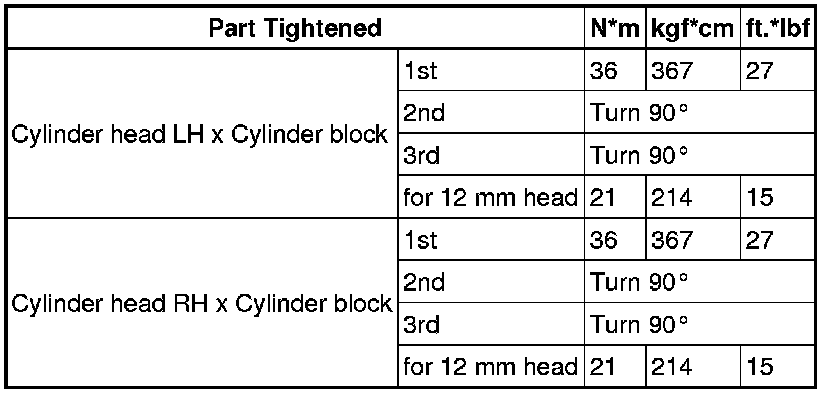

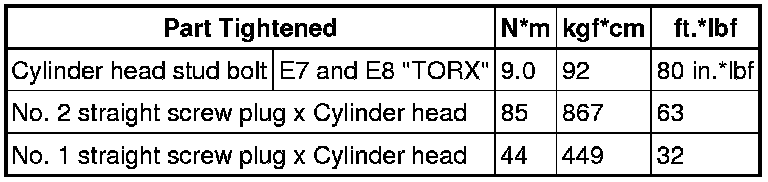

Cylinder Head

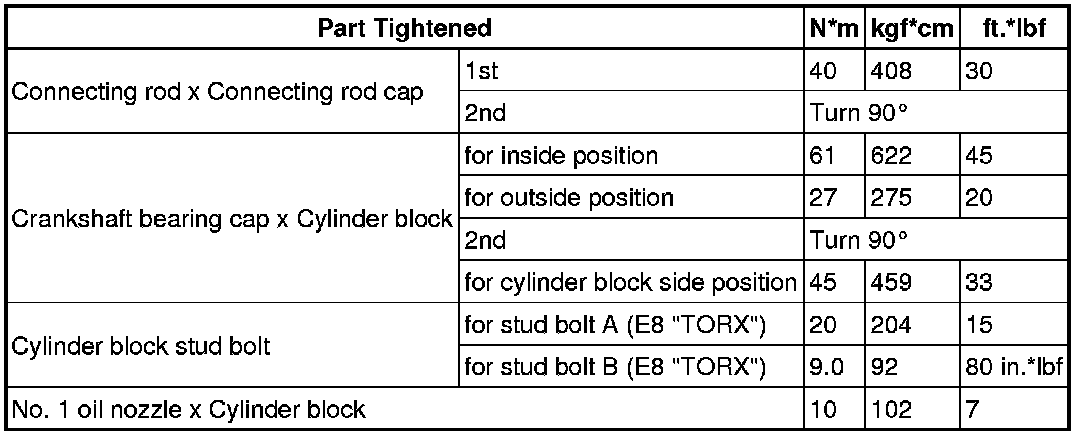

Cylinder Block
