Wiper Control Module: Locations

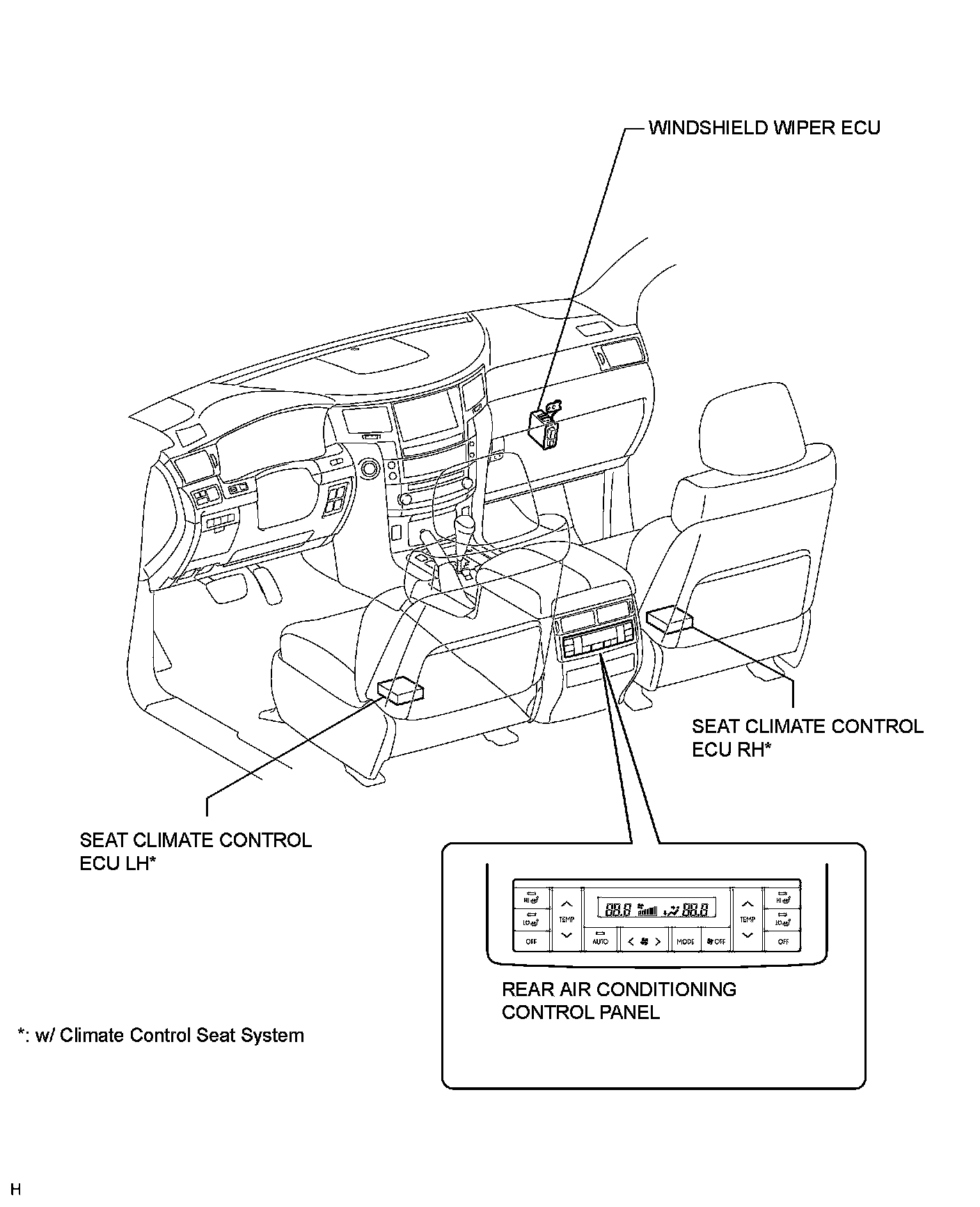

NETWORKING: LIN COMMUNICATION SYSTEM: PARTS LOCATION

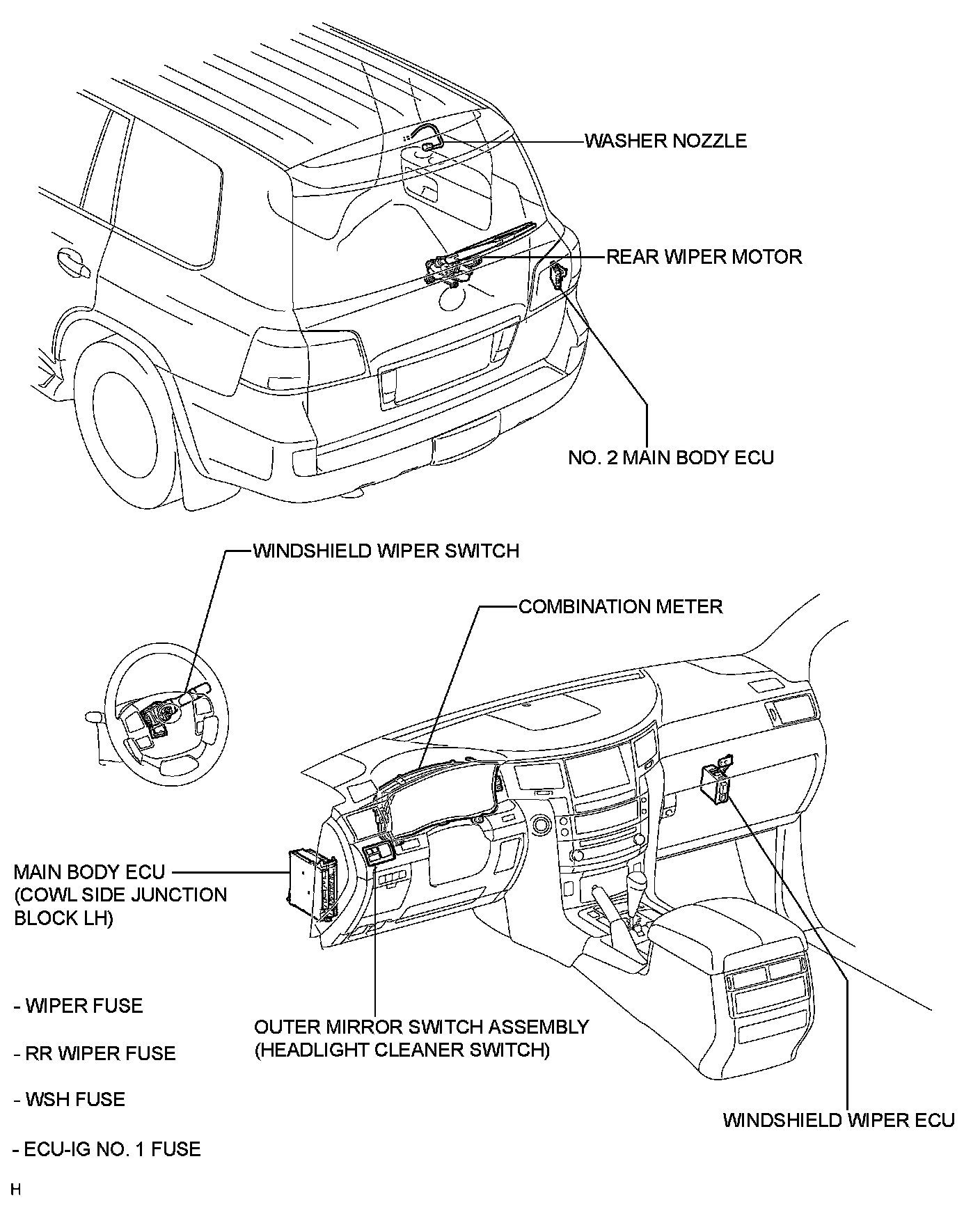

WIPER / WASHER: WIPER AND WASHER SYSTEM: PARTS LOCATION
