Installation

WIPER / WASHER: WIPER ECU: INSTALLATION

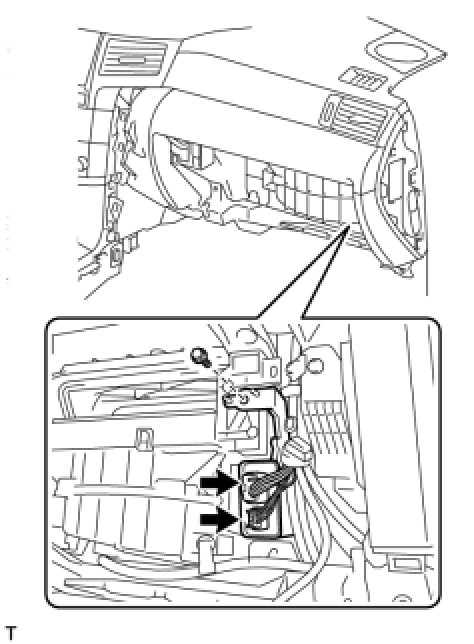

1. INSTALL WINDSHIELD WIPER ECU

(a) Install the windshield wiper ECU with the screw.





(b) Connect the 2 connectors.

2. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL Installation

3. INSTALL INSTRUMENT PANEL BOX DOOR KNOB Installation

4. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY

(a) Install the front passenger side knee airbag assembly Installation.
