Power Window: Notes — 2011 Lexus LX 570 Service Manual ~ LEMON Manuals

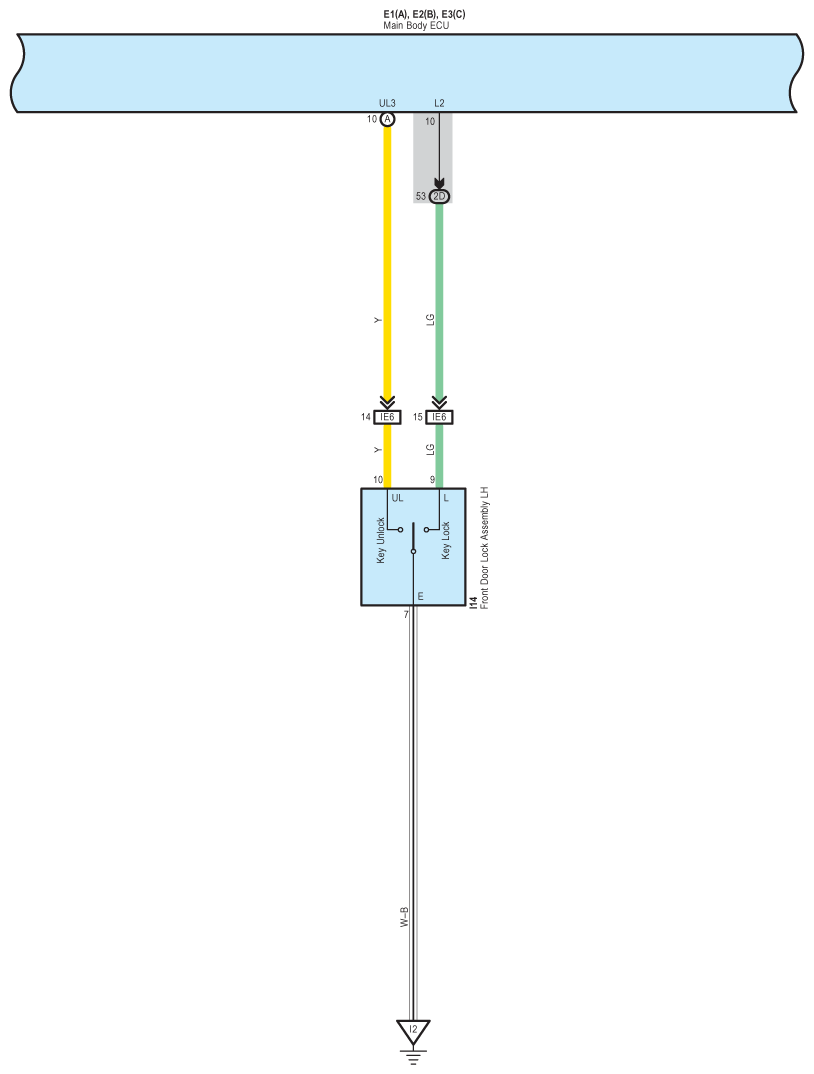

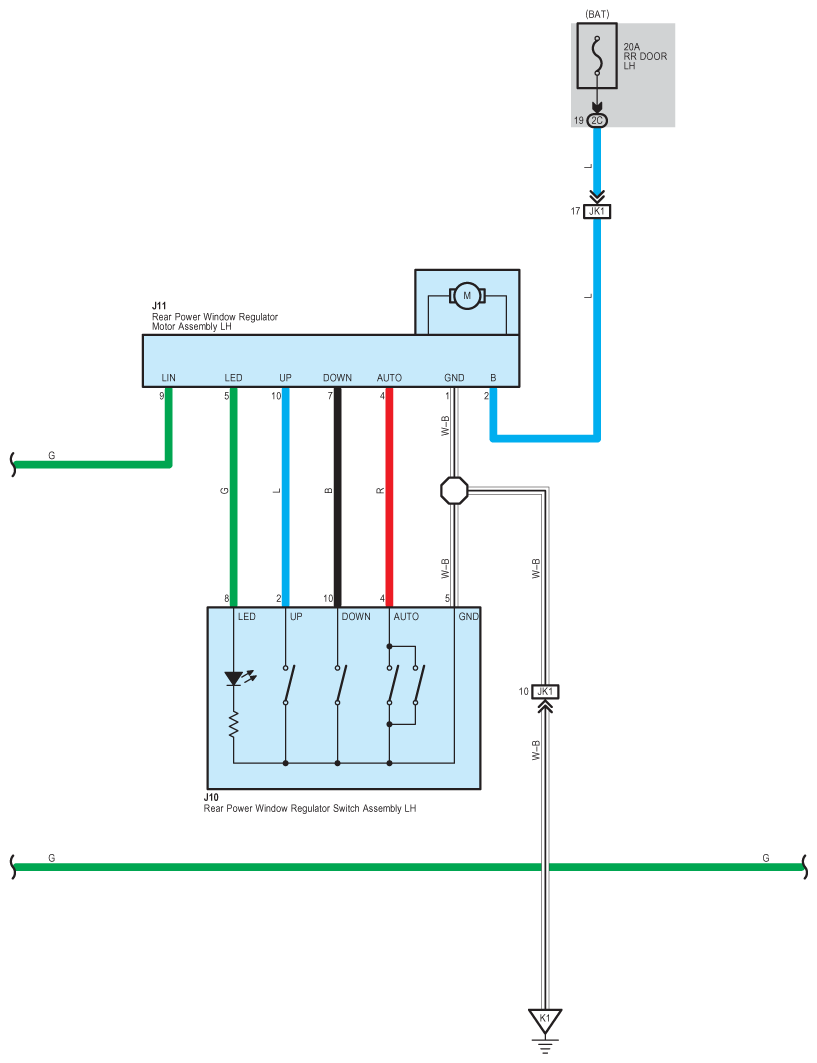

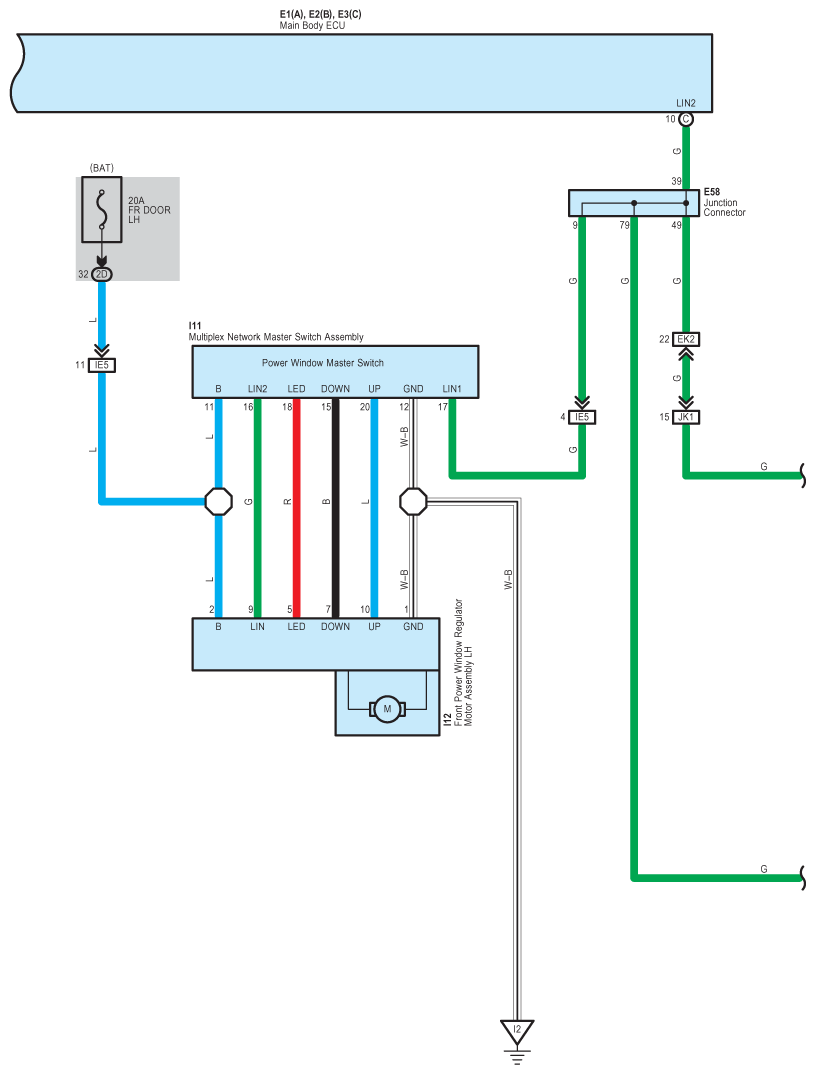

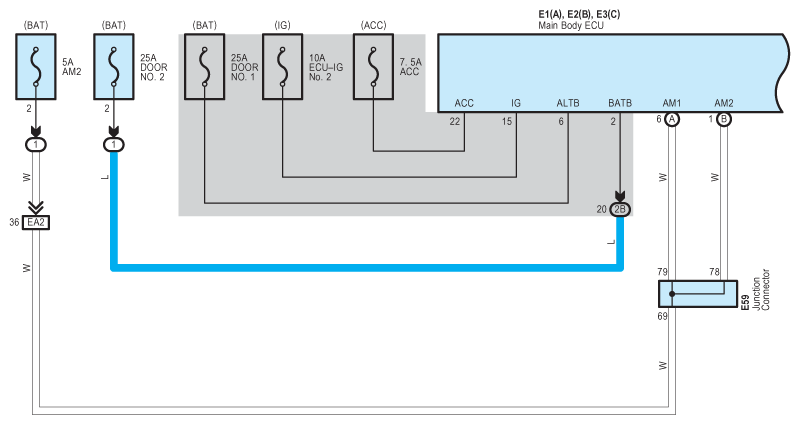

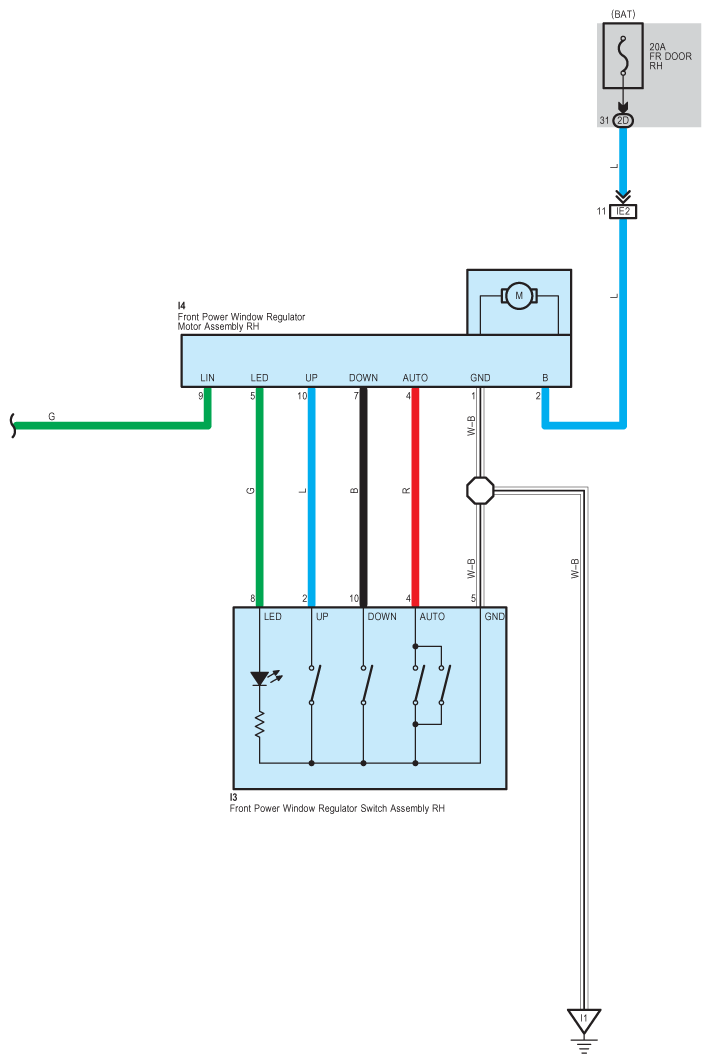

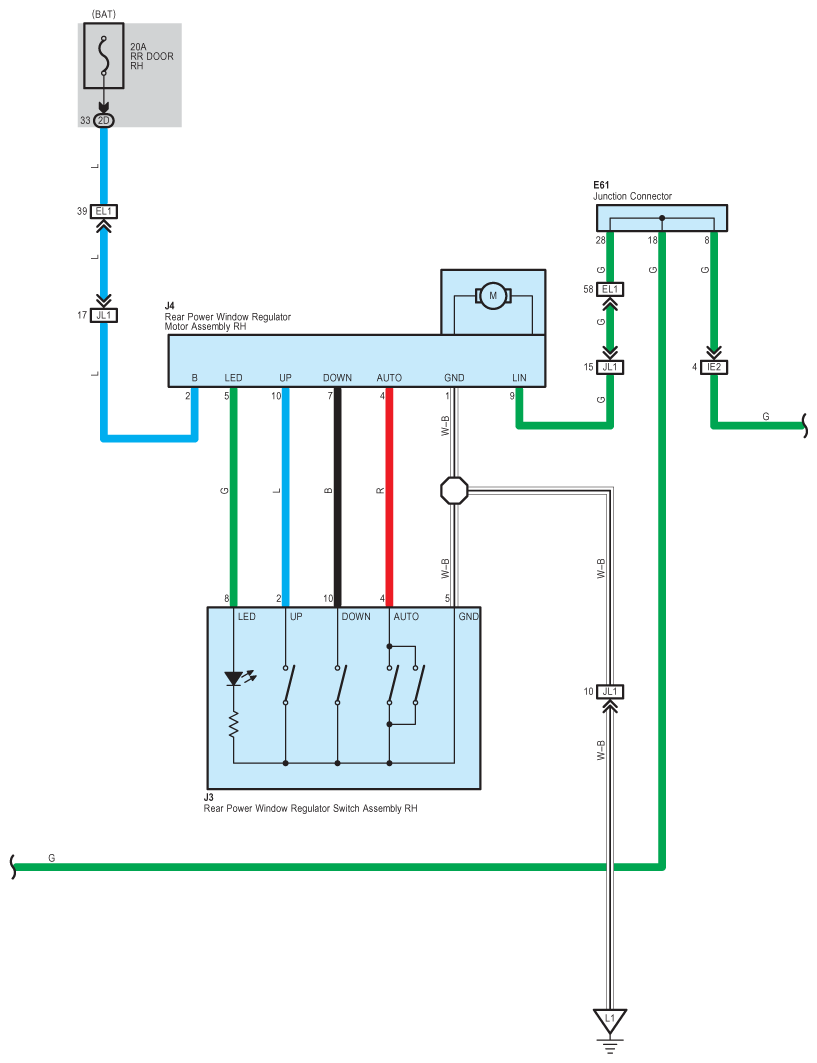

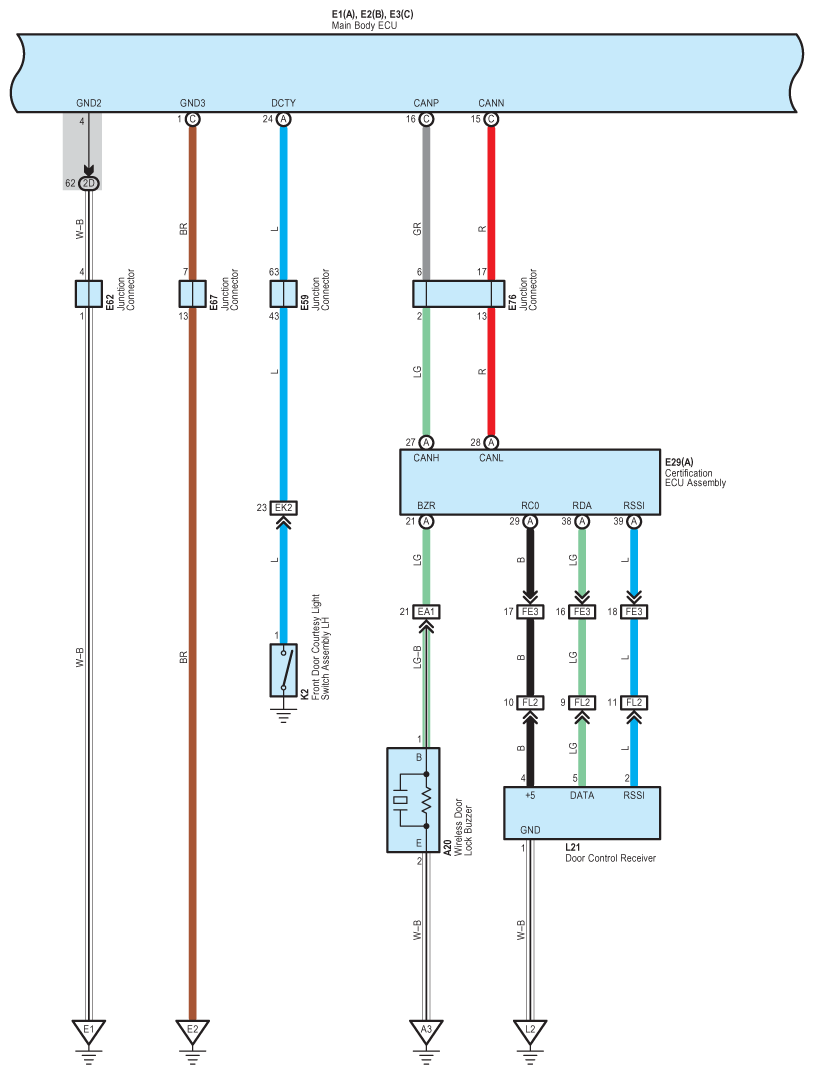

Fig 1: Power Window - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Window - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Power Window - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Power Window - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Power Window - Circuit Diagram (5 Of 7)

Fig 6: Power Window - Circuit Diagram (6 Of 7)

Fig 7: Power Window - Circuit Diagram (7 Of 7)
