Crawl Switch: Components: Illustration

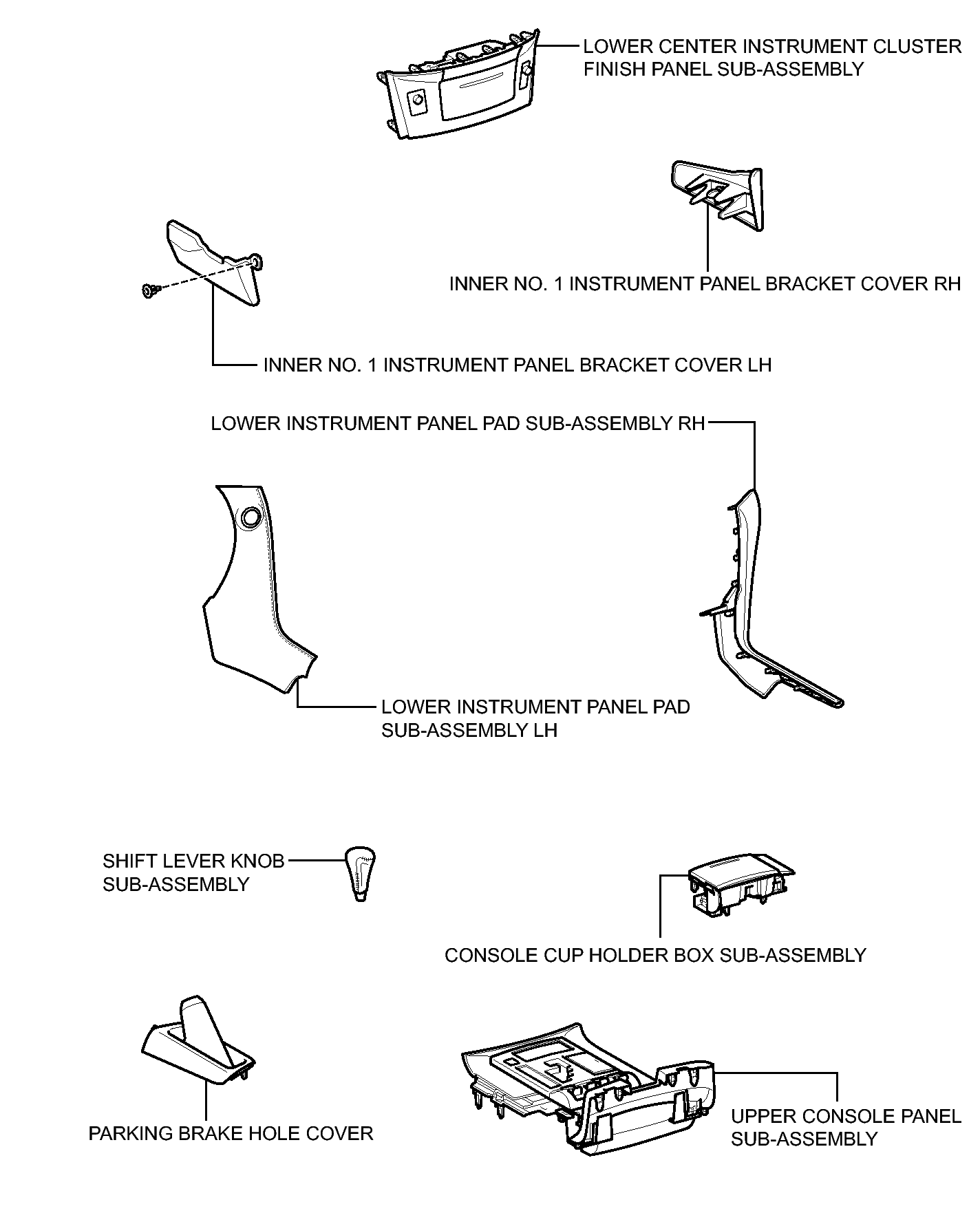

Fig 1: Identifying CRAWL Switch Replacement Components (1 Of 2)
GTY108864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

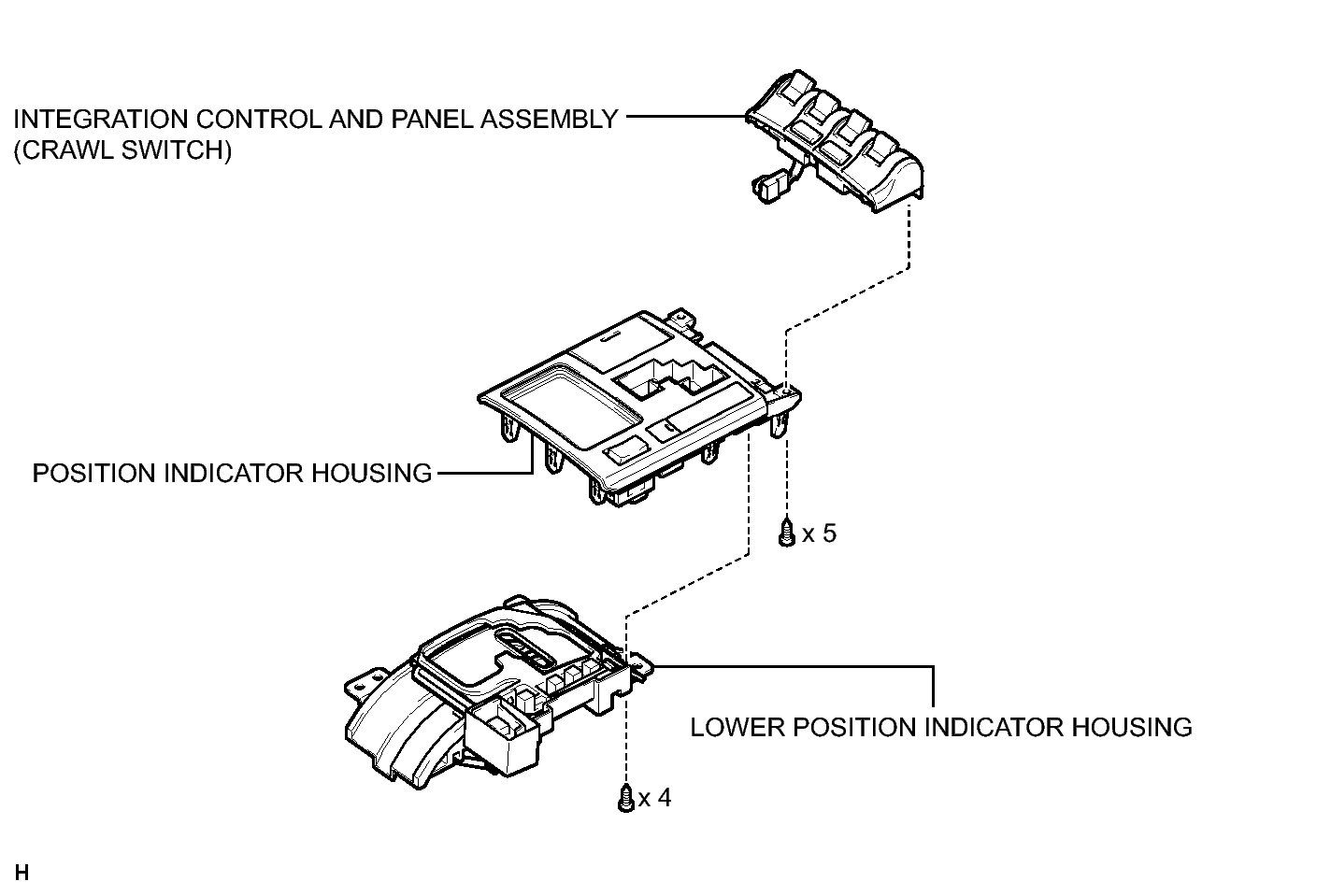

Fig 1: Identifying CRAWL Switch Replacement Components (2 Of 2)
GTY125565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
