Installation (08/2011 - ): Installation

1. Install the speed sensor with the bolt.
   Fig 1: Identifying Front Speed Sensor LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Make sure there are no pieces of iron or other foreign matter attached to the sensor tip.
   • While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip.
   • After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
   • Make sure there is no foreign matter attached to the speed sensor rotor.

1. Connect the 2 connectors.

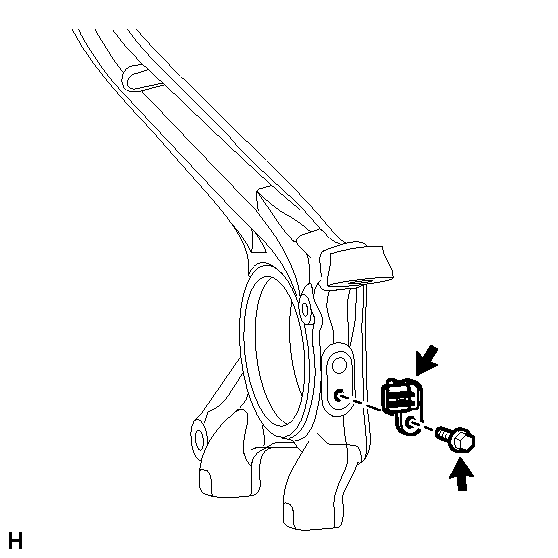

   Fig 2: Locating Connectors And Harness Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the harness clamp with the bolt.

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

   NOTE:

   • When installing the clamp, do not twist the wire harness.
   • Make sure the clamp rotation stopper touches the installation position.
3. Install the 2 harness clamps with the 2 bolts.

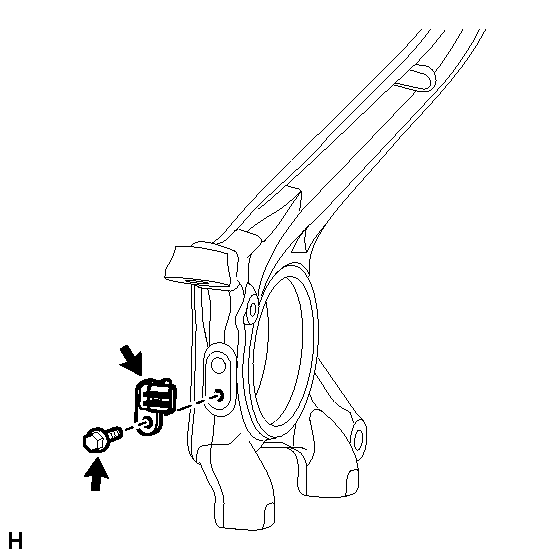

   Fig 3: Locating Bolts And Harness Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

   NOTE:

   • When installing the clamps, do not twist the wire harness.
   • Make sure the clamp rotation stopper touches the installation position.
4. Install the harness clamp with the nut.
   Fig 4: Identifying Front Skid Control Sensor, Connector, Clamp, Bolt And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

   NOTE:

   • When installing the clamp, do not twist the wire harness.
   • Make sure the clamp rotation stopper touches the installation position.
5. Install the harness clamp with the bolt.

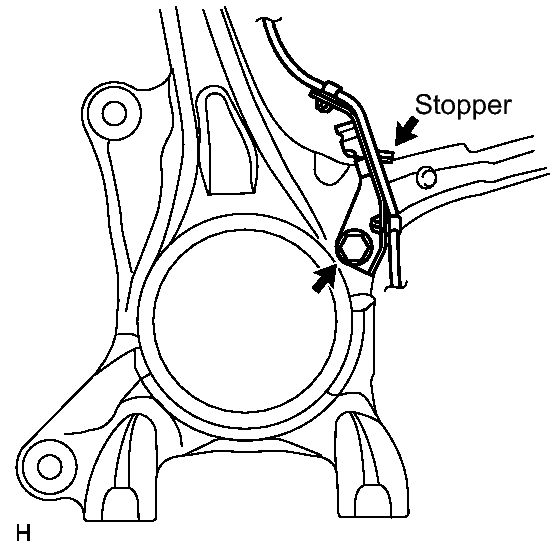

   Fig 5: Locating Harness Clamp Bolt And Stopper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

   NOTE:

   Install the bracket so that the rotation stopper touches the knuckle.

6. Connect the speed sensor connector.
   NOTE:

   Securely connect the connector.

1. Install the speed sensor with the bolt.
   Fig 6: Identifying Front Speed Sensor RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   • Make sure there are no pieces of iron or other foreign matter attached to the sensor tip part.
   • While inserting the speed sensor into the knuckle hole, do not strike or damage the sensor tip part.
   • After installing the speed sensor, make sure there is no clearance or foreign matter between the sensor stay part and the knuckle.
   • Make sure there is no foreign matter attached to the speed sensor rotor.

1. Install the skid control sensor clamp with the bolt (labeled A).

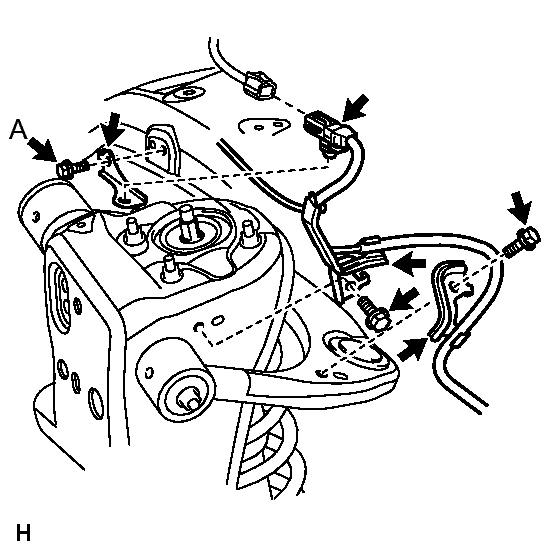

   Fig 7: Locating Skid Control Sensor Clamp Bolt And Skid Control Sensor Clamp Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   for bolt A

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

2. Attach the connector to the skid control sensor clamp and then connect the connector.
3. Install the 2 harness clamps with the 2 bolts.

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

   NOTE:

   • When installing the clamps, do not twist the wire harness.
   • Make sure the clamp rotation stopper touches the installation position.
4. Install the harness clamp with the bolt.
   Fig 8: Locating Connector And Harness Clamp Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

5. Connect the connector.
6. Install the harness clamp with the nut.
   Fig 9: Identifying Front Skid Control Sensor, Connector, Harness Clamp, Bolt And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

   NOTE:

   • When installing the clamp, do not twist the wire harness.
   • Make sure the clamp rotation stopper touches the installation position.
7. Install the harness clamp with the bolt.

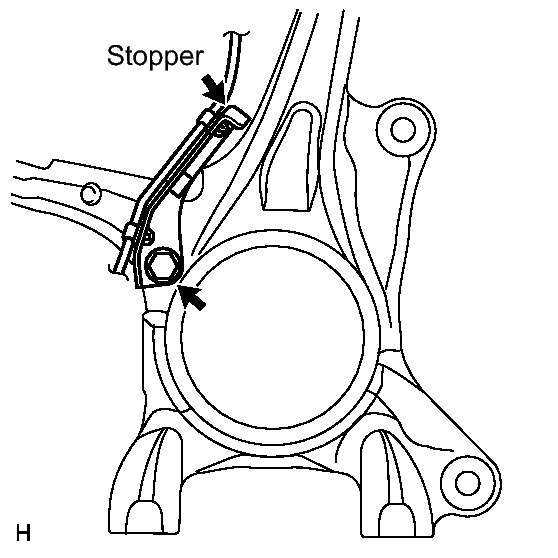

   Fig 10: Locating Harness Clamp Bolt And Stopper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)

   NOTE:

   Install the bracket so that the rotation stopper touches the knuckle.

8. Connect the speed sensor connector.
   NOTE:

   Securely connect the connector.

Torque: 131 N*m (1336 kgf*cm, 97 ft.*lbf)

1. Check the speed sensor signal. Refer to TEST MODE PROCEDURE .
