Front Wiper and Washer: Notes

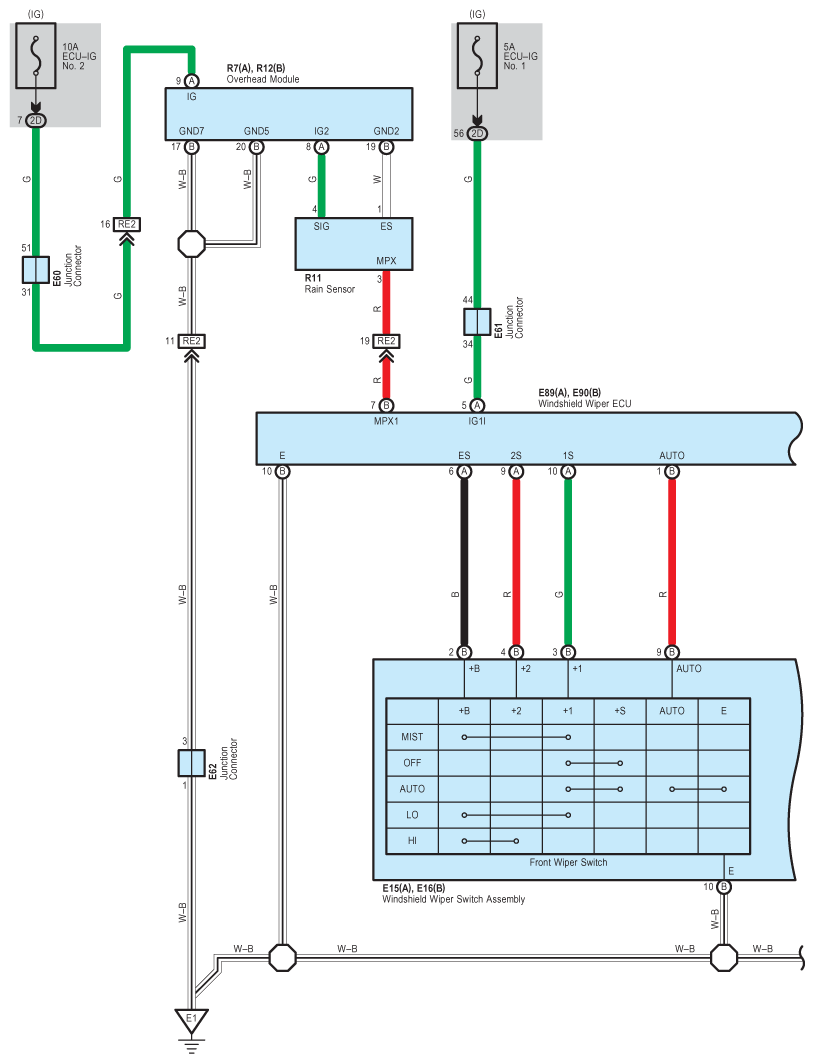

Fig 1: Front Wiper And Washer - Circuit Diagram (1 Of 5)
G07575640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

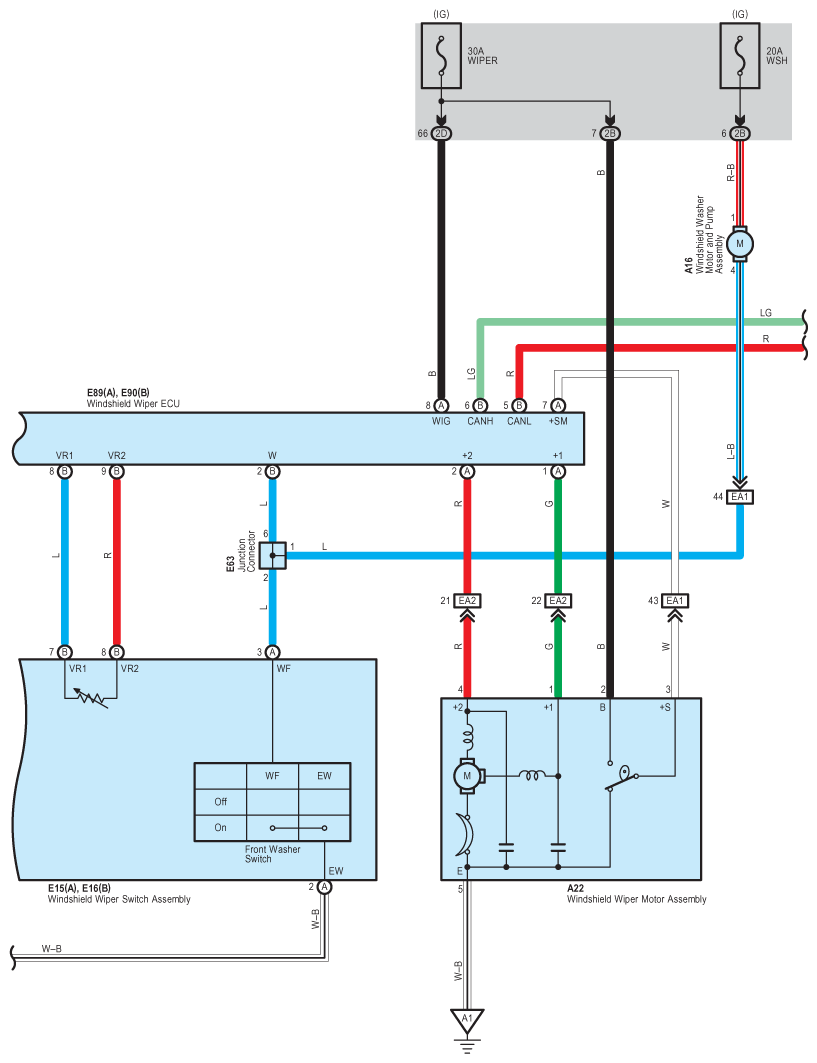

Fig 2: Front Wiper And Washer - Circuit Diagram (2 Of 5)
G07575641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

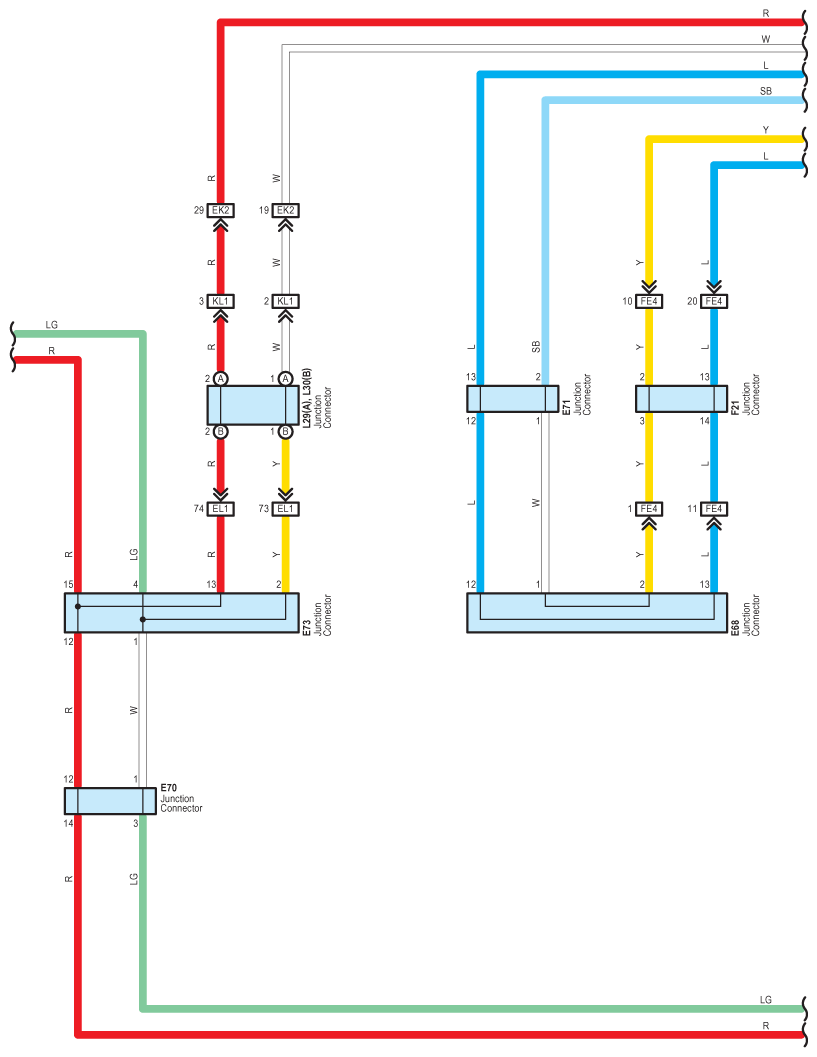

Fig 3: Front Wiper And Washer - Circuit Diagram (3 Of 5)
G07575642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

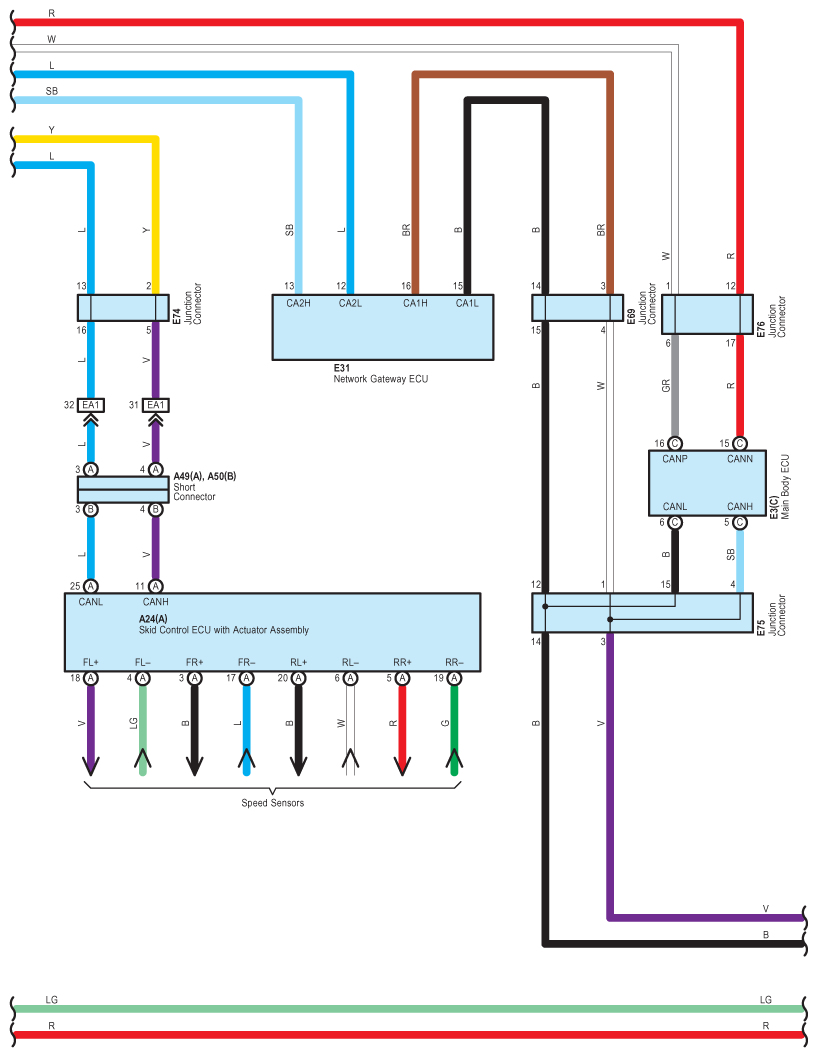

Fig 4: Front Wiper And Washer - Circuit Diagram (4 Of 5)
G07575643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

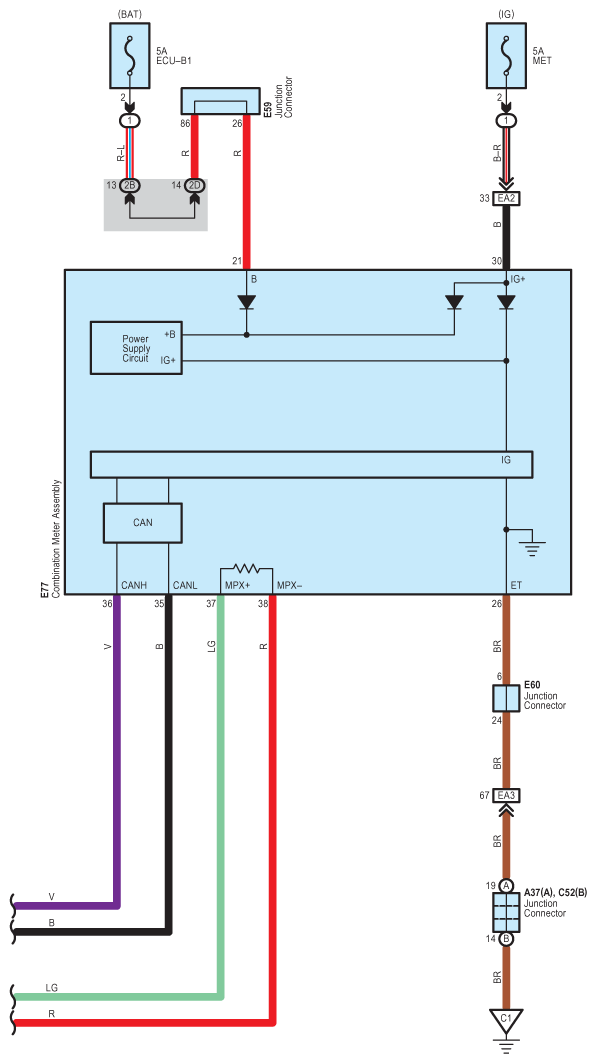

Fig 5: Front Wiper And Washer - Circuit Diagram (5 Of 5)
G07575644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
