Smart Access System with Push-Button Start, Theft Deterrent and Back Door Opener: Notes

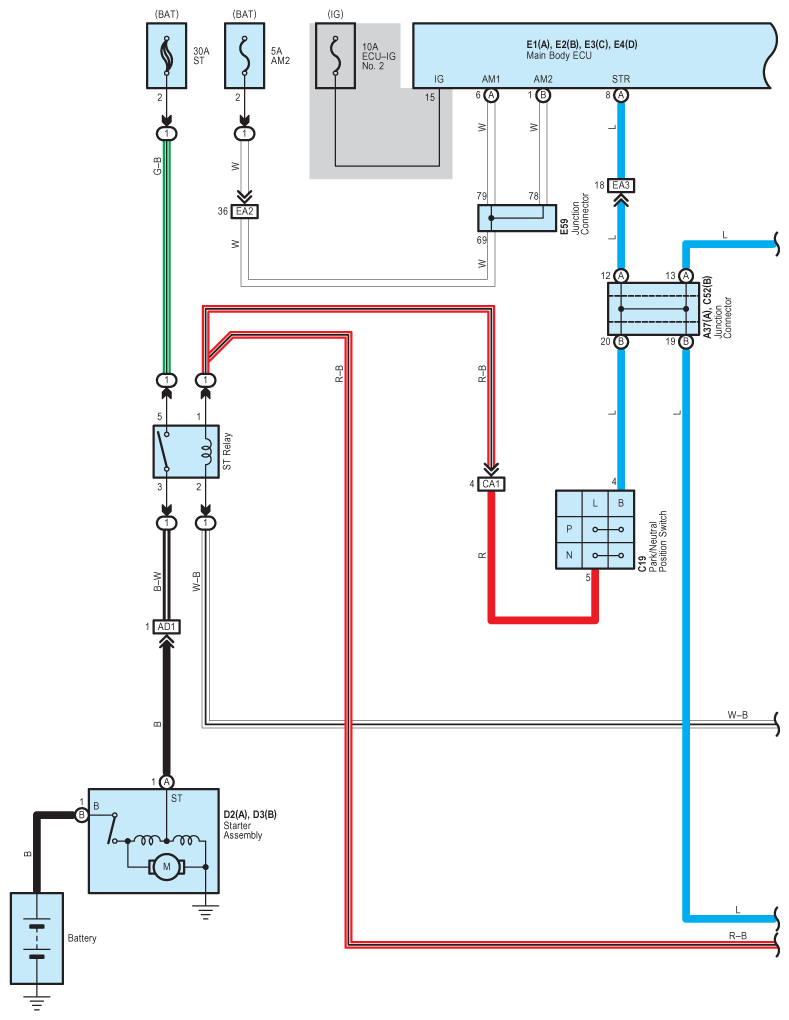

Fig 1: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (1 Of 17)
G07575452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

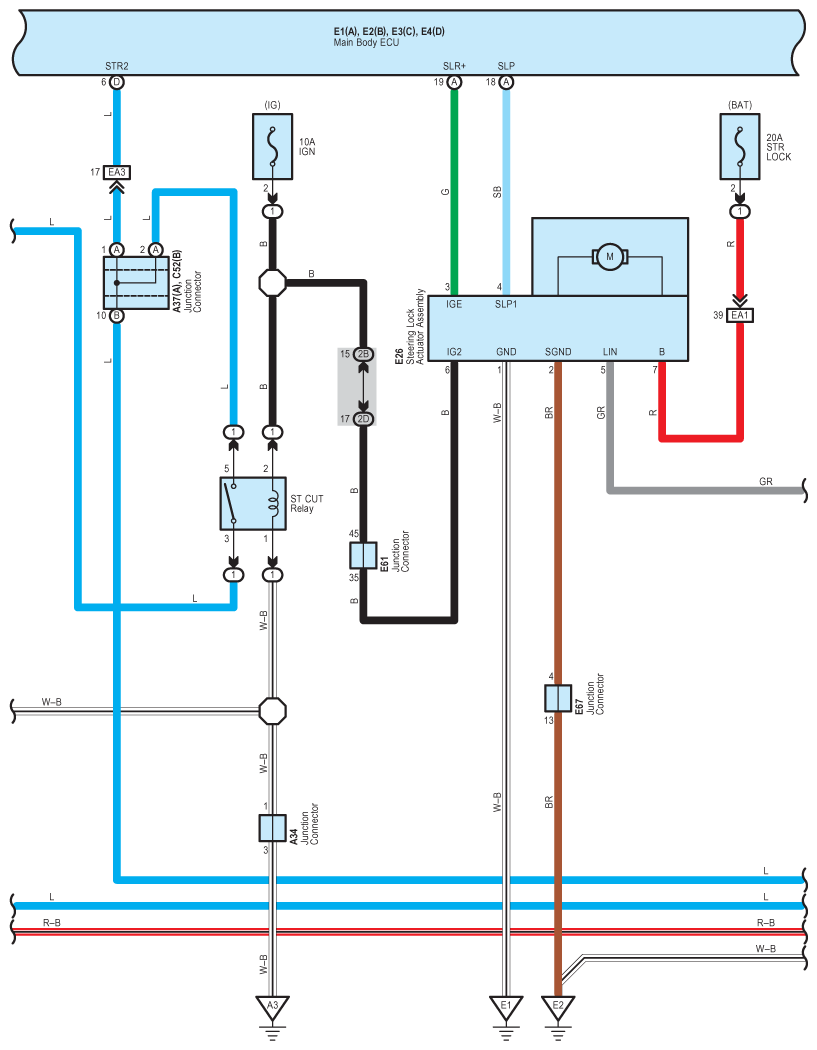

Fig 2: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (2 Of 17)
G07575453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

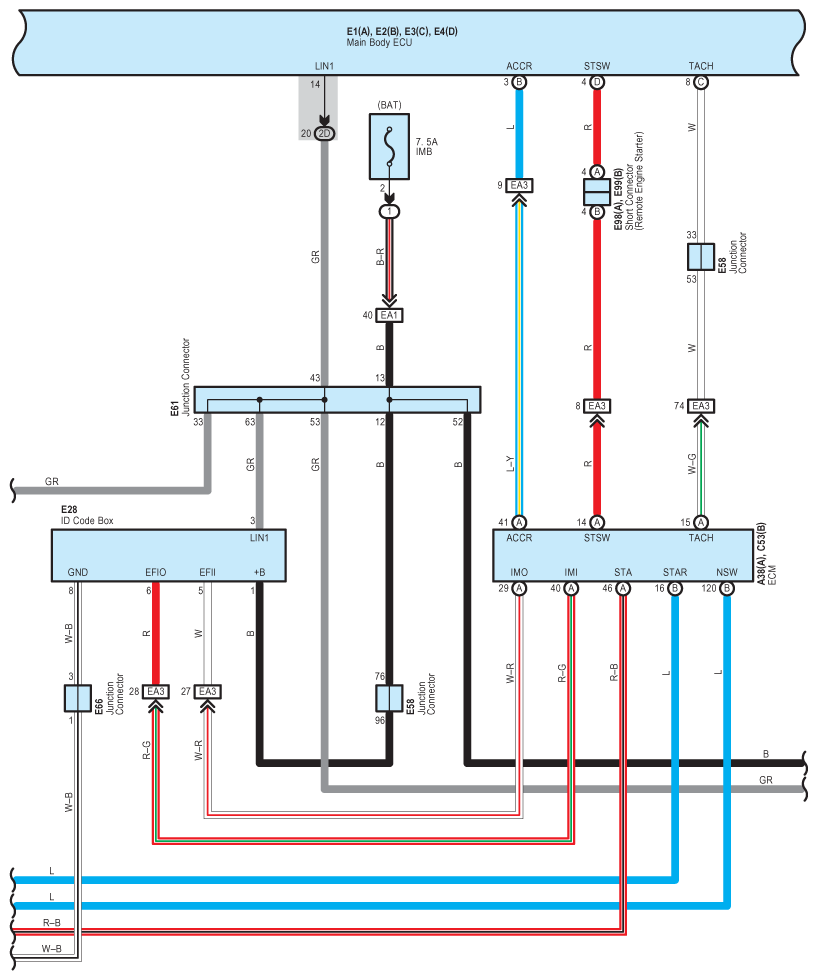

Fig 3: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (3 Of 17)
G07575454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

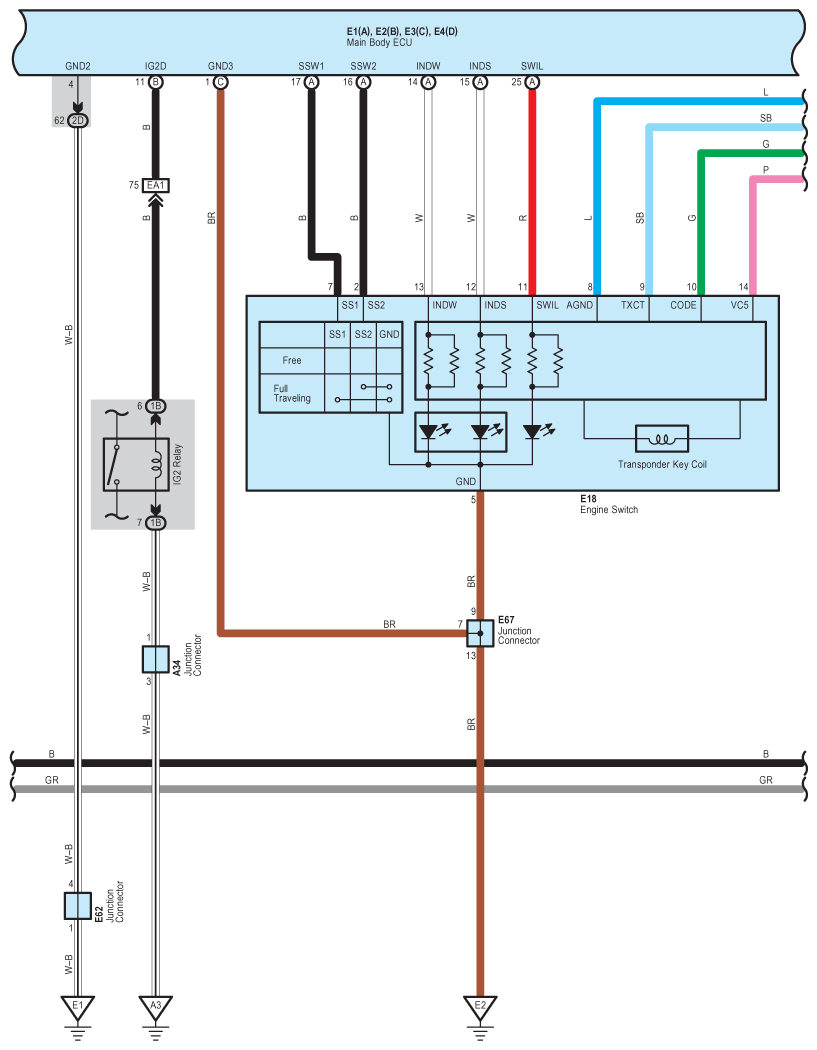

Fig 4: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (4 Of 17)
G07575455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

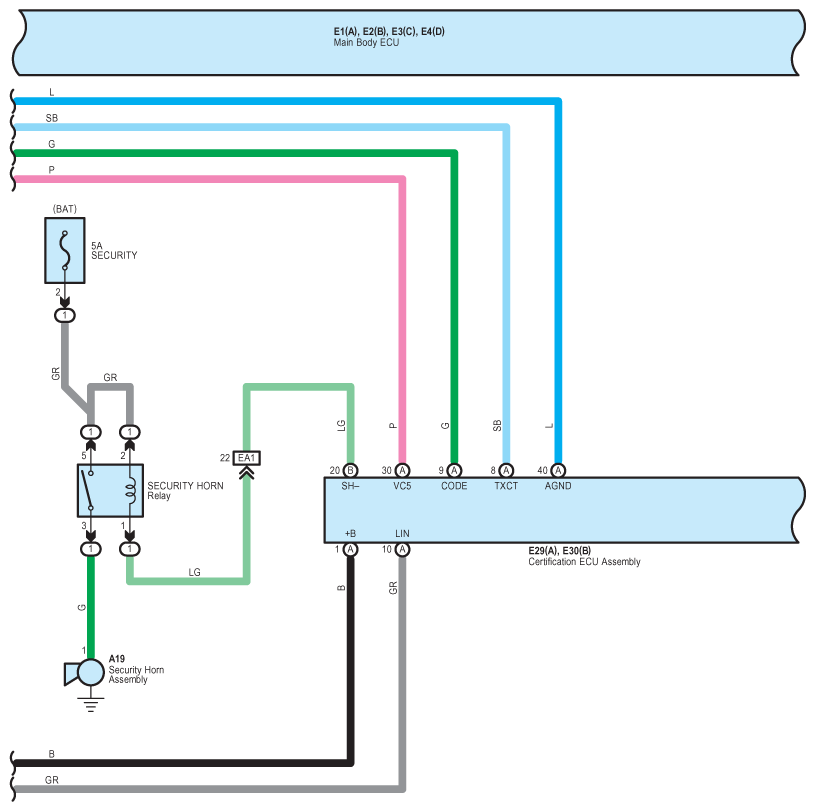

Fig 5: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (5 Of 17)
G07575456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

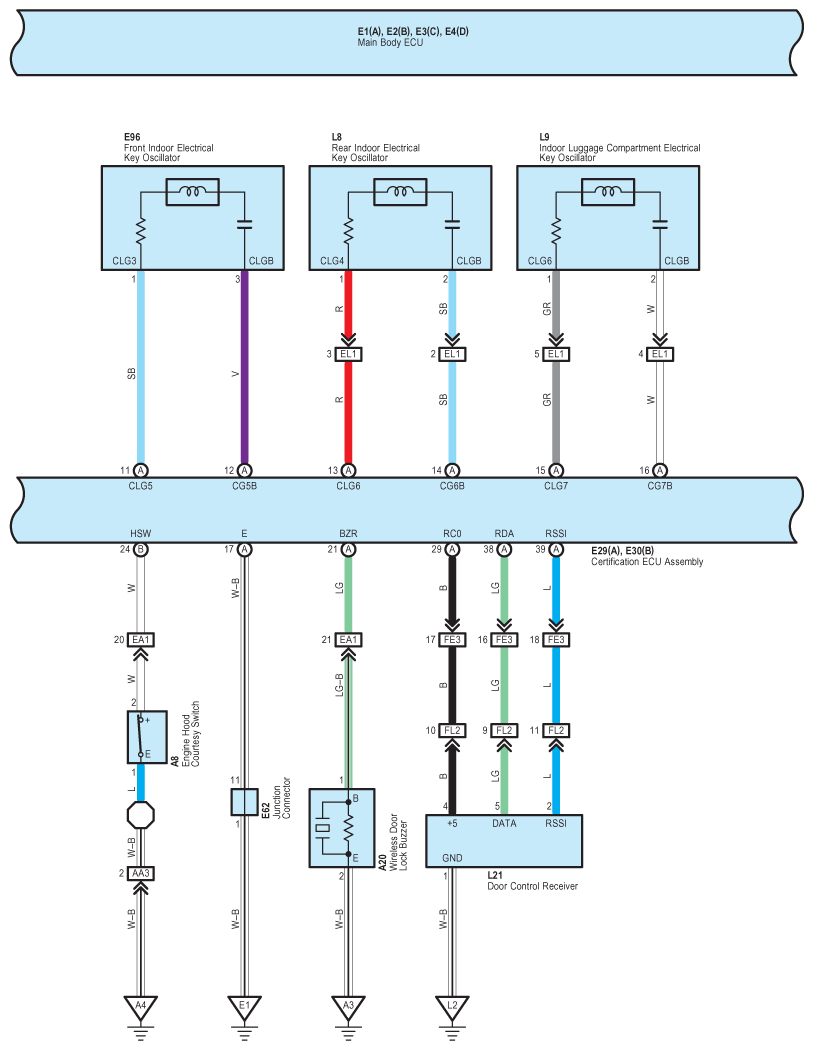

Fig 6: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (6 Of 17)
G07575457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

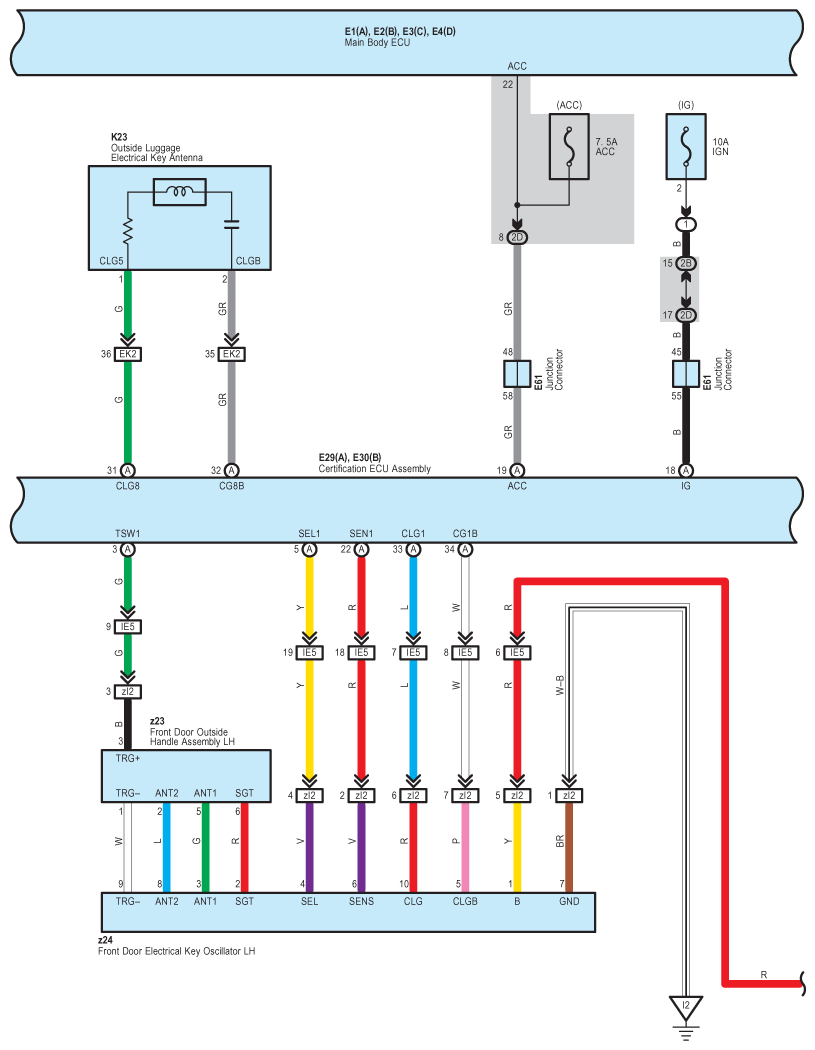

Fig 7: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (7 Of 17)
G07575458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

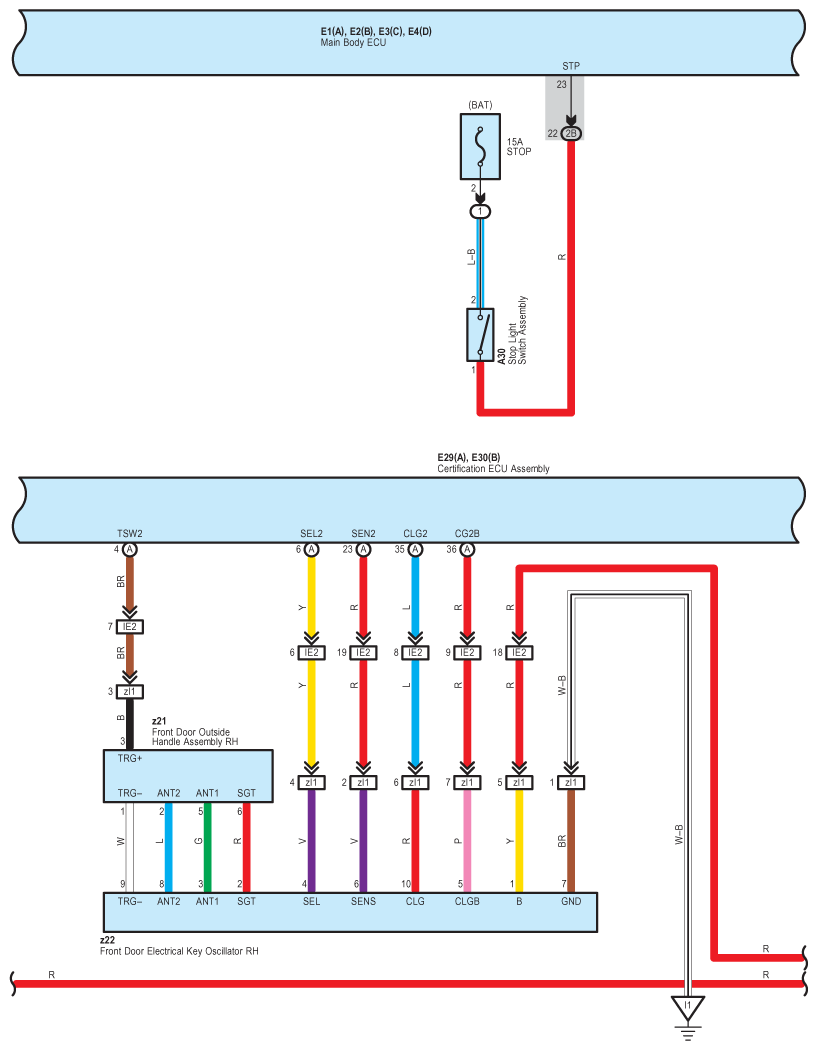

Fig 8: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (8 Of 17)
G07575459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

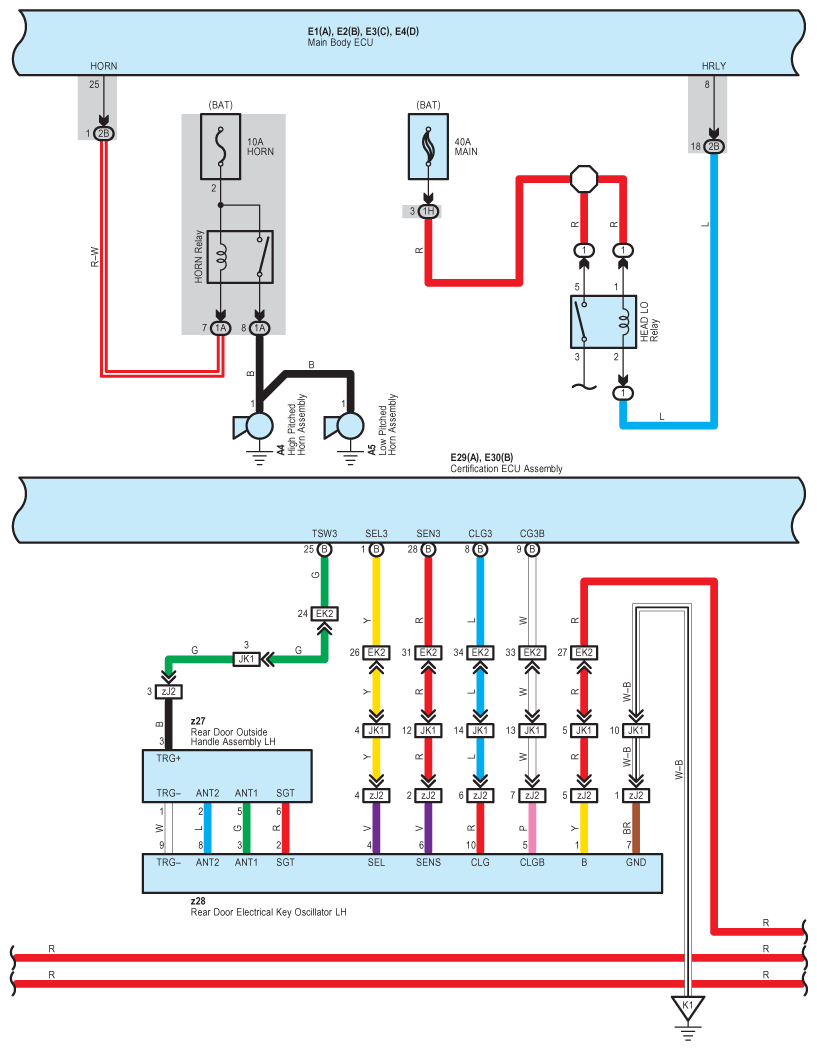

Fig 9: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (9 Of 17)
G07575460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

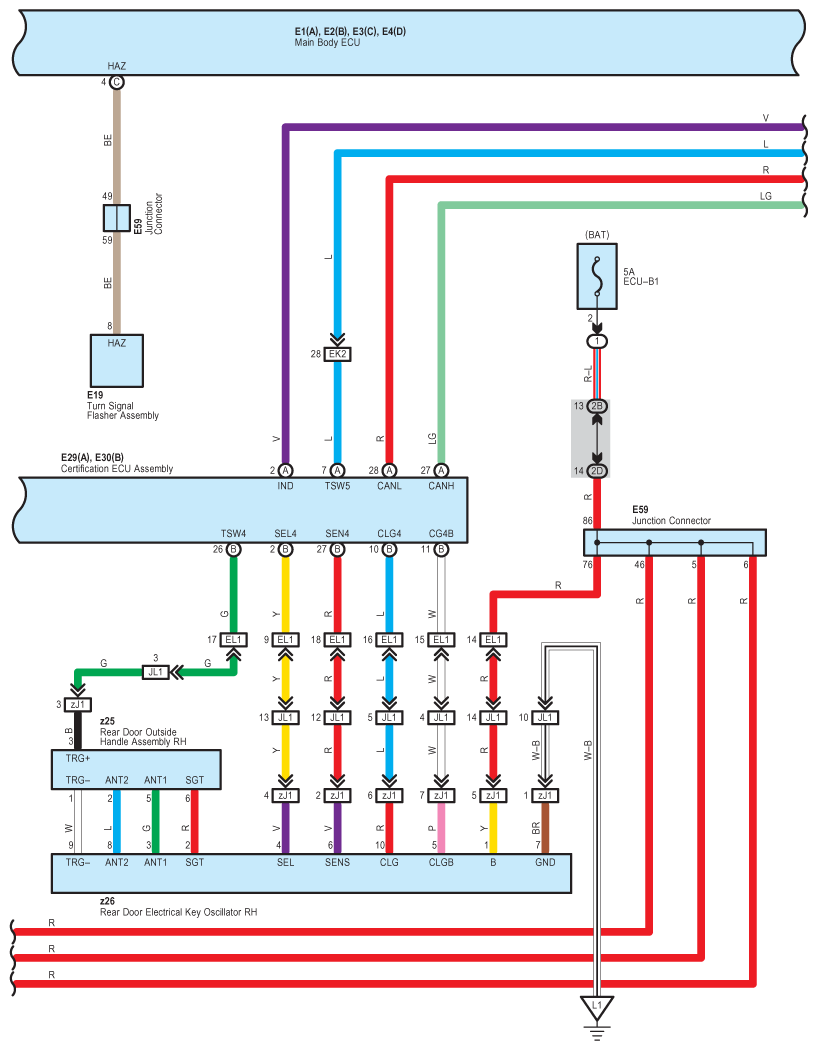

Fig 10: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (10 Of 17)
G07575461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

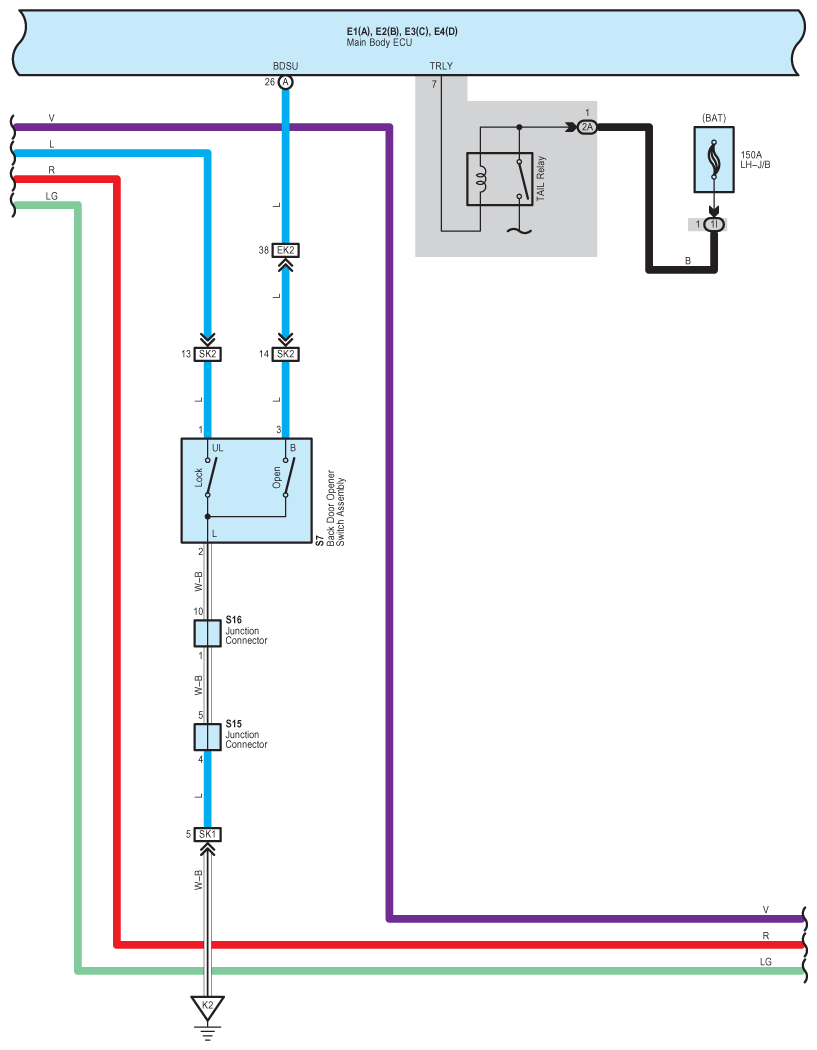

Fig 11: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (11 Of 17)
G07575462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

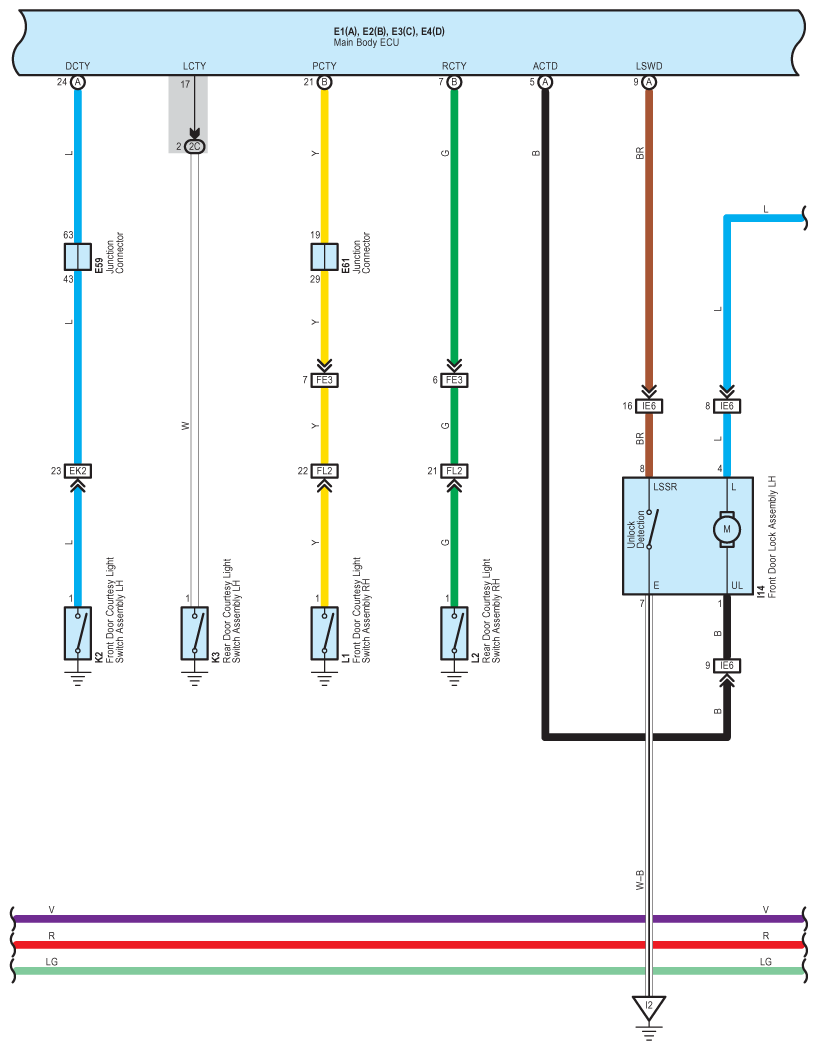

Fig 12: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (12 Of 17)
G07575463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

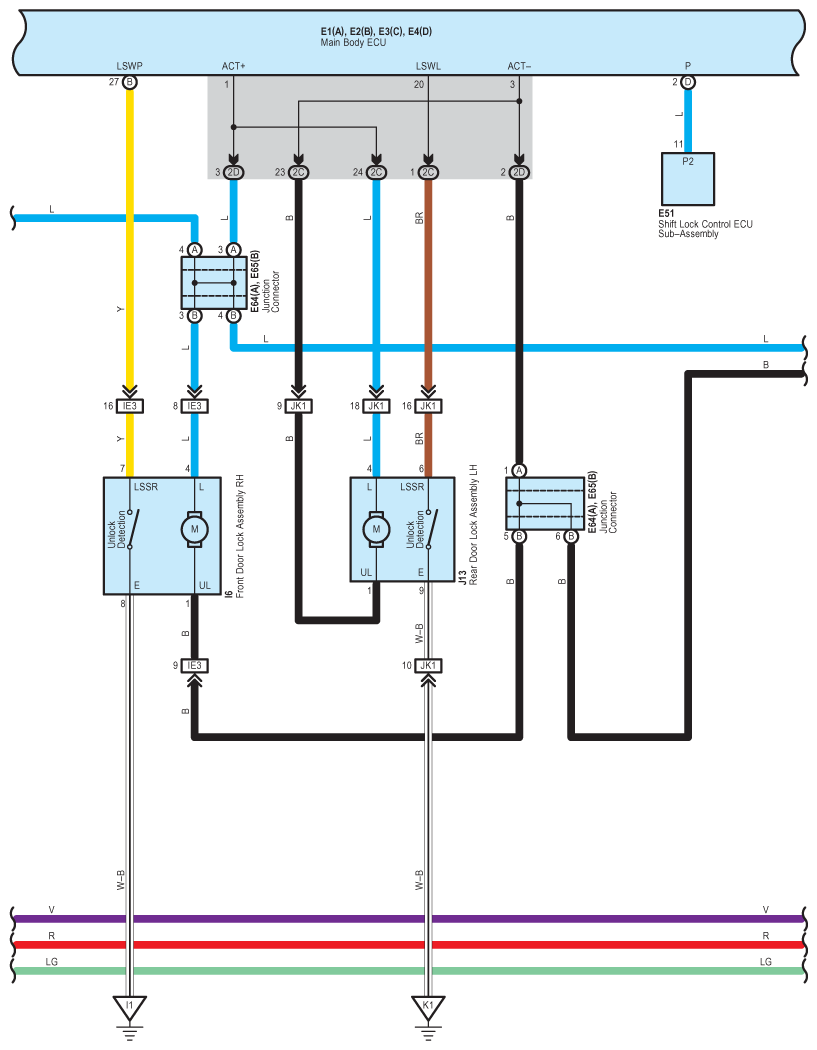

Fig 13: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (13 Of 17)
G07575464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

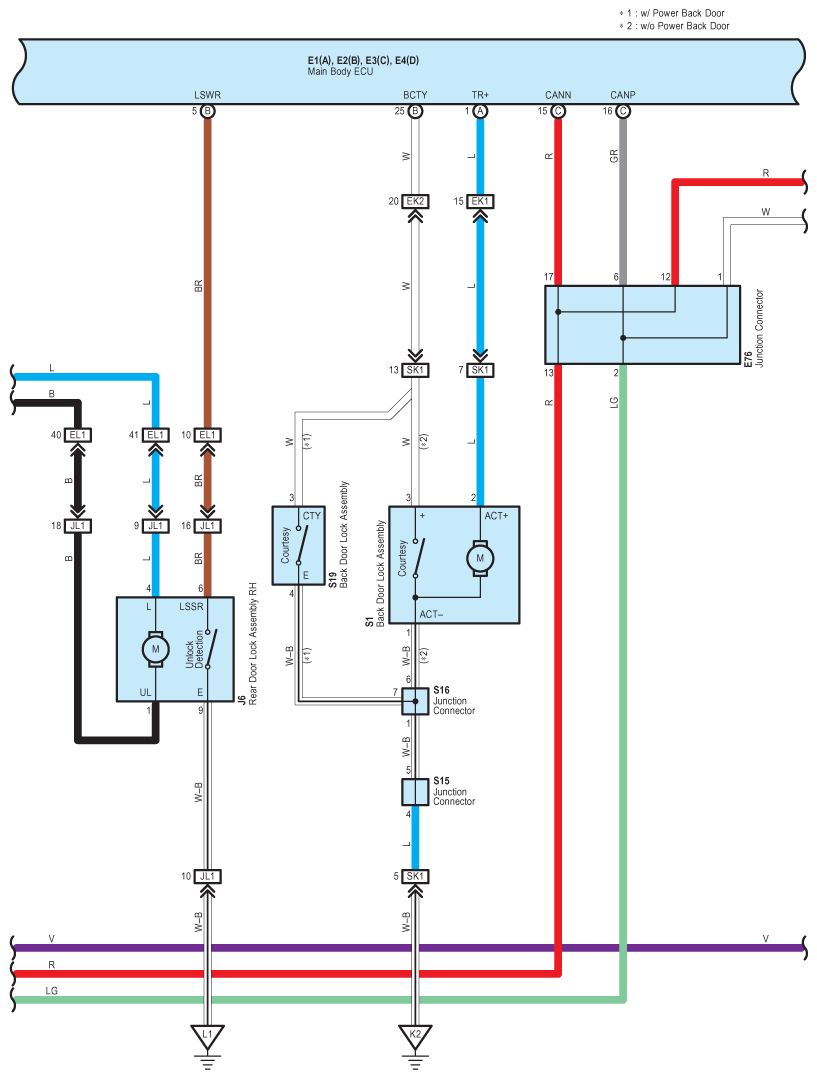

Fig 14: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (14 Of 17)
G07575465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

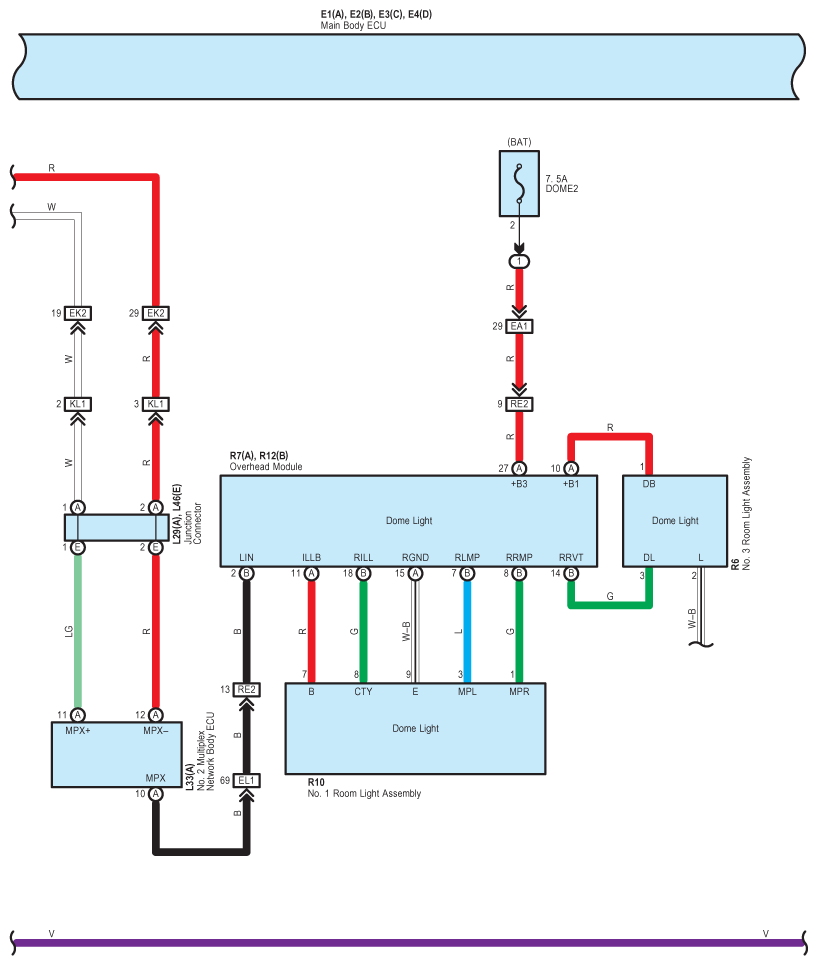

Fig 15: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (15 Of 17)
G07575466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

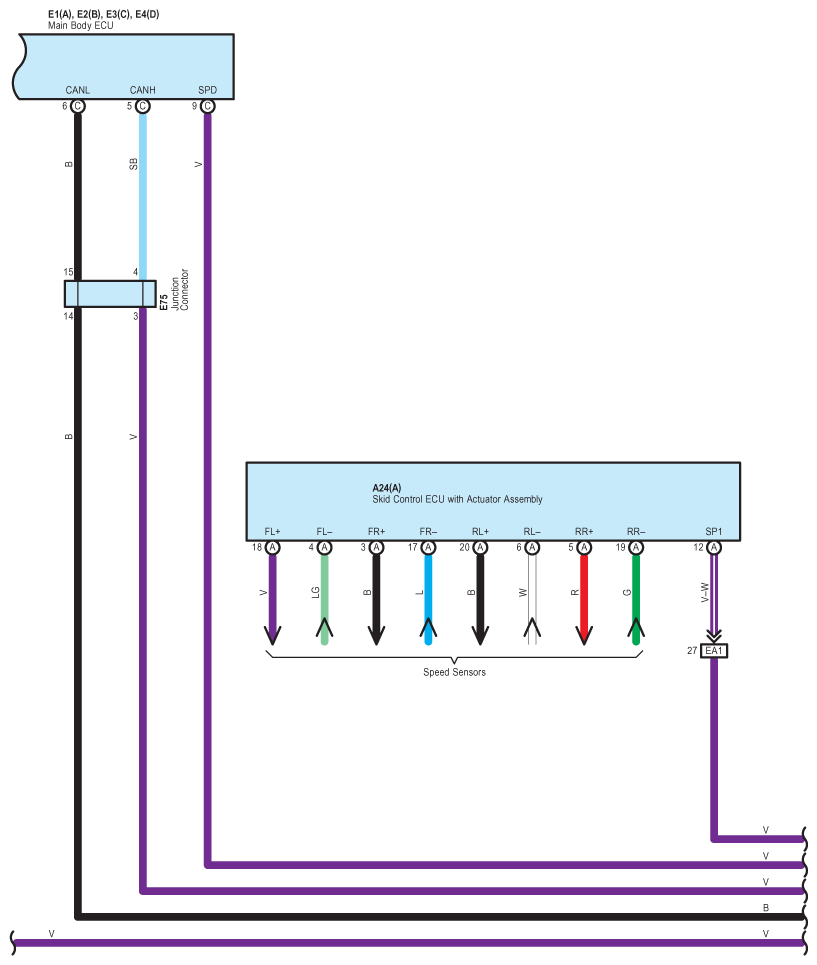

Fig 16: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (16 Of 17)
G07575467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

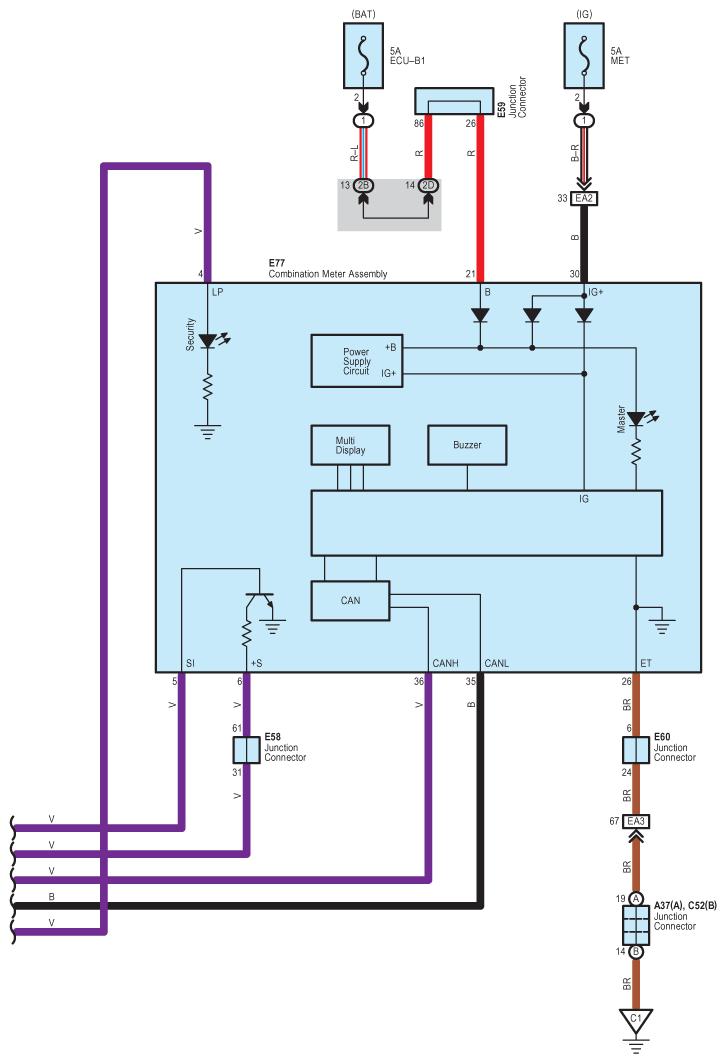

Fig 17: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (17 Of 17)
G07575468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
