4WD Control Ecu: Components: Illustration

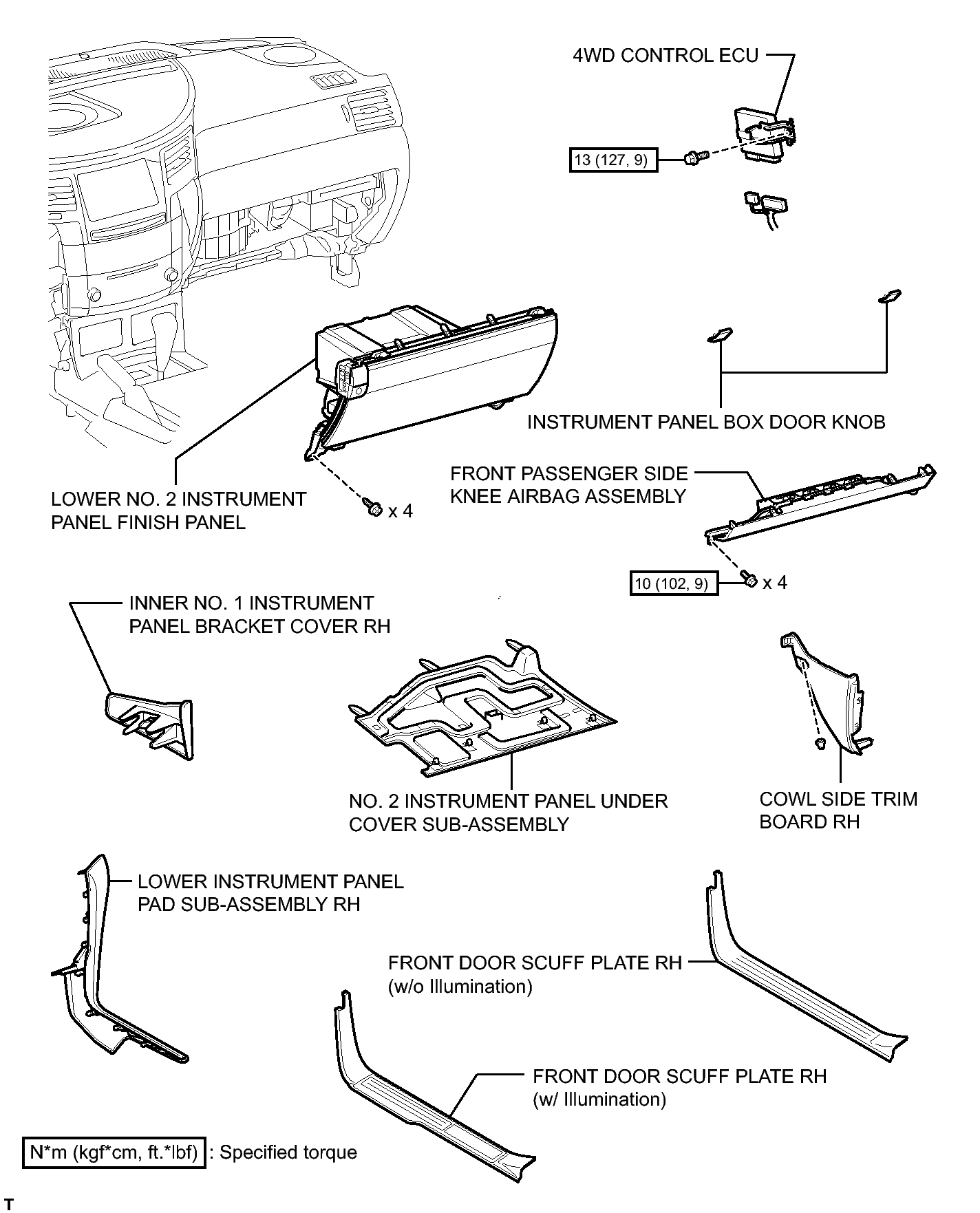

Fig 1: Identifying 4WD Control ECU Replacement Components With Torque Specifications
GTY141287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
