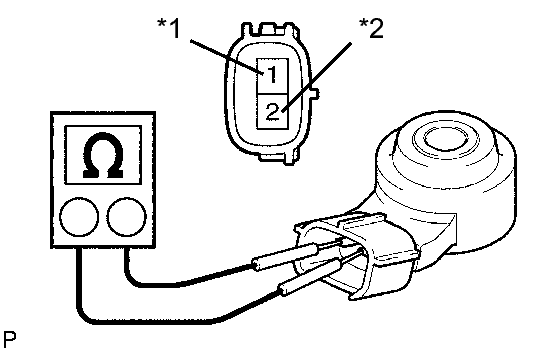

Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
| 1 (Ground) - 2 (Output) |
20°C (68°F) |
120 to 280 kΩ |
TEXT IN ILLUSTRATION
If the result is not as specified, replace the knock control sensor.
