VSC Off Switch: Installation: Installation

INSTALL VSC OFF SWITCH
1. Engage the 2 claws and install the VSC OFF switch.

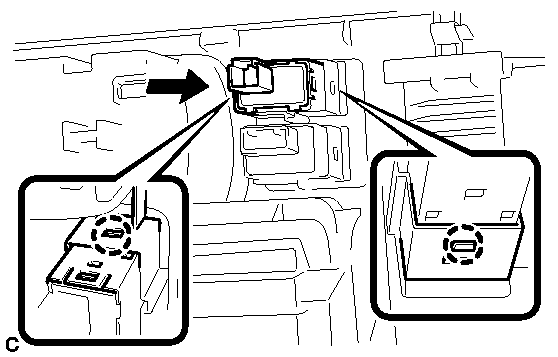

  Fig 1: 2 Claws And Install The VSC OFF Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 51
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY . Refer to INSTALLATION - Step 52
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
CHECK FOR WARNING LIGHT AND INDICATOR LIGHT
HINT:

Refer to TEST MODE PROCEDURE .
