Multiplex Communication System (CAN): Notes

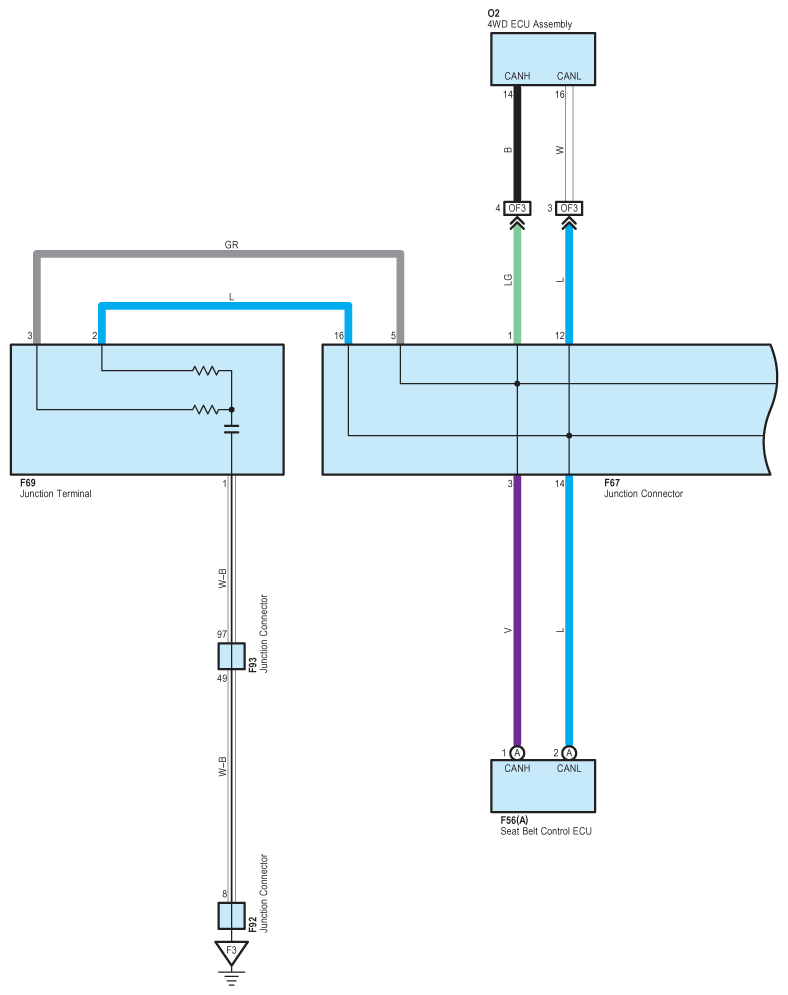

Fig 1: Multiplex Communication System (CAN) - Circuit Diagram (1 Of 5)
G07576047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

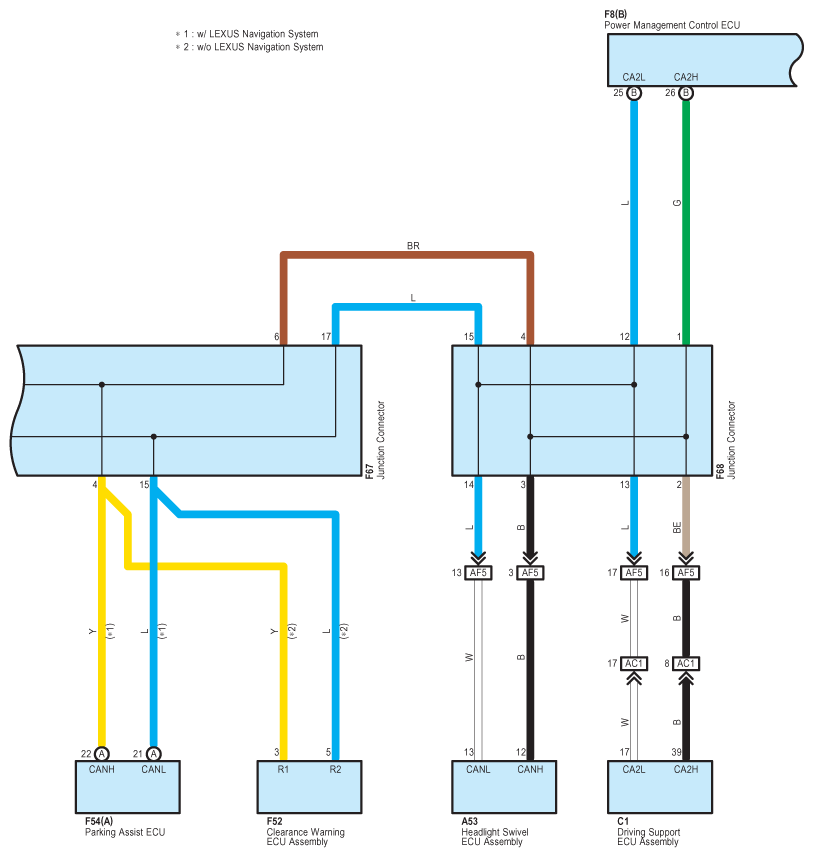

Fig 2: Multiplex Communication System (CAN) - Circuit Diagram (2 Of 5)
G07576048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

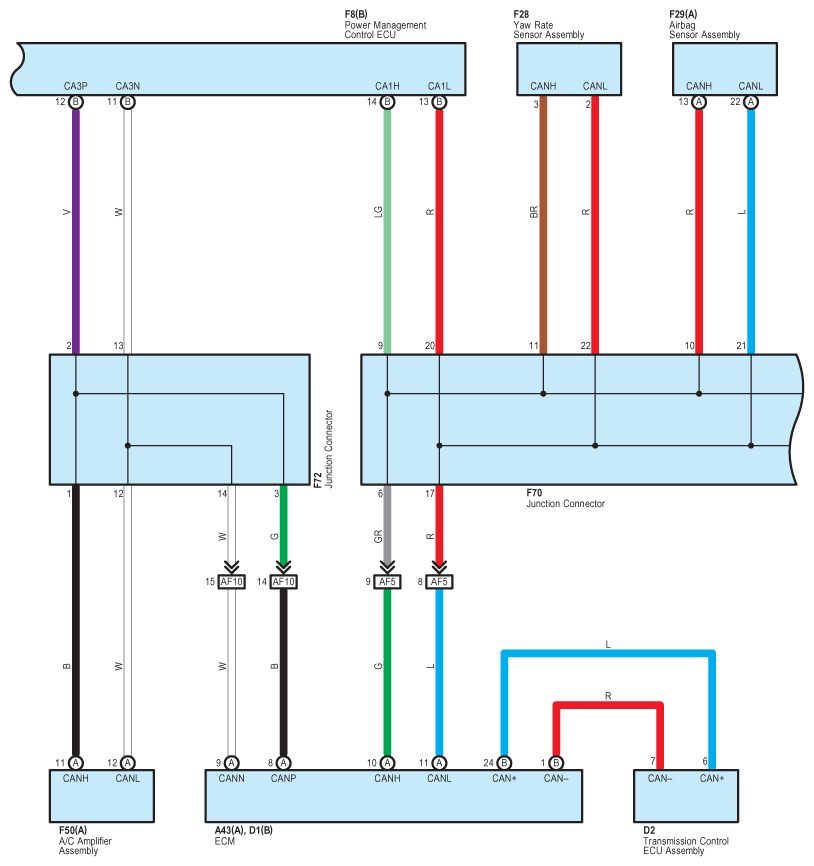

Fig 3: Multiplex Communication System (CAN) - Circuit Diagram (3 Of 5)
G07576049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

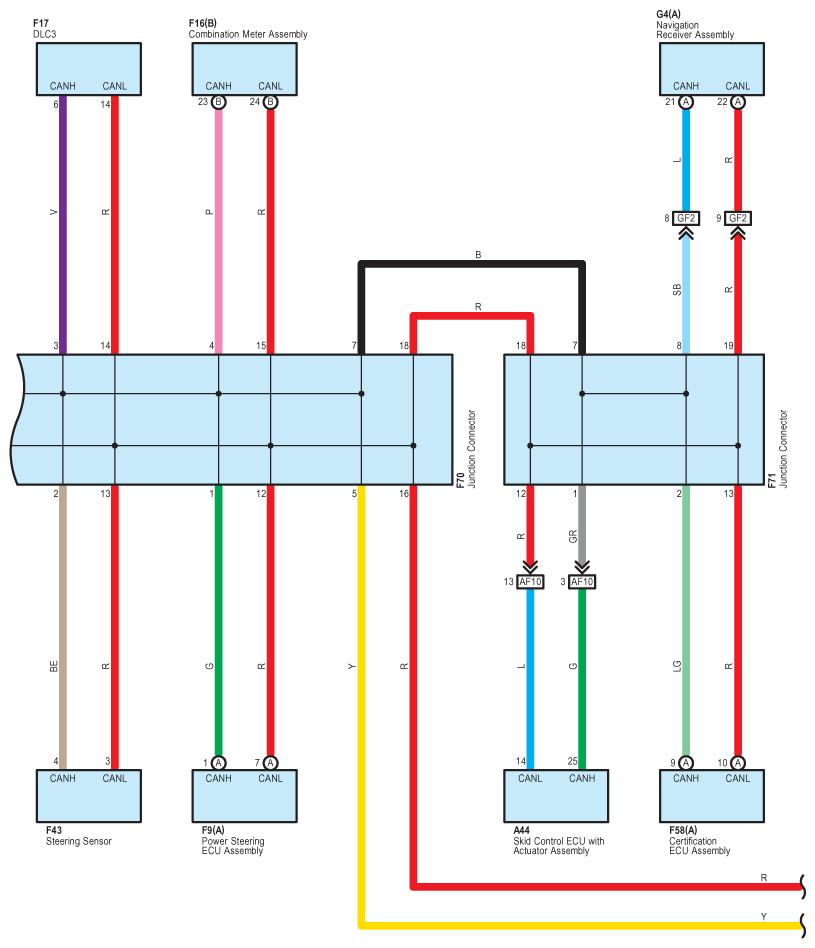

Fig 4: Multiplex Communication System (CAN) - Circuit Diagram (4 Of 5)
G07576050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

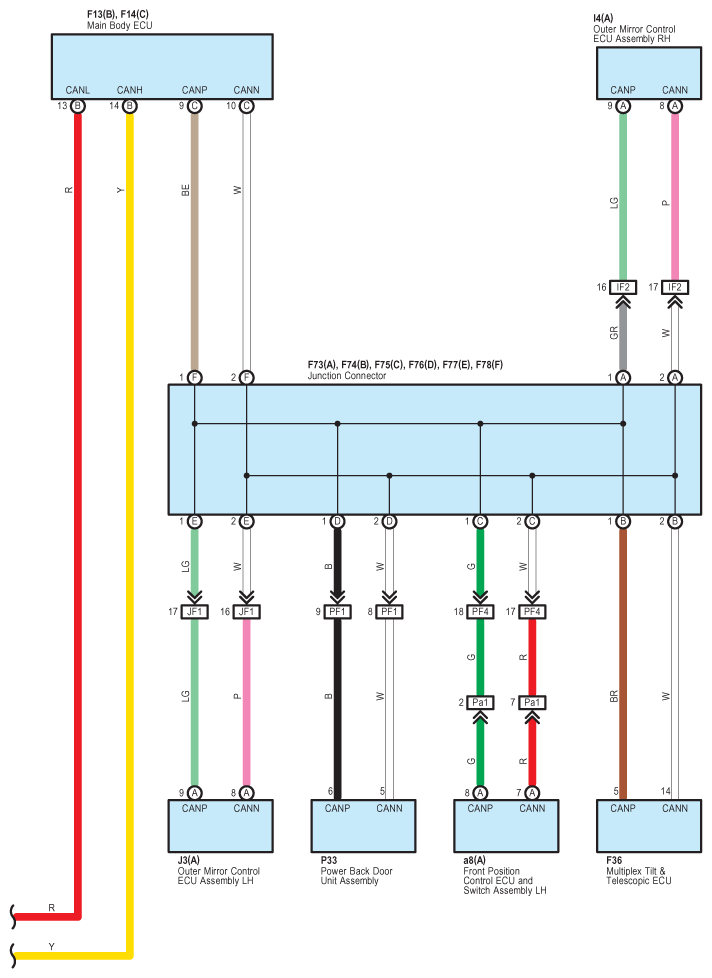

Fig 5: Multiplex Communication System (CAN) - Circuit Diagram (5 Of 5)
G07576051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
