Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor and Intuitive Parking Assist): Notes

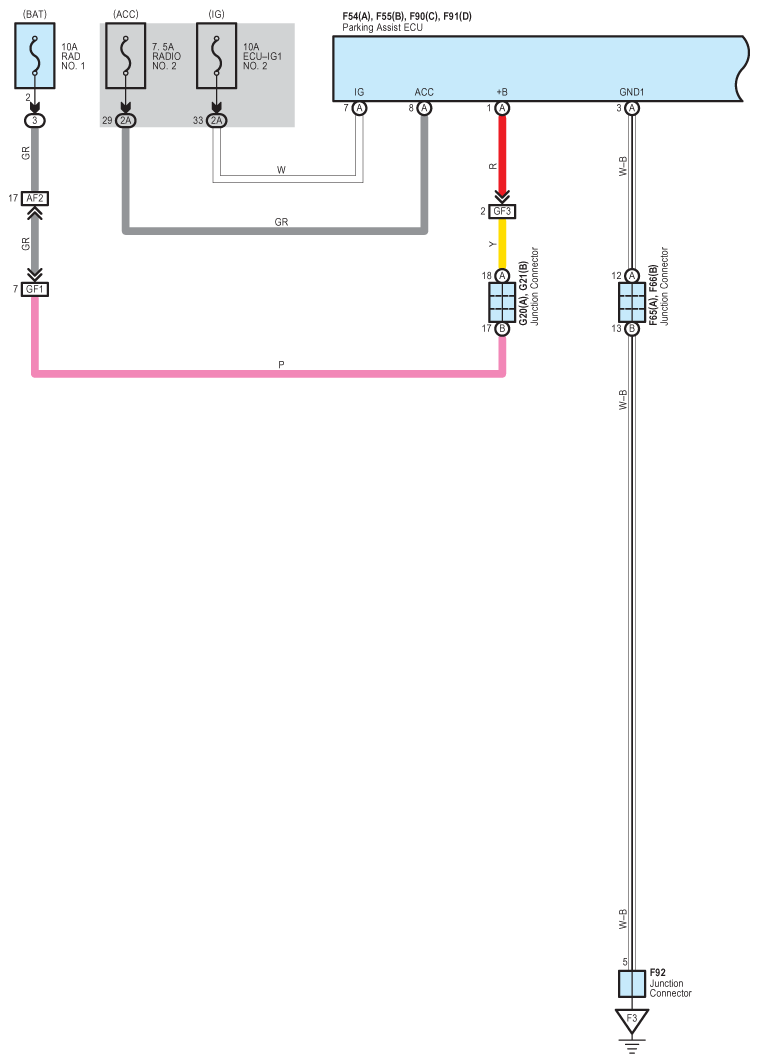

Fig 1: Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor And Intuitive Parking Assist) - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

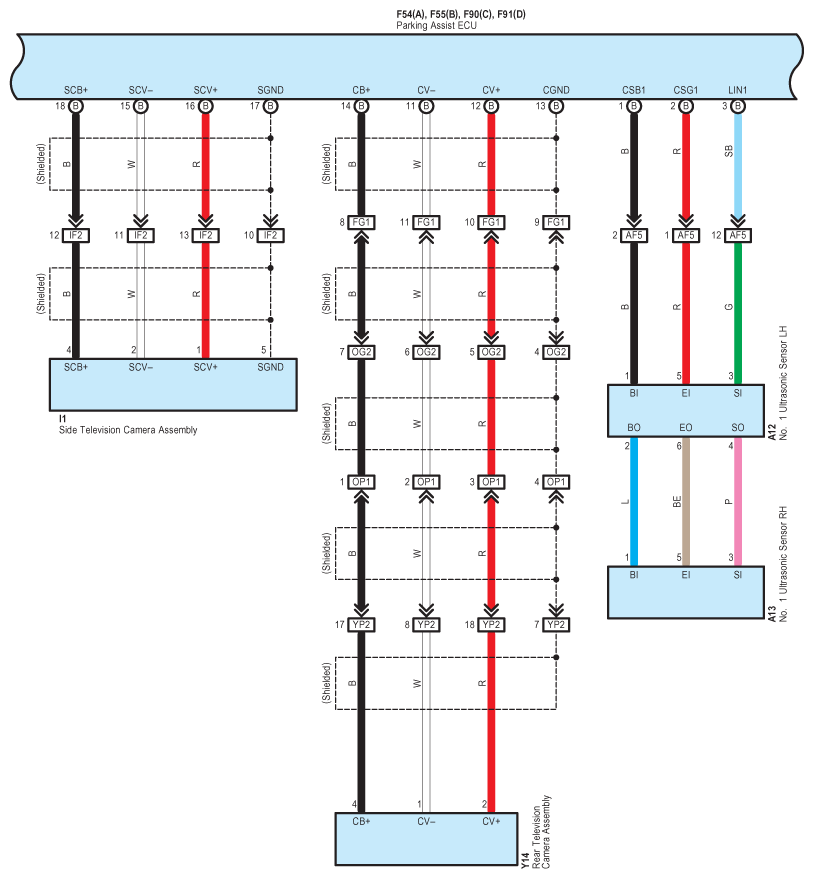

Fig 2: Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor And Intuitive Parking Assist) - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

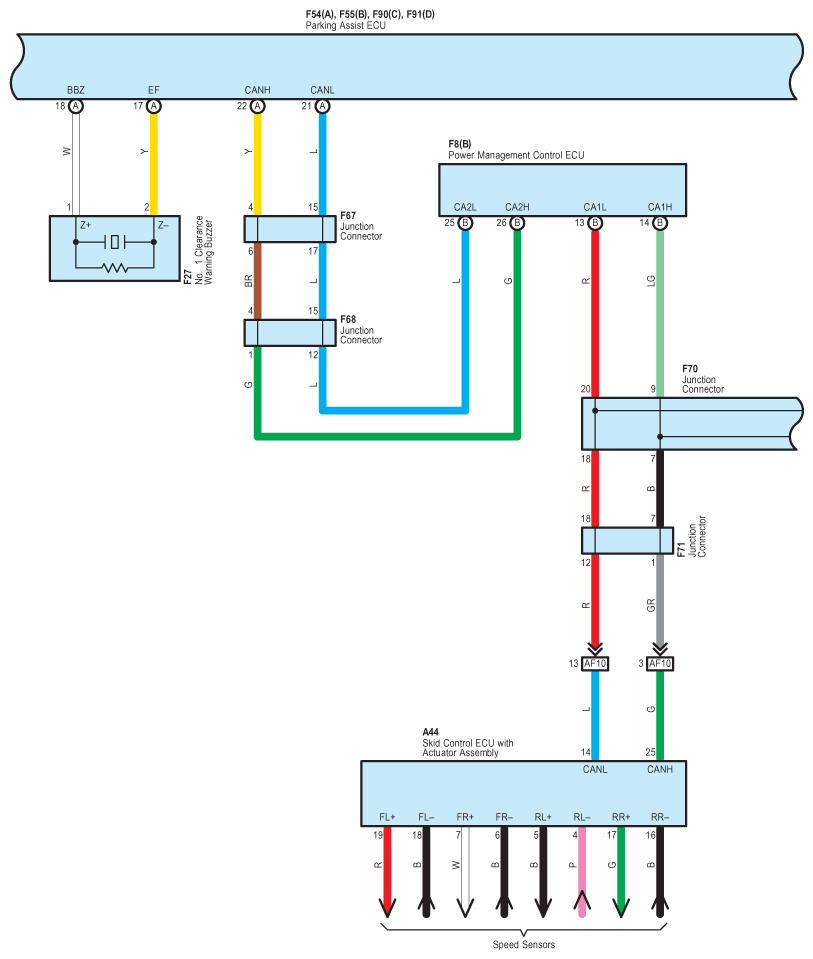

Fig 3: Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor And Intuitive Parking Assist) - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

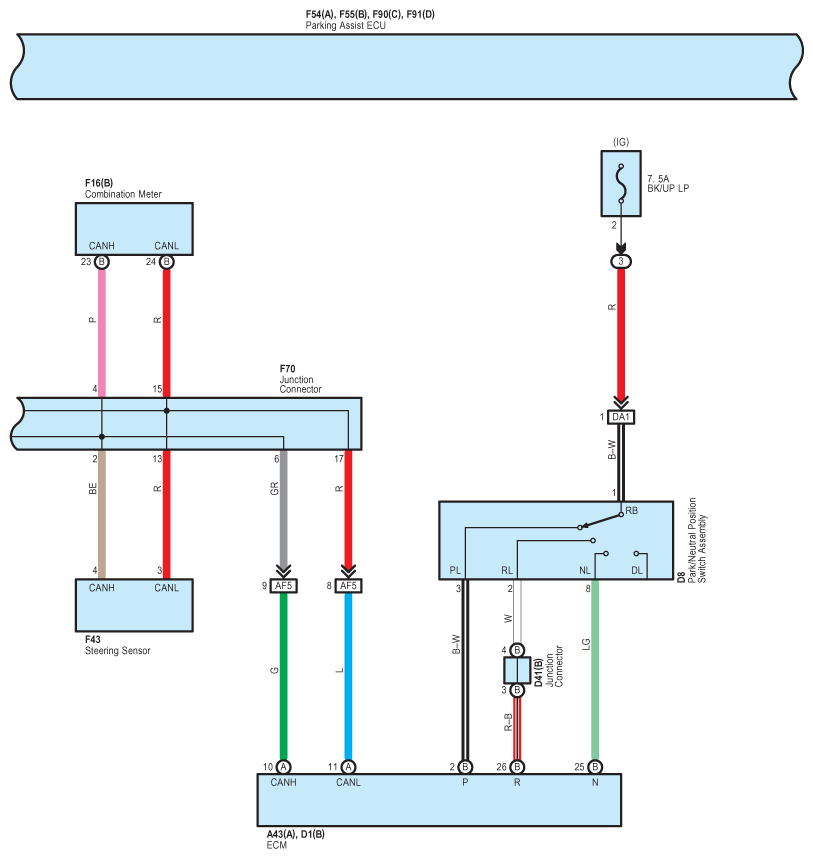

Fig 4: Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor And Intuitive Parking Assist) - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

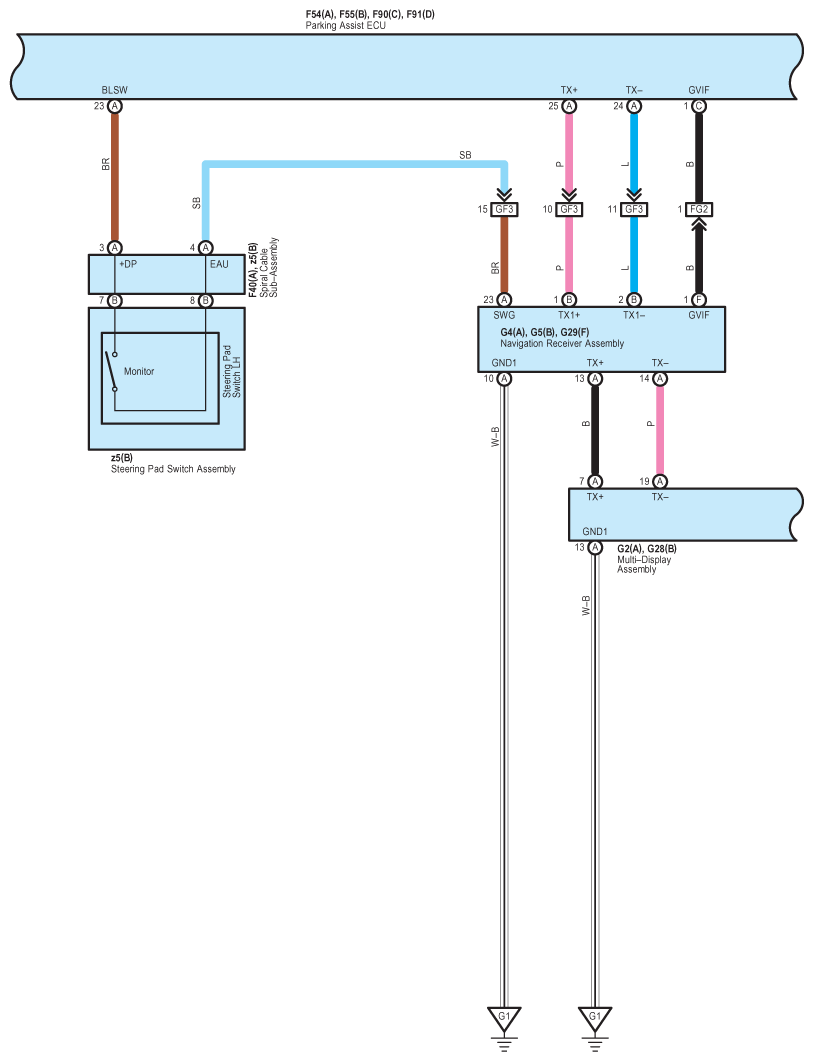

Fig 5: Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor And Intuitive Parking Assist) - Circuit Diagram (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

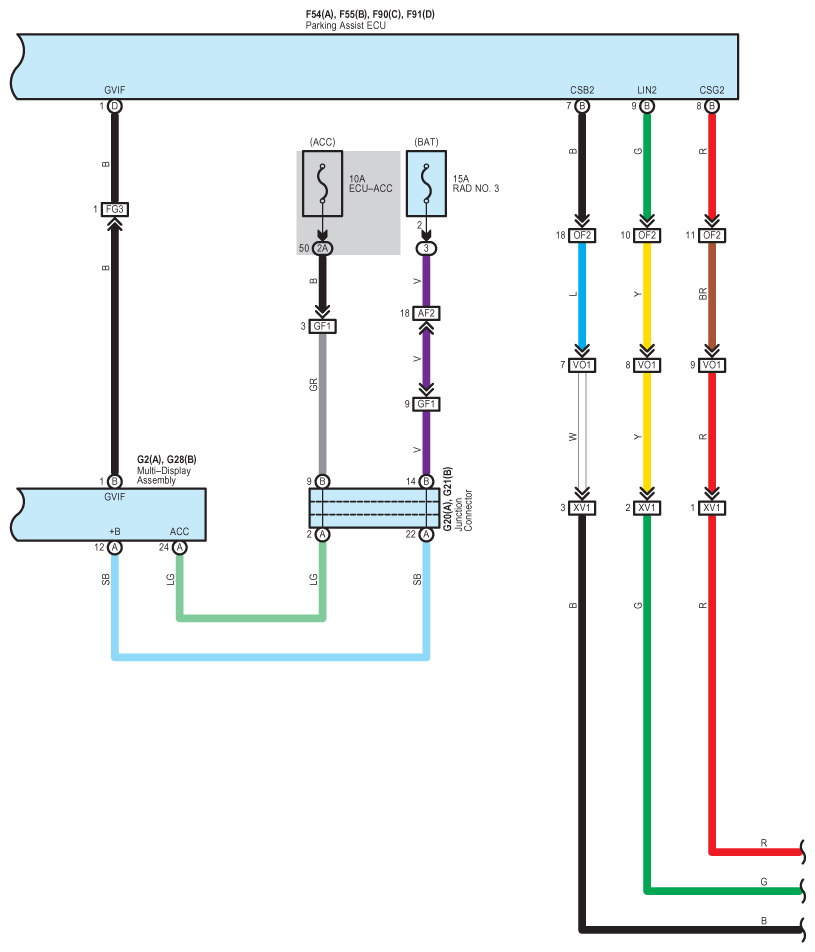

Fig 6: Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor And Intuitive Parking Assist) - Circuit Diagram (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

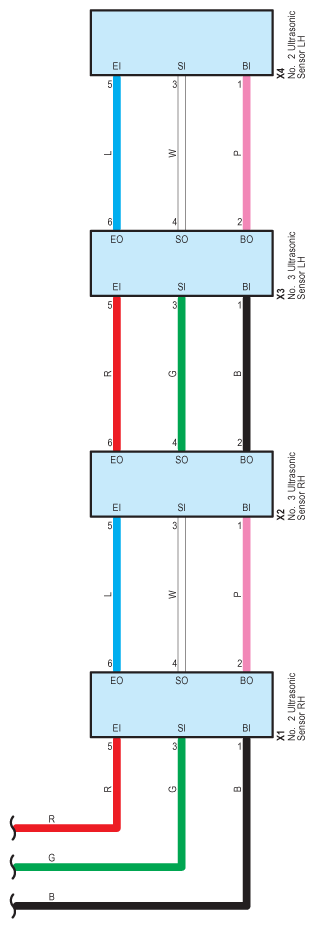

Fig 7: Parking Assist (Back Guide Monitor/Rear View Monitor, Side Monitor And Intuitive Parking Assist) - Circuit Diagram (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
