Theft Deterrent: Notes

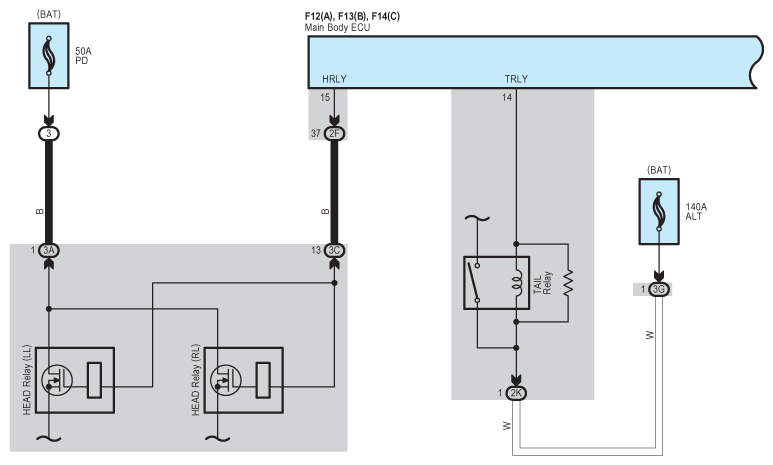

Fig 1: Theft Deterrent - Circuit Diagram (1 Of 9)

G07576120

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

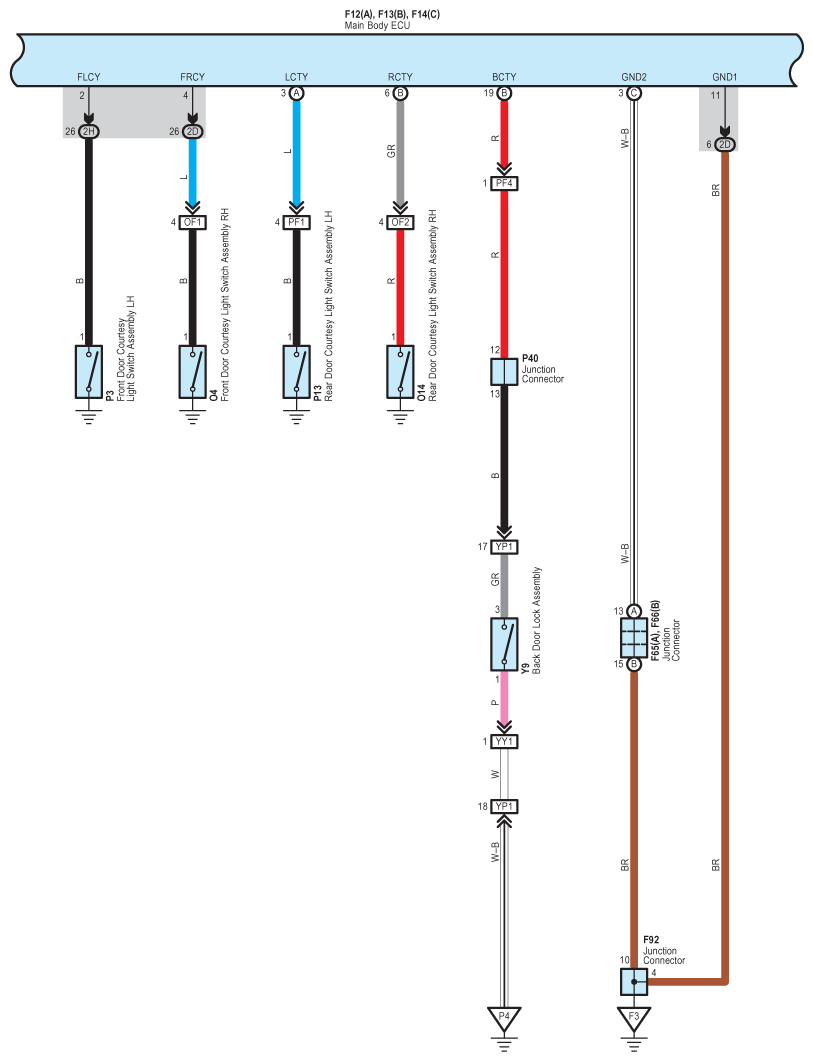

Fig 2: Theft Deterrent - Circuit Diagram (2 Of 9)

G07576121

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

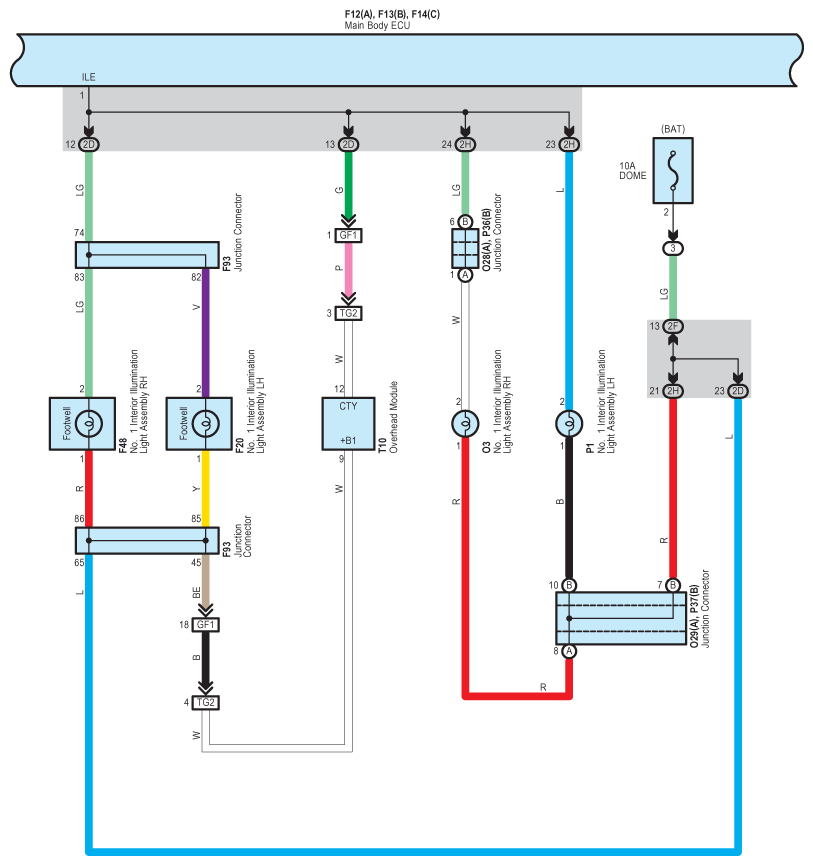

Fig 3: Theft Deterrent - Circuit Diagram (3 Of 9)

G07576122

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

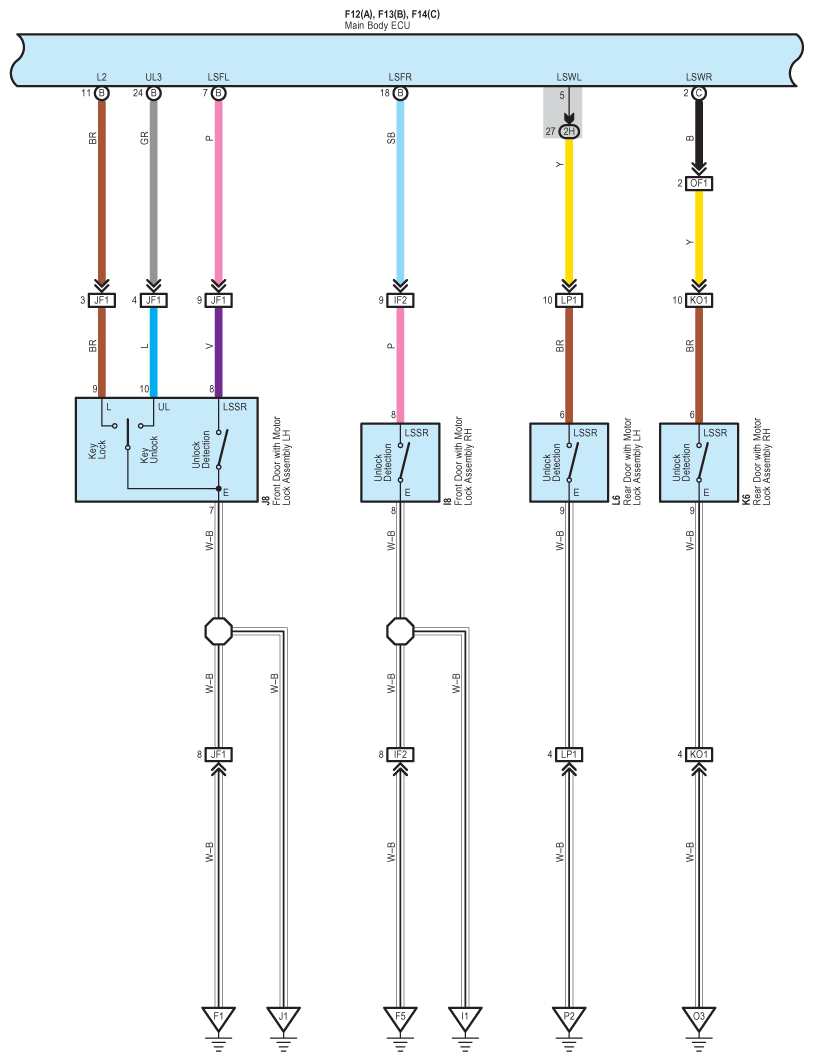

Fig 4: Theft Deterrent - Circuit Diagram (4 Of 9)

G07576123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

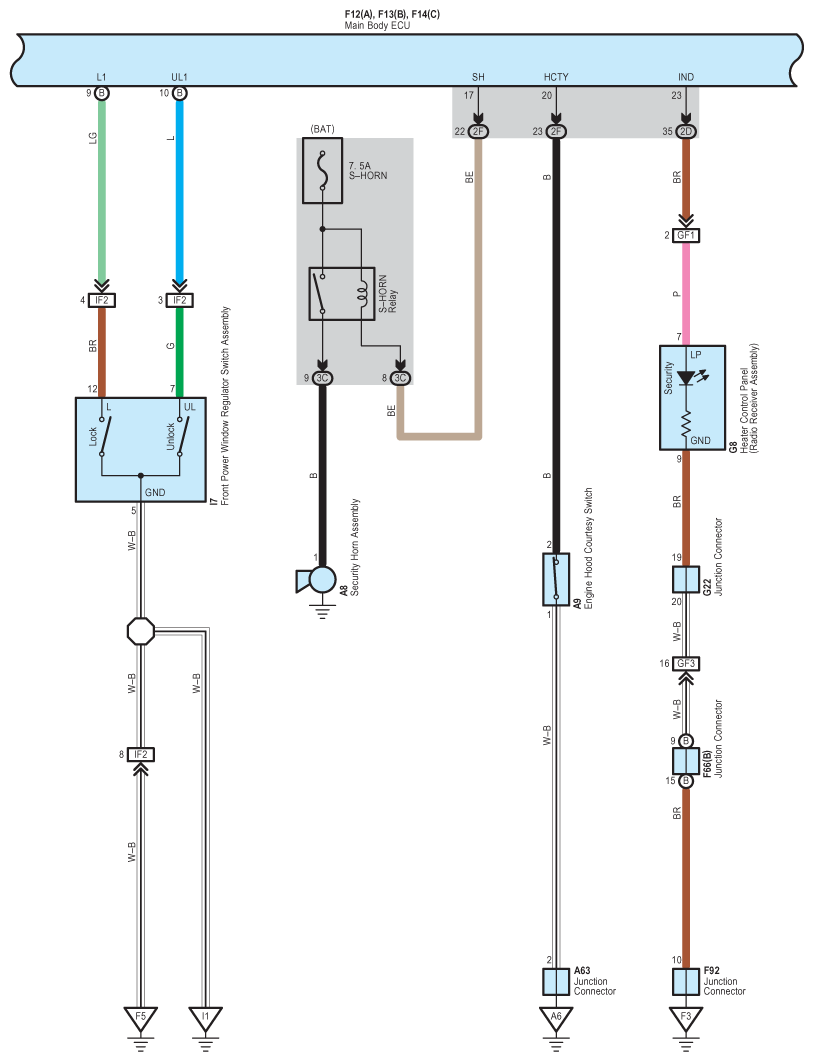

Fig 5: Theft Deterrent - Circuit Diagram (5 Of 9)

G07576124

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

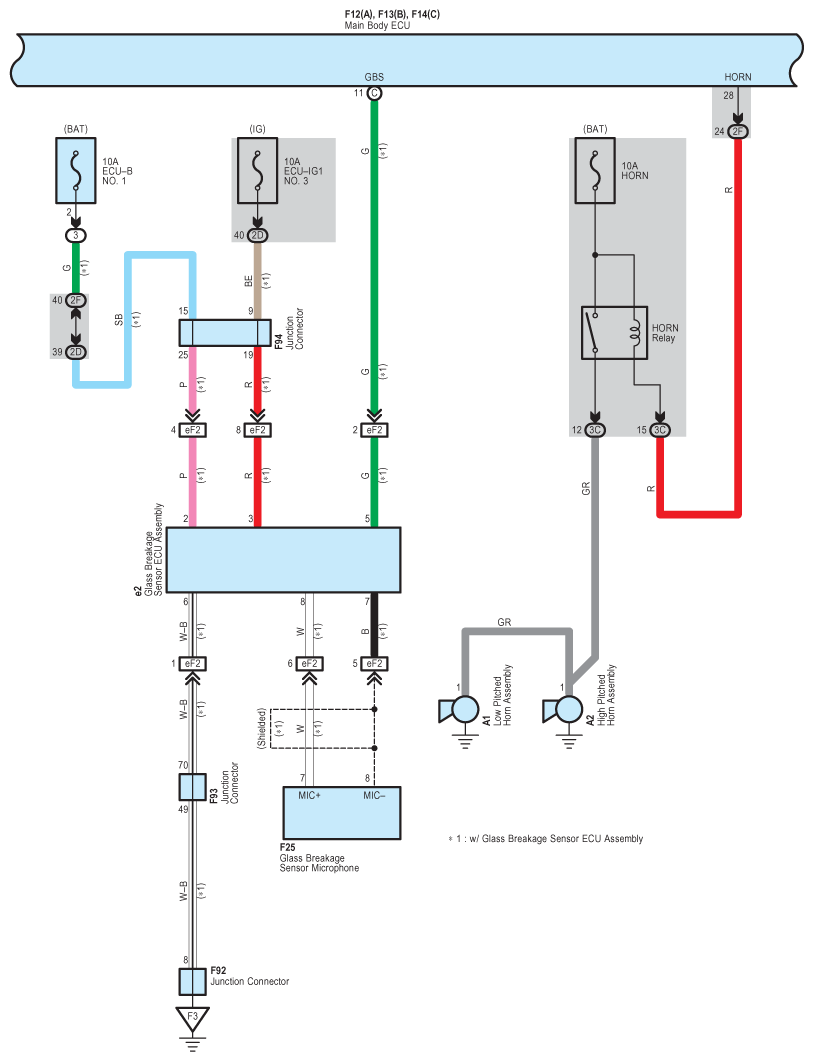

Fig 6: Theft Deterrent - Circuit Diagram (6 Of 9)

G07576125

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

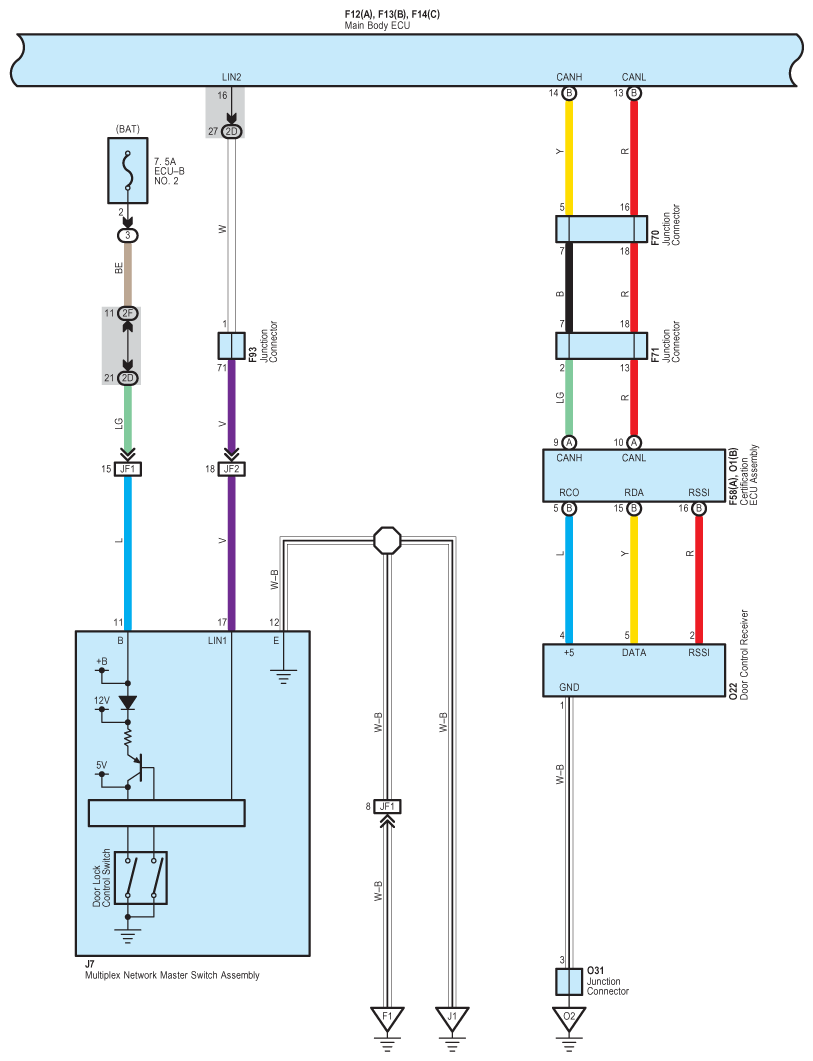

Fig 7: Theft Deterrent - Circuit Diagram (7 Of 9)

G07576126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Theft Deterrent - Circuit Diagram (8 Of 9)

G07576127

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

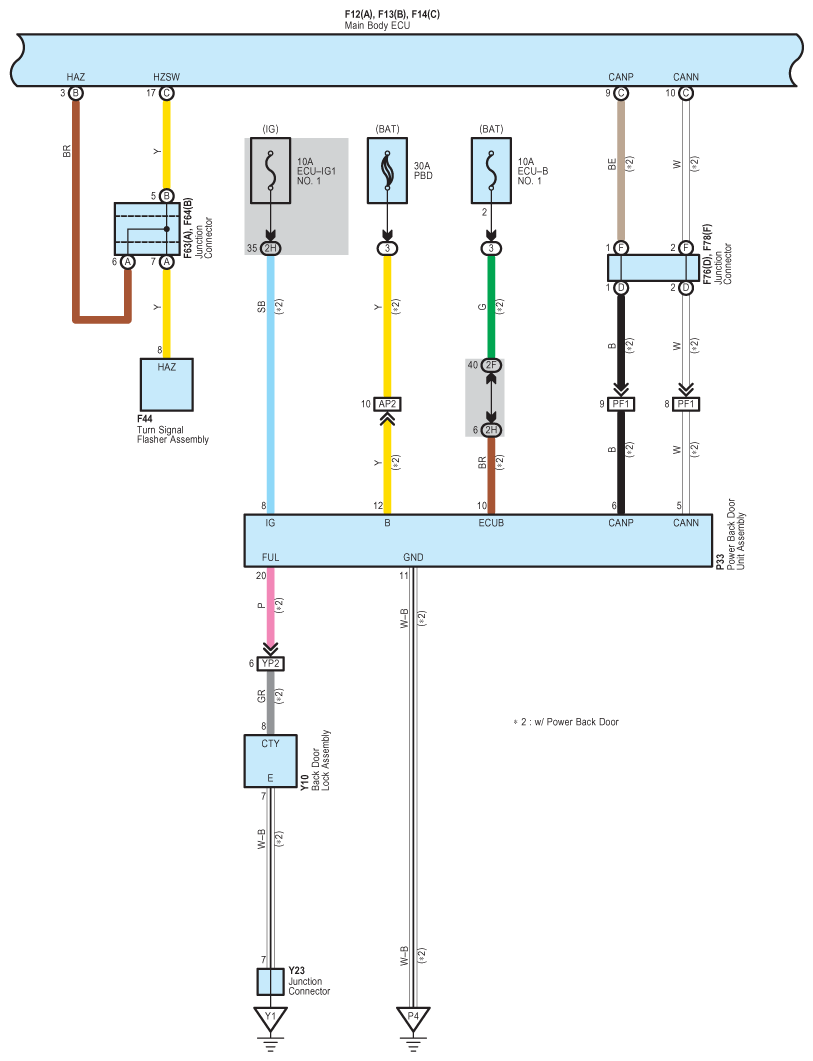

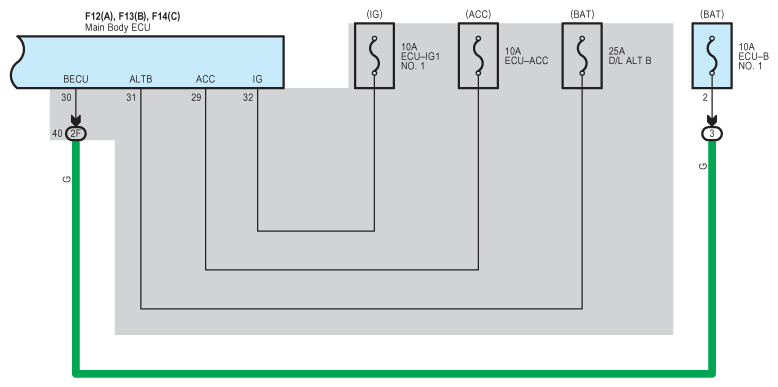

Fig 9: Theft Deterrent - Circuit Diagram (9 Of 9)

G07576128

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
