Camshaft Position Sensor: Removal: Removal

PRECAUTION (w/ Navigation System for HDD)
NOTE:
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.
REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
1. Remove the windshield wiper motor and link assembly. Refer to REMOVAL .
REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 8
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 32
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system. Refer to PRECAUTION .

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE NO. 2 AIR CLEANER INLET . Refer to REMOVAL - Step 33
REMOVE NO. 1 AIR CLEANER INLET . Refer to REMOVAL - Step 34
REMOVE BATTERY . Refer to REMOVAL - Step 35
REMOVE NO. 1 ENGINE UNDER COVER
DRAIN ENGINE COOLANT . Refer to REPLACEMENT - Step 6
REMOVE AIR CLEANER ASSEMBLY See step 11
REMOVE INTAKE AIR SURGE TANK ASSEMBLY . Refer to REMOVAL - Step 3
REMOVE VVT SENSOR
1. Disconnect the 4 sensor connectors.
2. Remove the 4 bolts and 4 sensors.

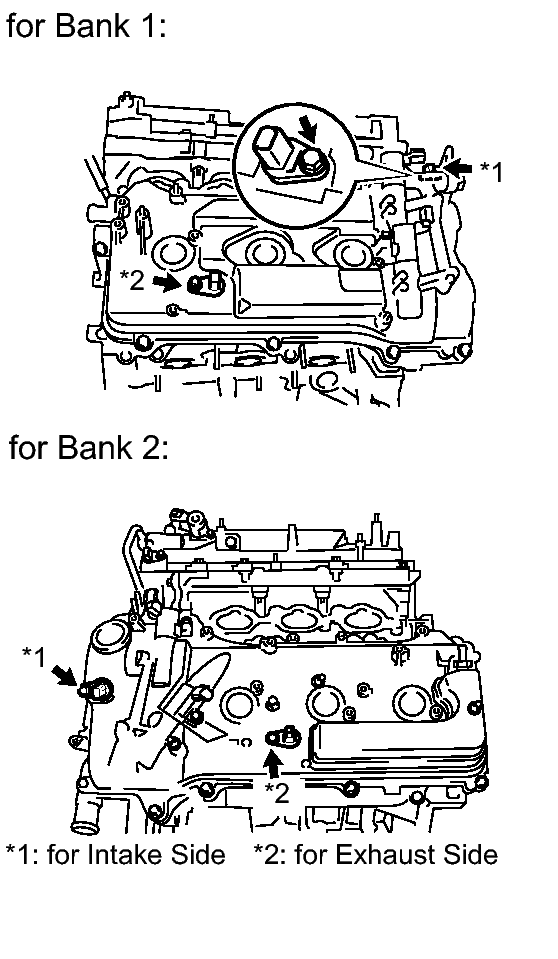

  Fig 1: Location of VVT Sensor Connectors And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
