Interior Light: Notes

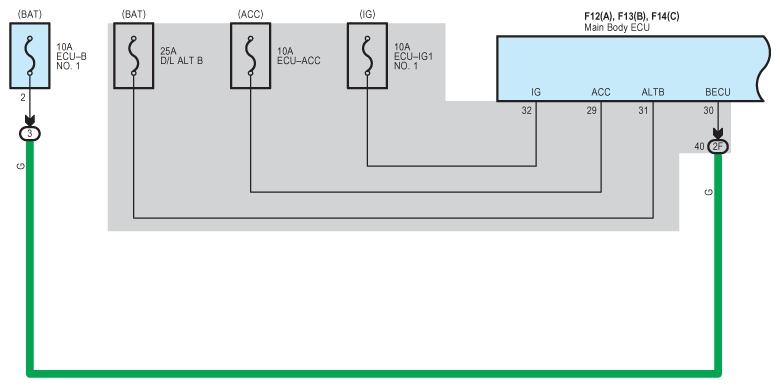

Fig 1: Interior Light - Circuit Diagram (1 Of 10)

G07576066

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

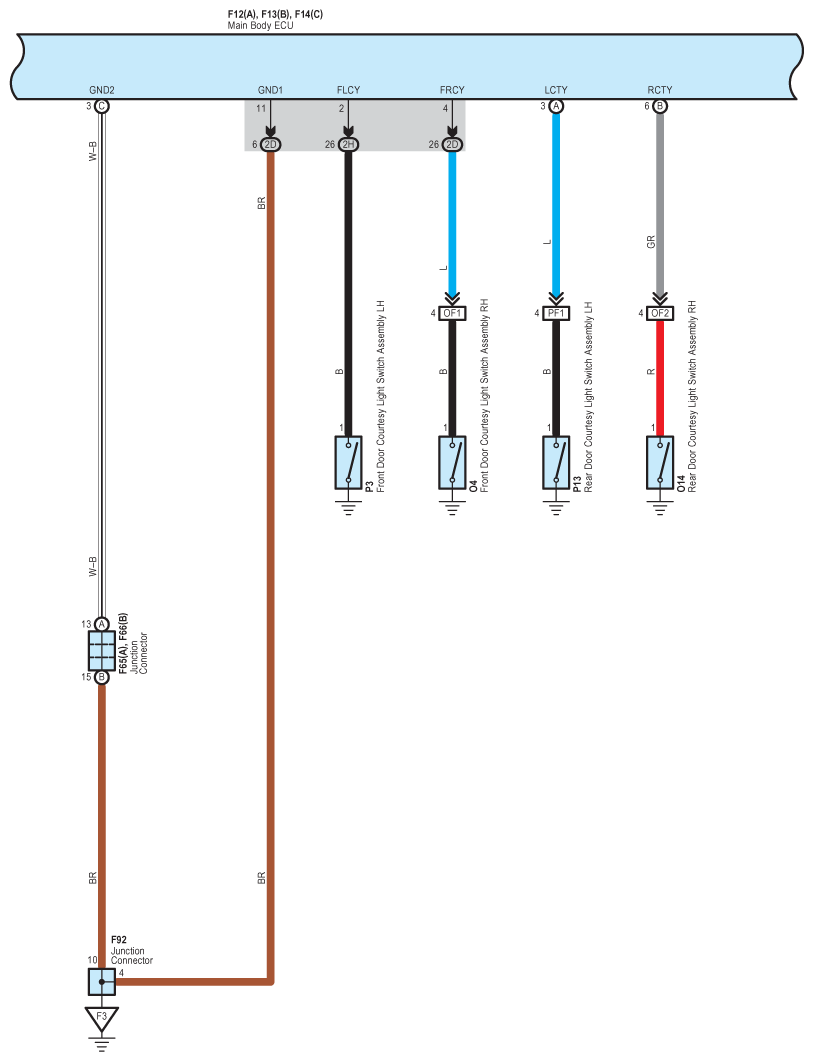

Fig 2: Interior Light - Circuit Diagram (2 Of 10)

G07576067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

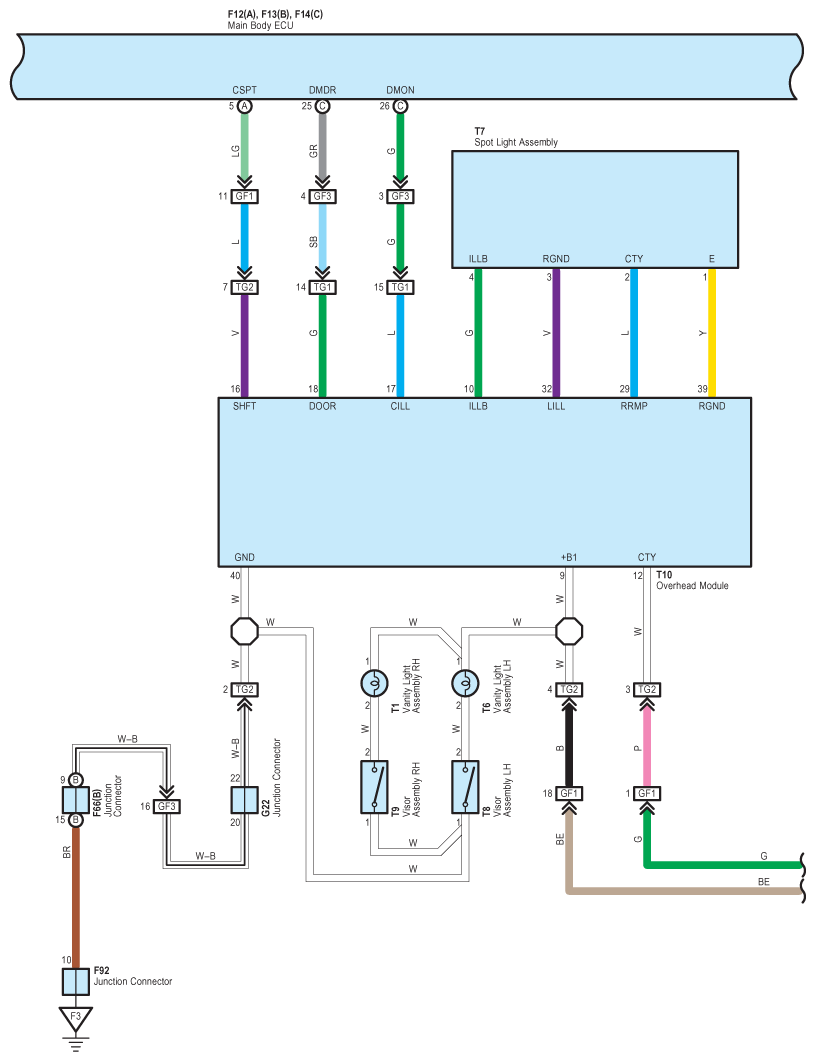

Fig 3: Interior Light - Circuit Diagram (3 Of 10)

G07576068

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

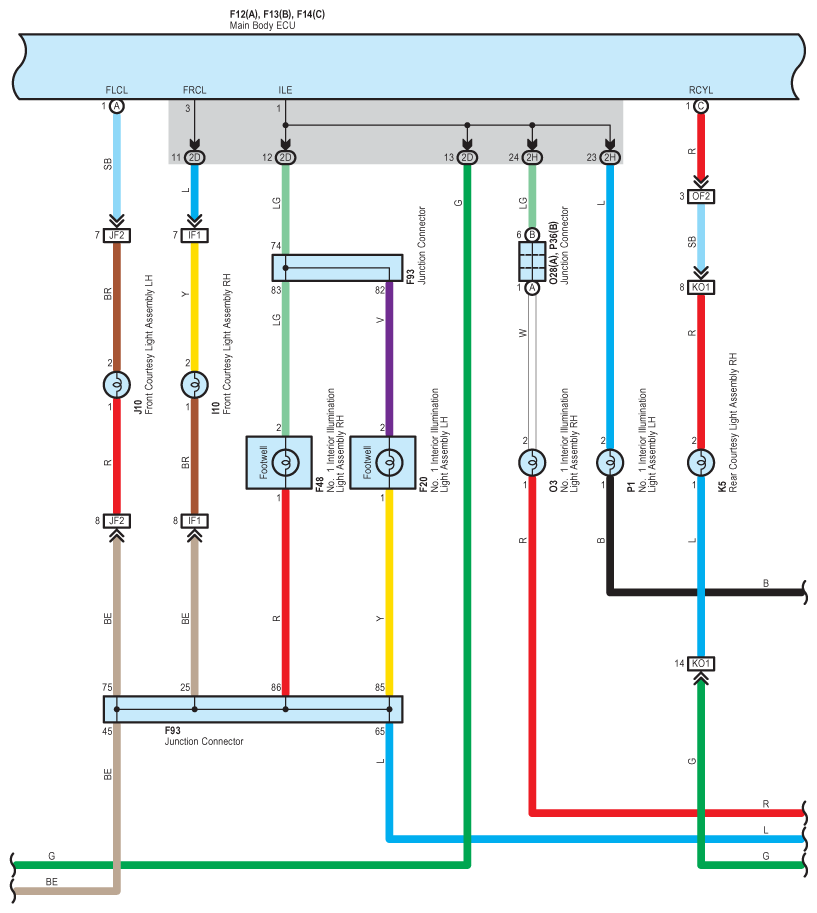

Fig 4: Interior Light - Circuit Diagram (4 Of 10)

G07576069

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

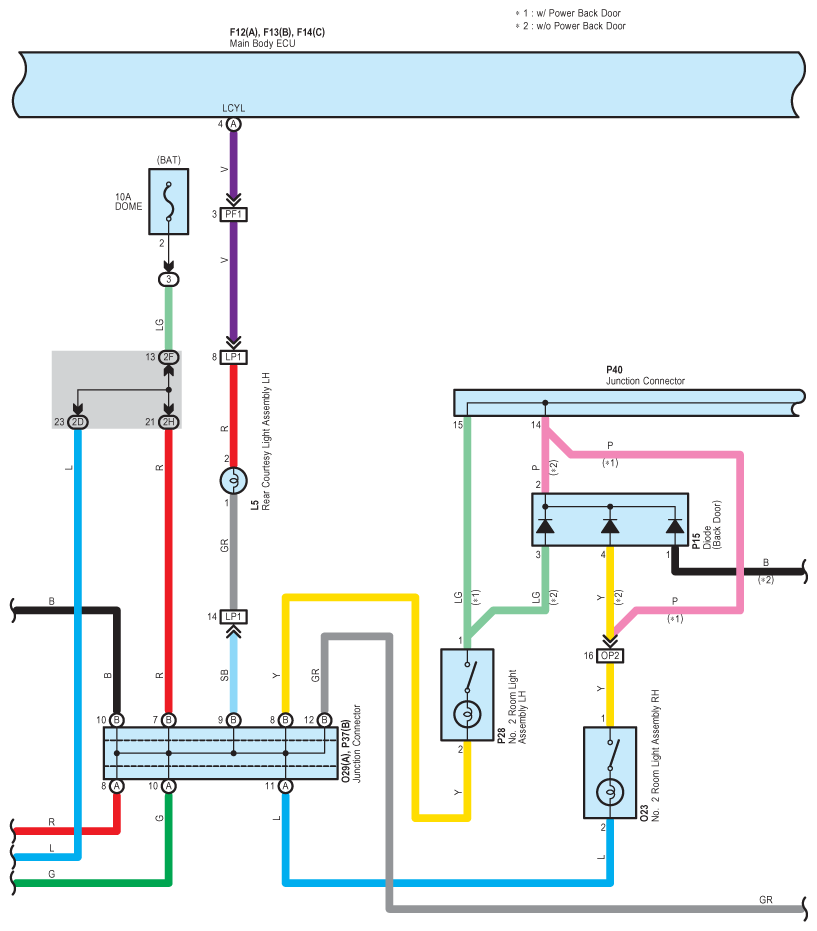

Fig 5: Interior Light - Circuit Diagram (5 Of 10)

G07576070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

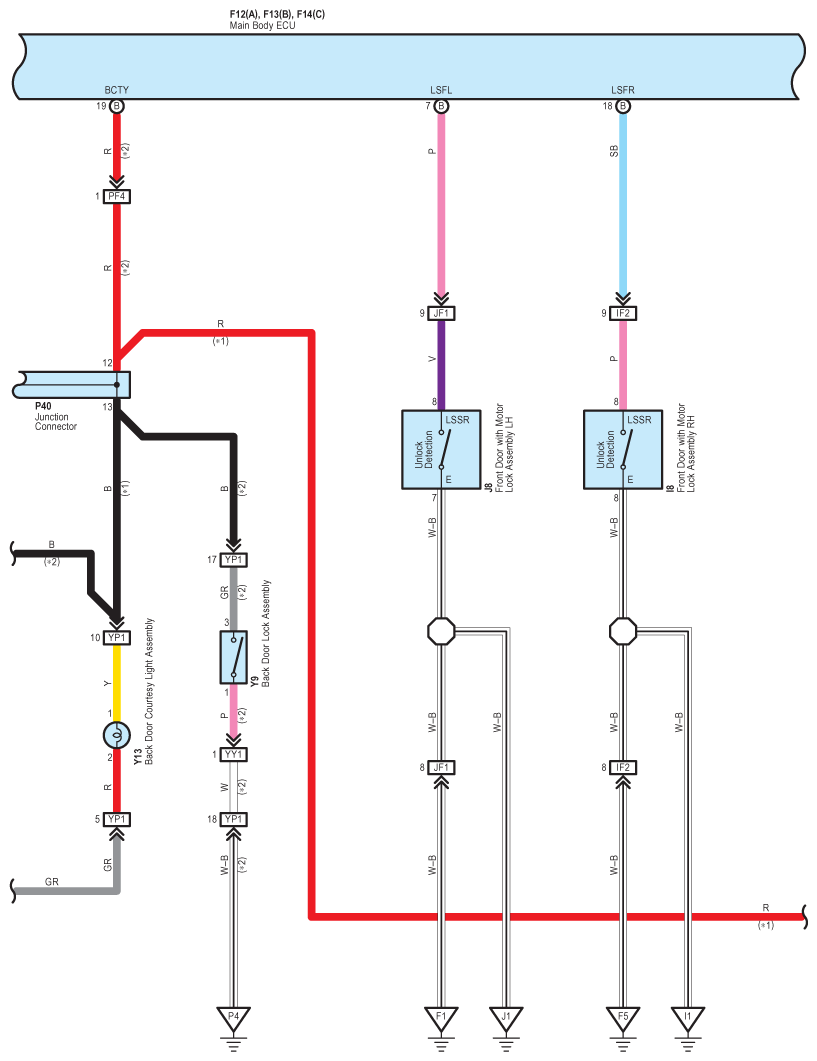

Fig 6: Interior Light - Circuit Diagram (6 Of 10)

G07576071

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

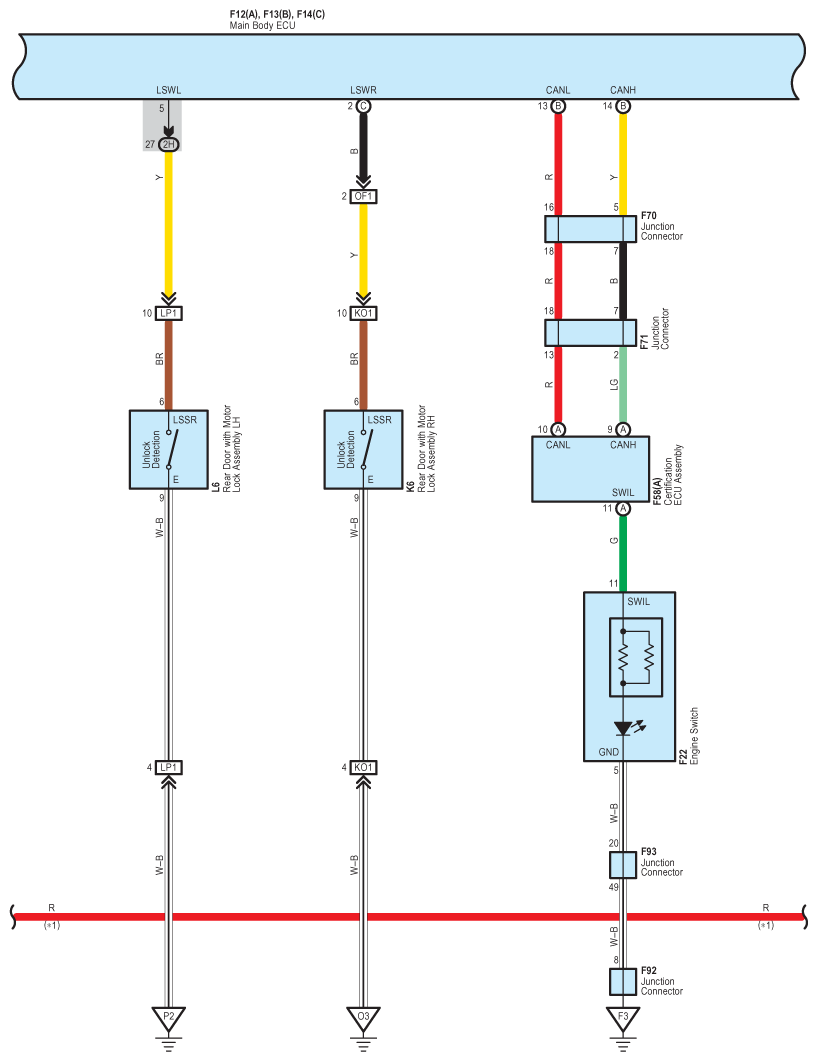

Fig 7: Interior Light - Circuit Diagram (7 Of 10)

G07576072

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

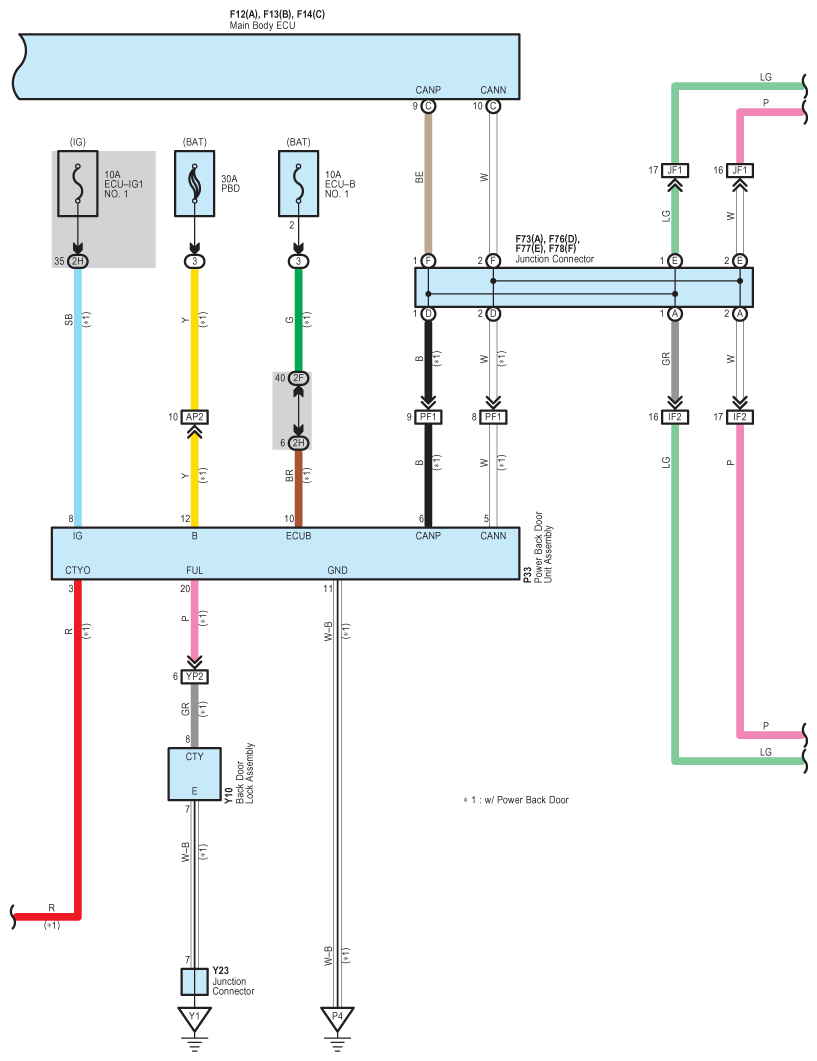

Fig 8: Interior Light - Circuit Diagram (8 Of 10)

G07576073

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

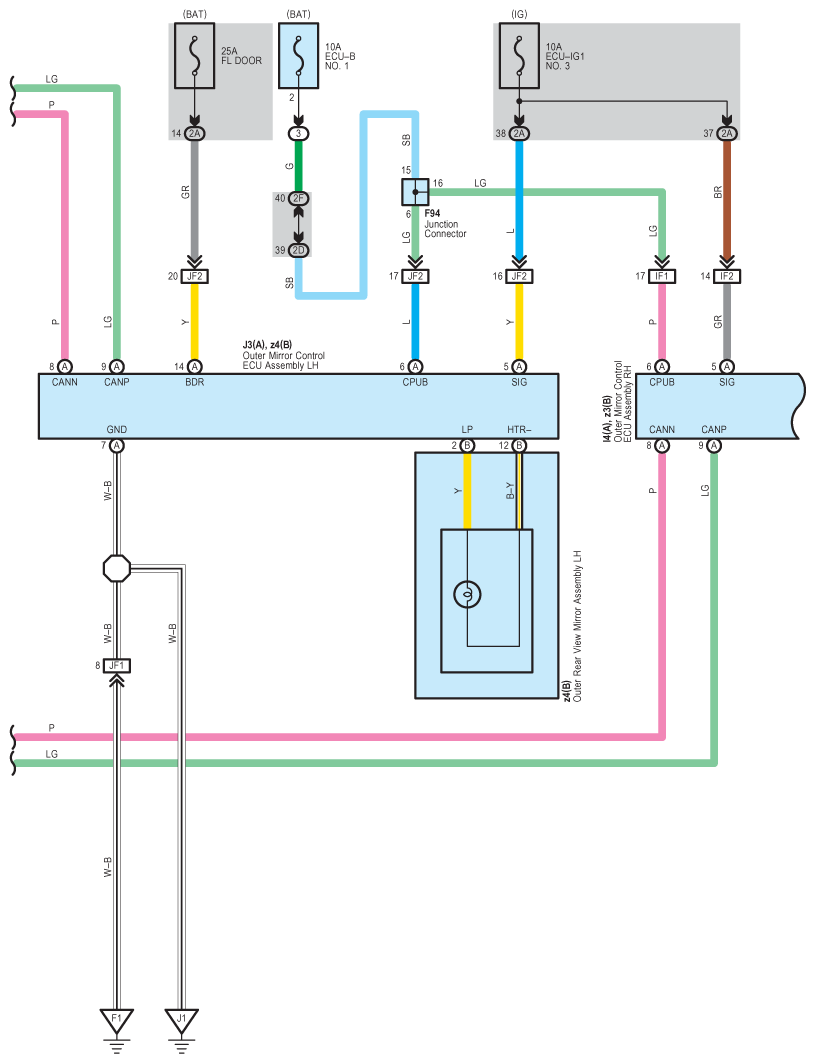

Fig 9: Interior Light - Circuit Diagram (9 Of 10)

G07576074

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

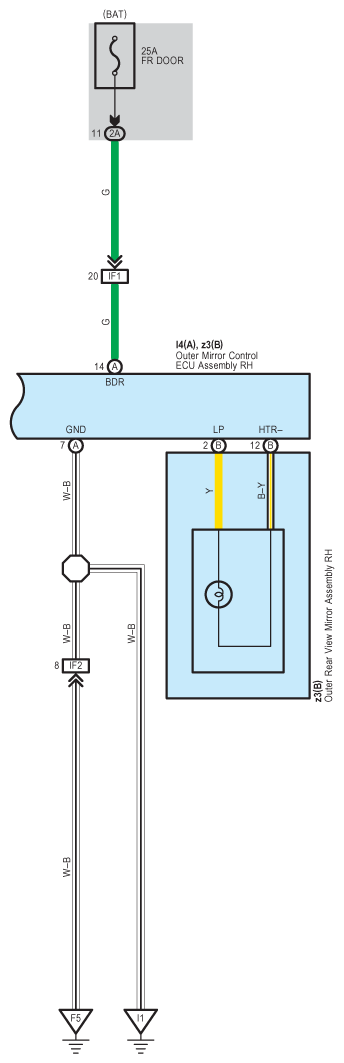

Fig 10: Interior Light - Circuit Diagram (10 Of 10)

G07576075

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
