Crankshaft Position Sensor: Removal: Removal

  1. REMOVE COMPRESSOR AND MAGNETIC CLUTCH
    1. Remove the compressor and magnetic clutch. Refer to REMOVAL .
  2. REMOVE CRANK POSITION SENSOR
    1. Disconnect the crank position sensor connector.

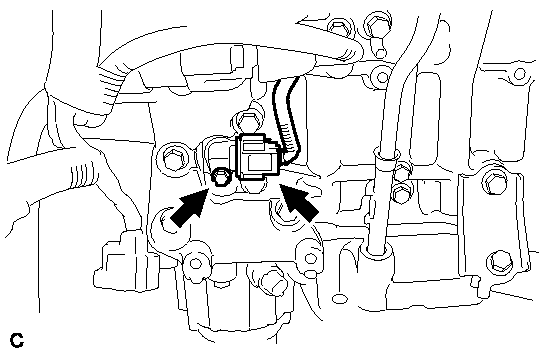

      Fig 1: Location of Crank Position Sensor Connector And Bolt
      GTY248547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crank position sensor.
