Parts Location: Illustration

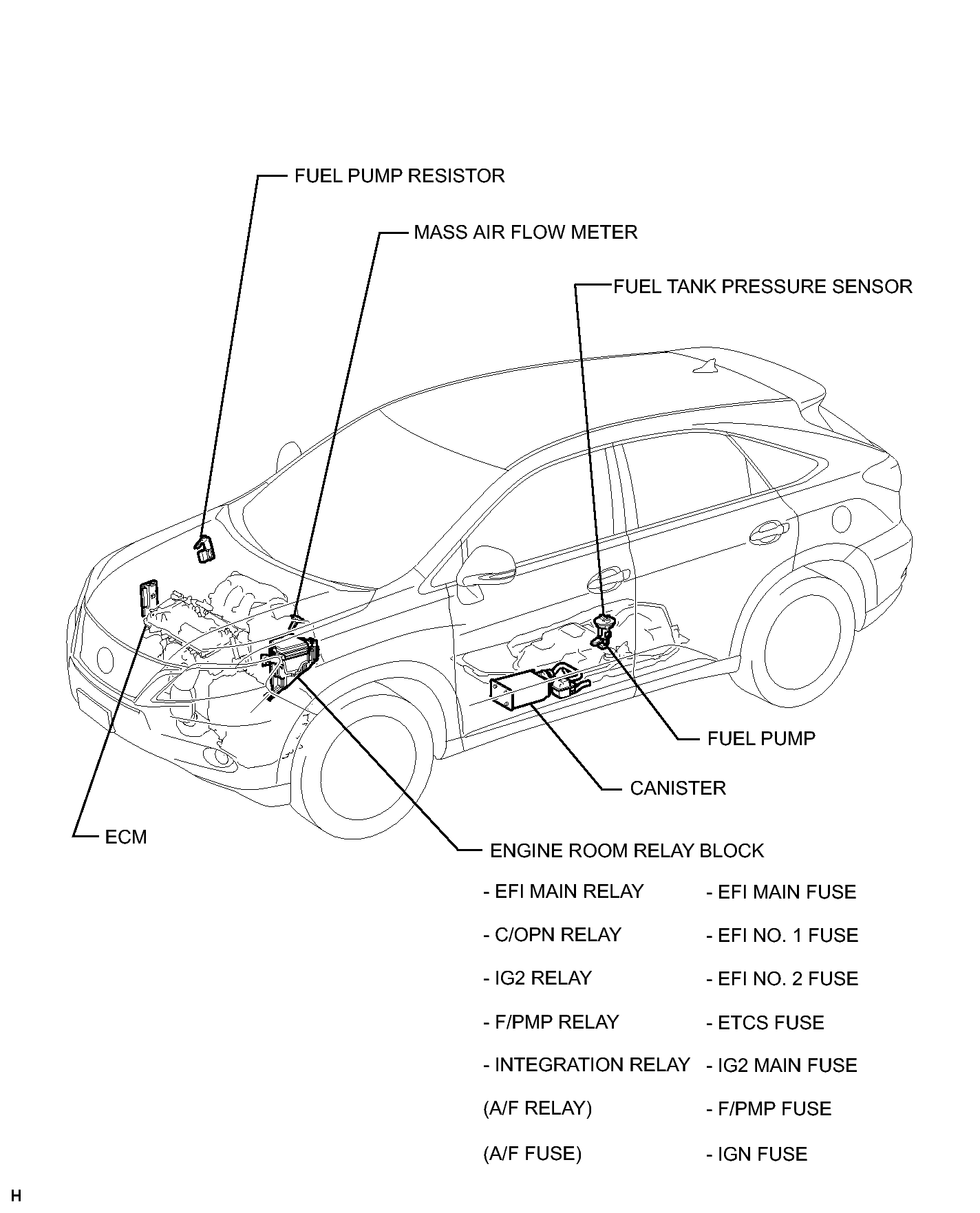

Fig 1: Identifying SFI System Components Location (1 Of 4)
GTY282403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

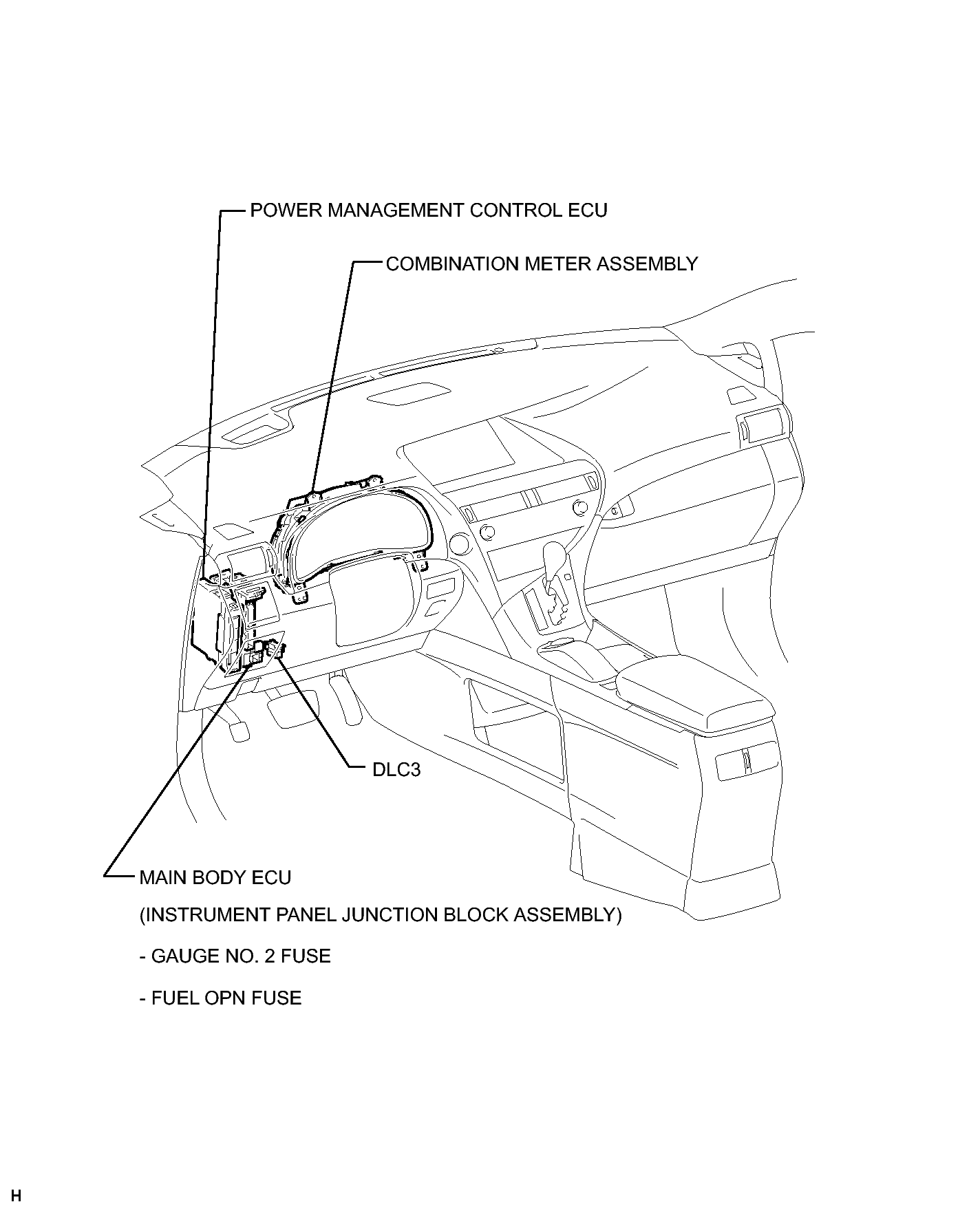

Fig 1: Identifying SFI System Components Location (2 Of 4)
GTY263749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

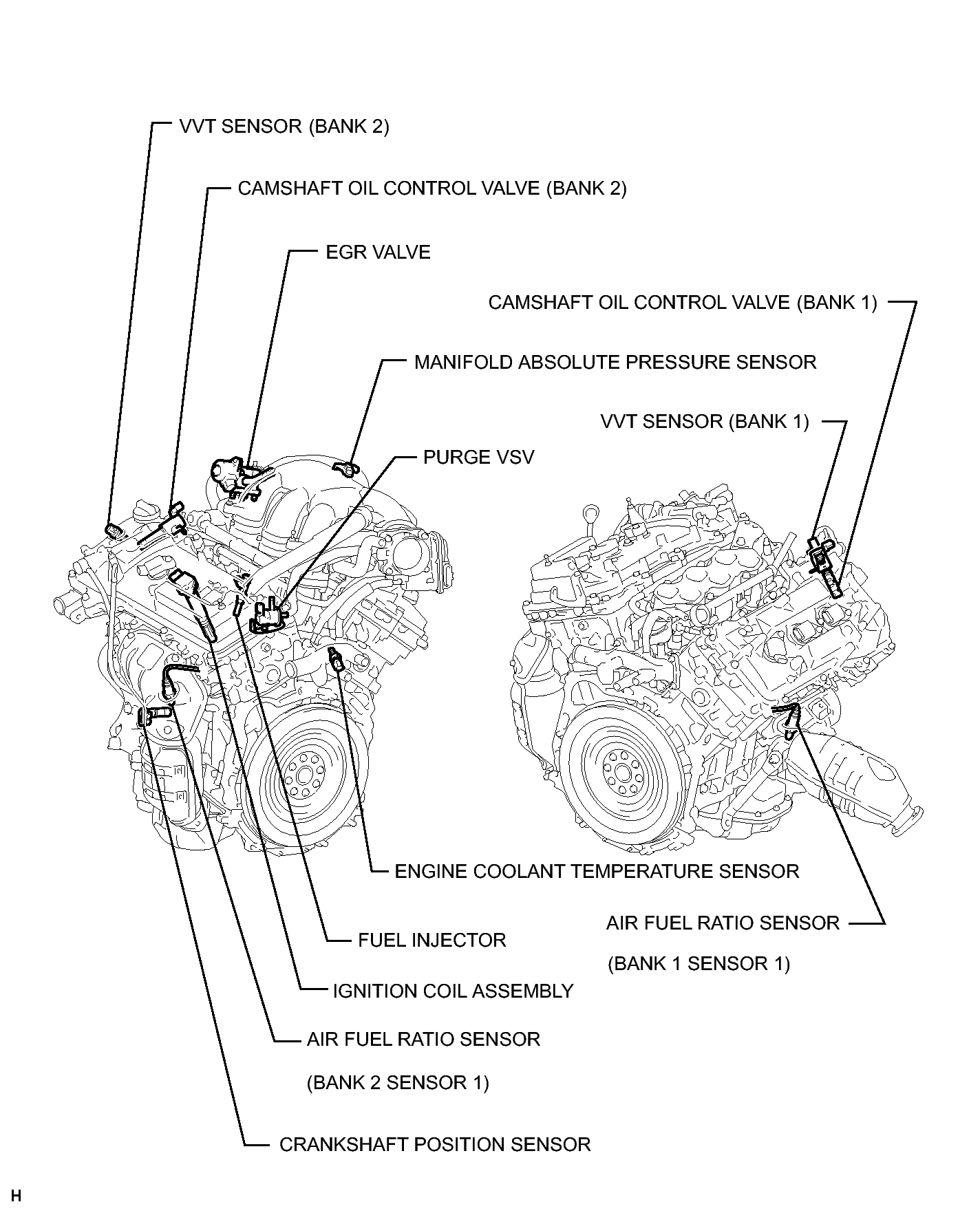

Fig 1: Identifying SFI System Components Location (3 Of 4)
GTY287639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

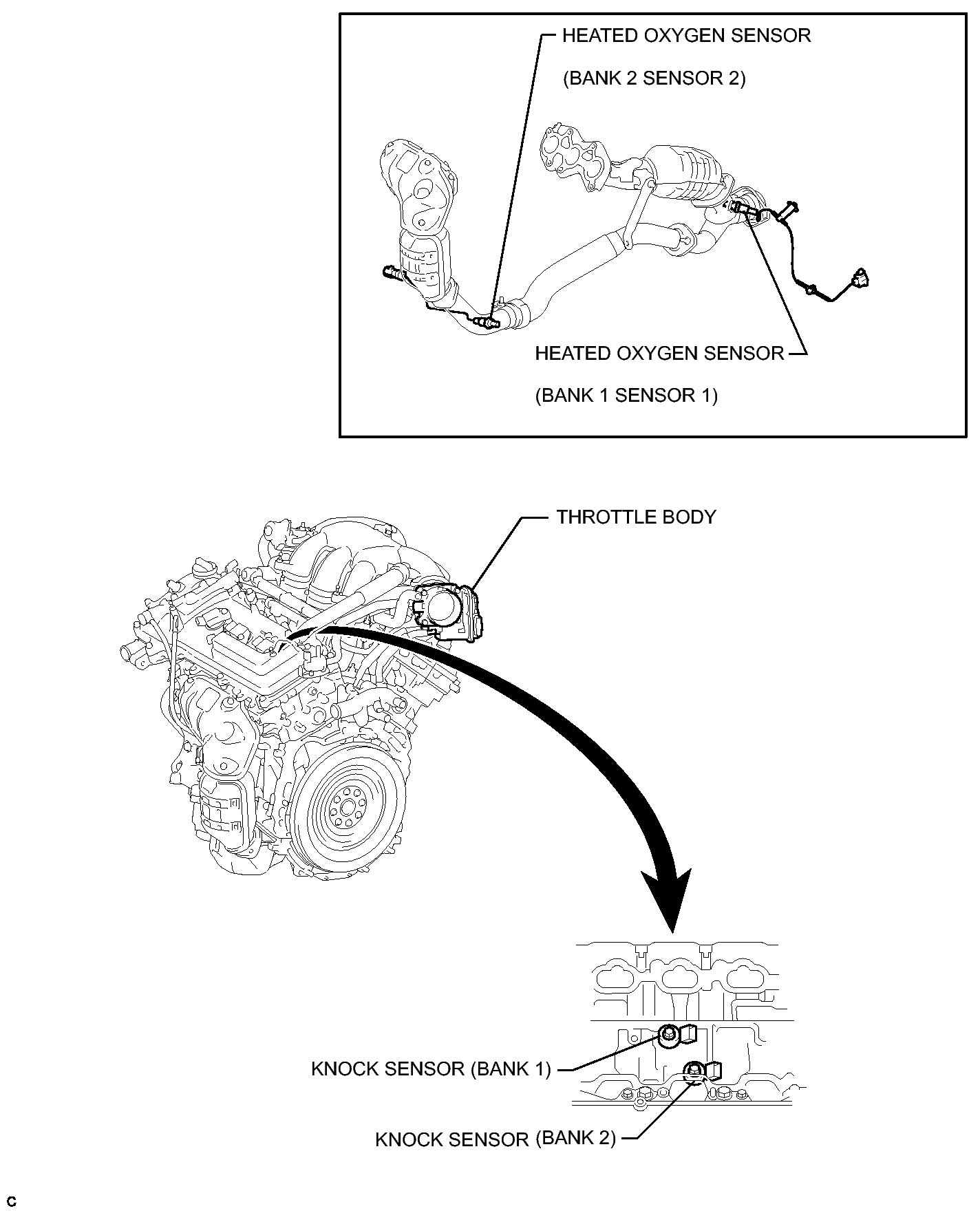

Fig 1: Identifying SFI System Components Location (4 Of 4)
GTY349646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
