Ignition Coil And Spark Plug: Removal: Removal

PRECAUTION (w/ Air Suspension)
NOTE:
Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .
REMOVE EGR COOLER ASSEMBLY
1. Remove the EGR cooler assembly. Refer to REMOVAL .
REMOVE NO. 1 EGR COOLER BRACKET . Refer to REMOVAL - Step 7
REMOVE IGNITION COIL ASSEMBLY
1. Disconnect the 6 ignition coil connectors.

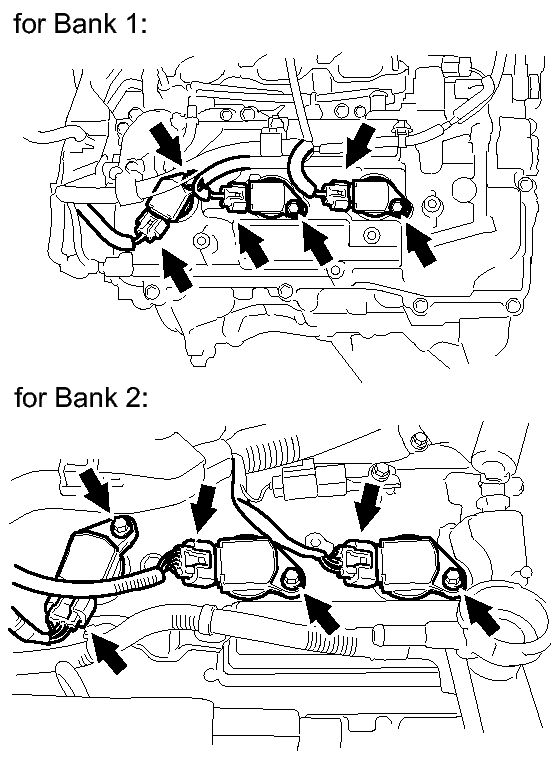

  Fig 1: Location of Ignition Coils And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 6 bolts and 6 ignition coils.
REMOVE SPARK PLUG
1. Remove the 6 spark plugs.

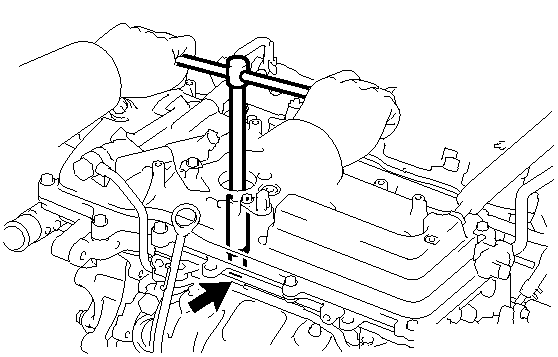

  Fig 2: Location of Spark Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
