Repair Instruction - Initialization

INTRODUCTION: REPAIR INSTRUCTION: INITIALIZATION

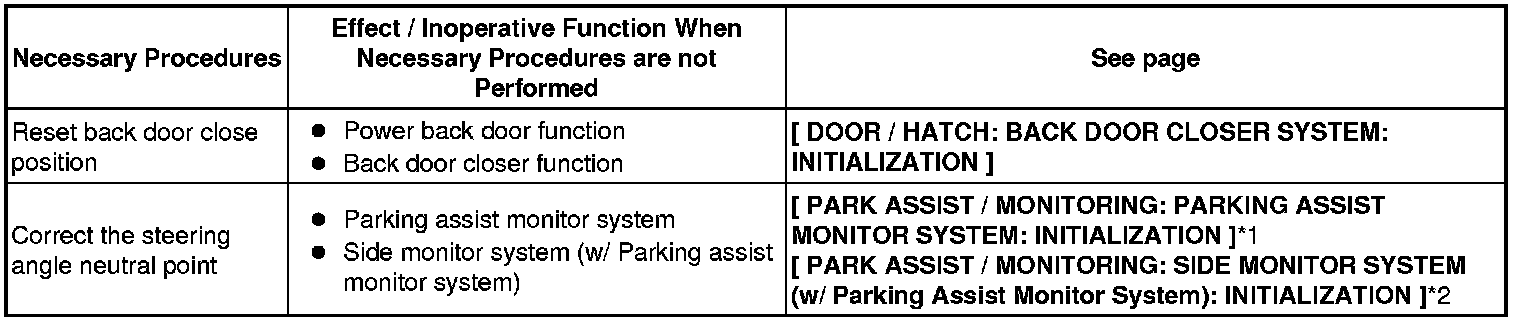

1. PROCEDURES NECESSARY WHEN BATTERY TERMINAL IS DISCONNECTED/RECONNECTED





*1: Parking assist monitor system

*2: Side monitor system (w/ Parking assist monitor system)

NOTICE:
After the power switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.

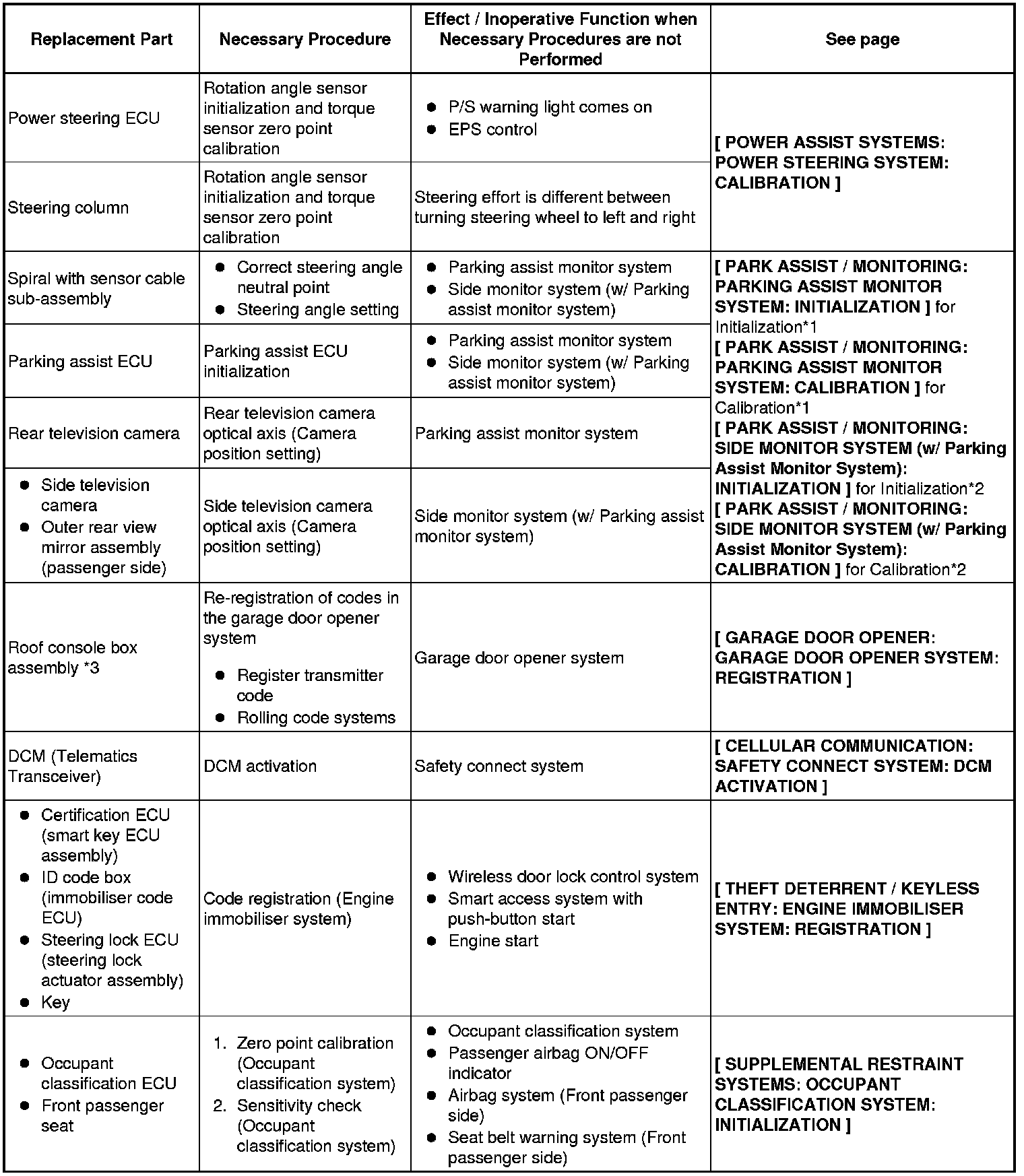

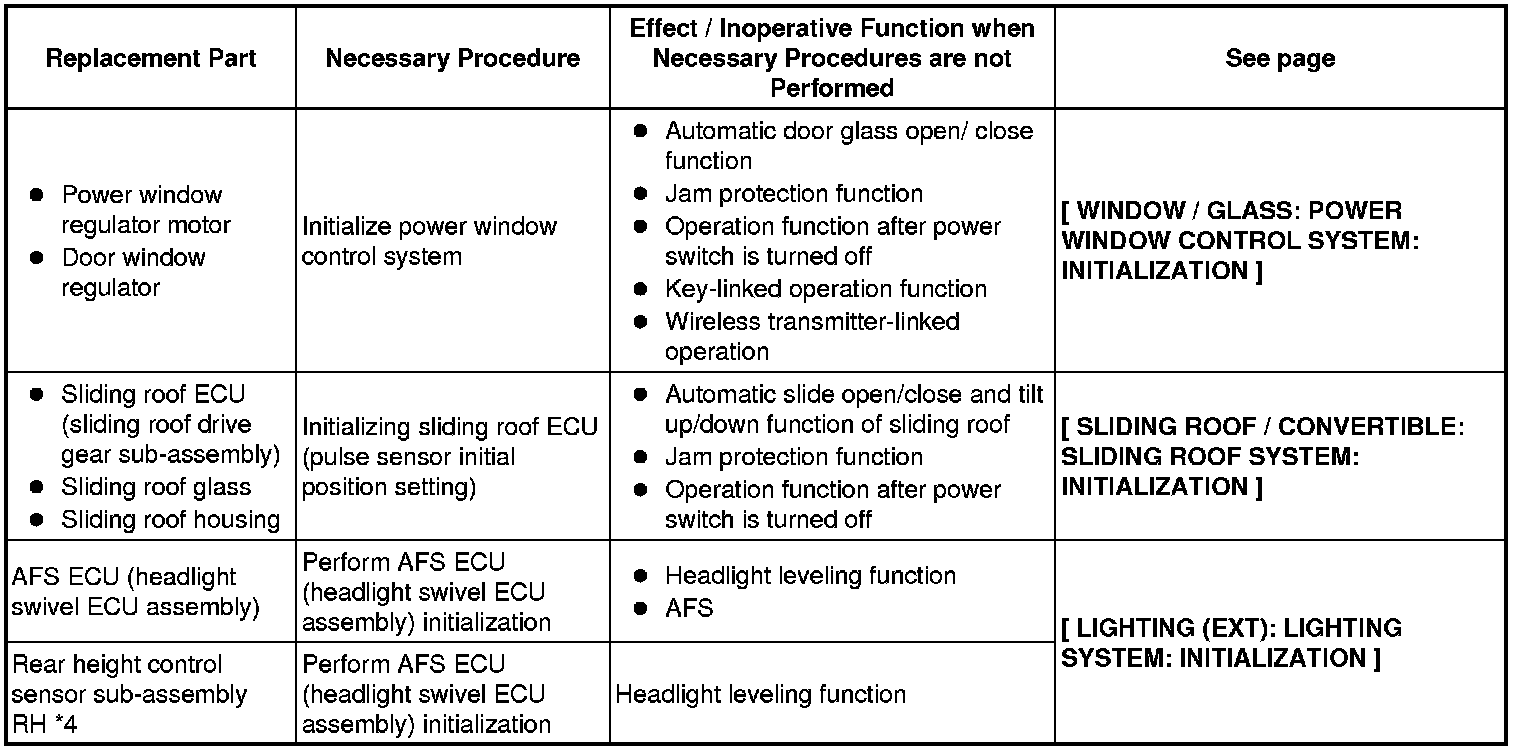

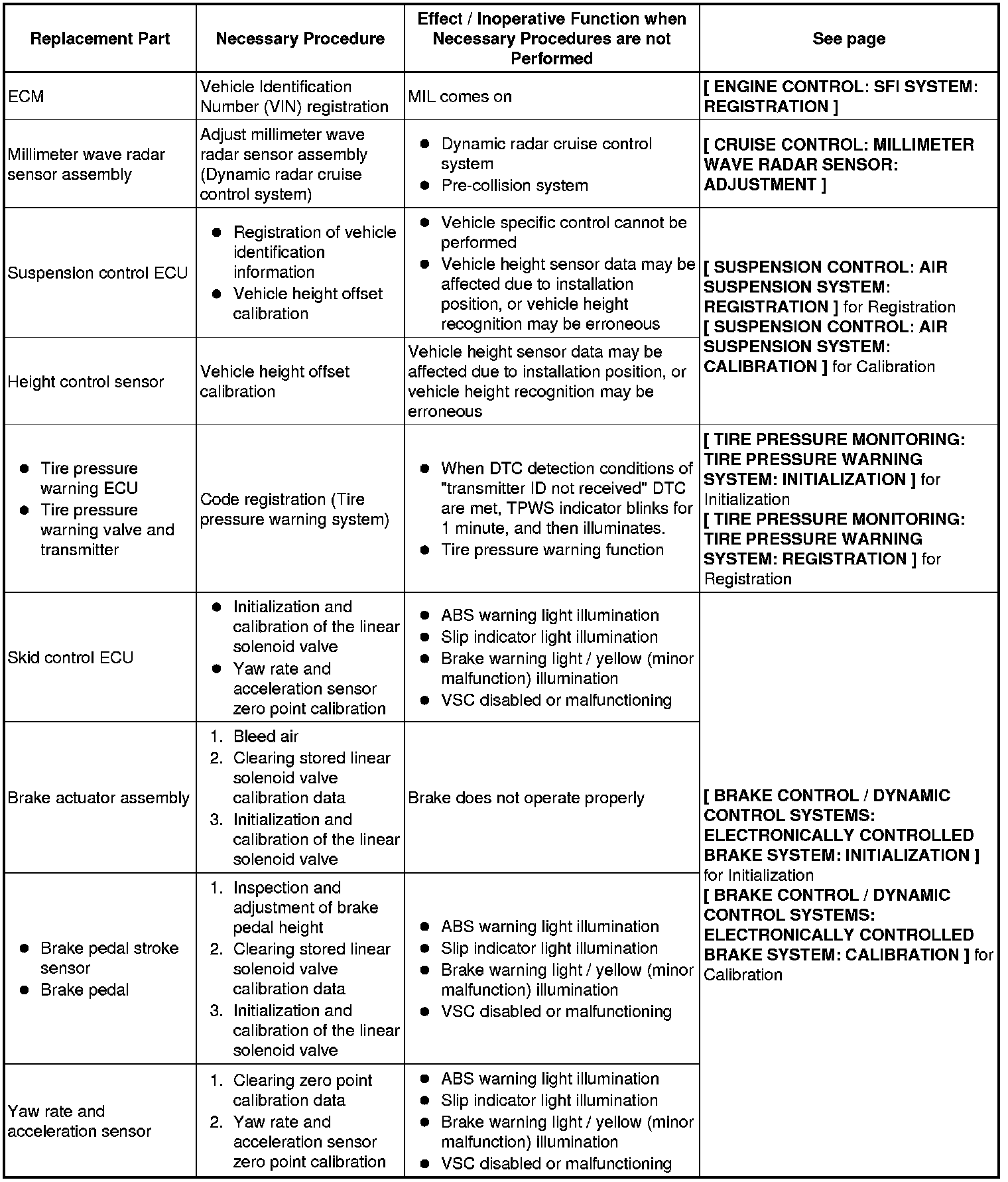

2. PROCEDURES NECESSARY WHEN ECU OR OTHER PARTS ARE REPLACED













*1: Parking assist monitor system

*2: Side monitor system (w/ Parking assist monitor system)

*3: w/ Garage door opener system

*4: w/o Air suspension system
