Skid Control Buzzer: Removal: Removal

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .

    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal, Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work. Refer to PRECAUTION .

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL

    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 6
  4. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY  . Refer to REMOVAL - Step 9
  5. REMOVE SKID CONTROL BUZZER ASSEMBLY
    1. Disengage the clamp to remove the skid control buzzer assembly.

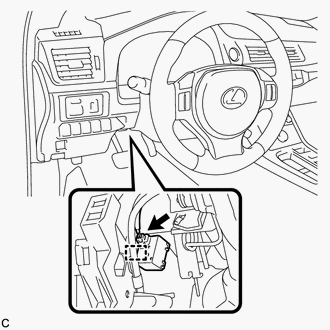

      Fig 1: Identifying Skid Control Buzzer Assembly And Clamp
      GTY355850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the skid control buzzer connector.
