Ground Point: Notes

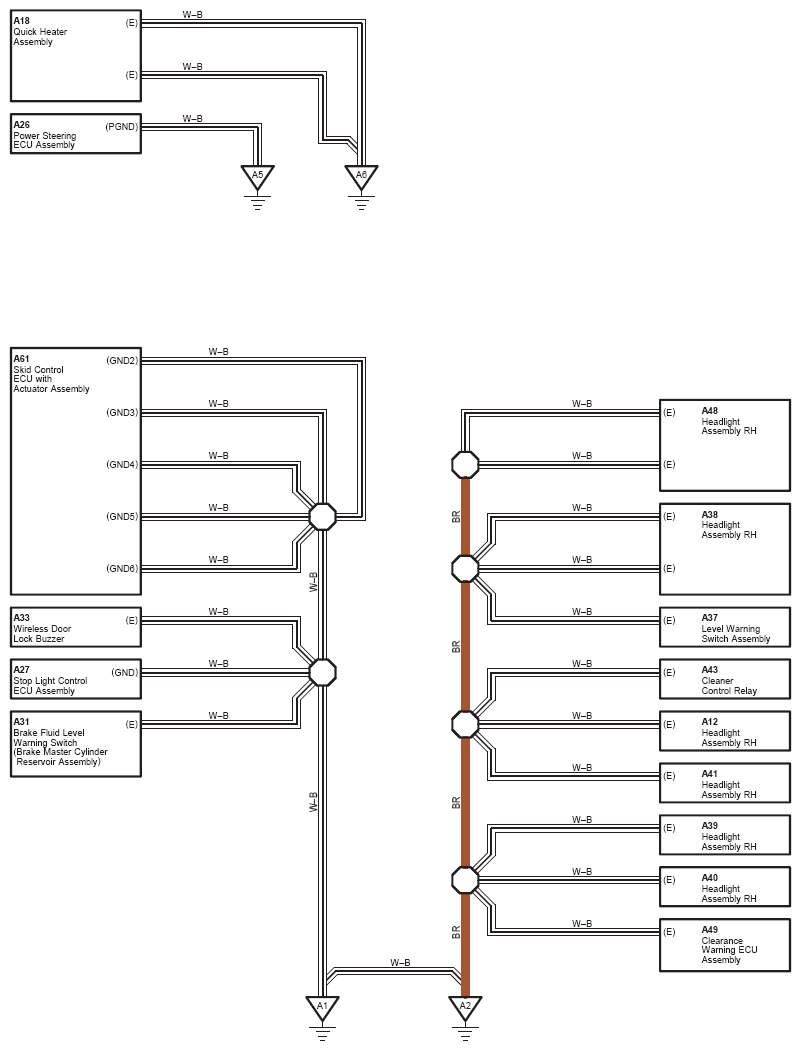

Fig 1: Ground Point Wiring Diagram (1 Of 8)

G08934736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

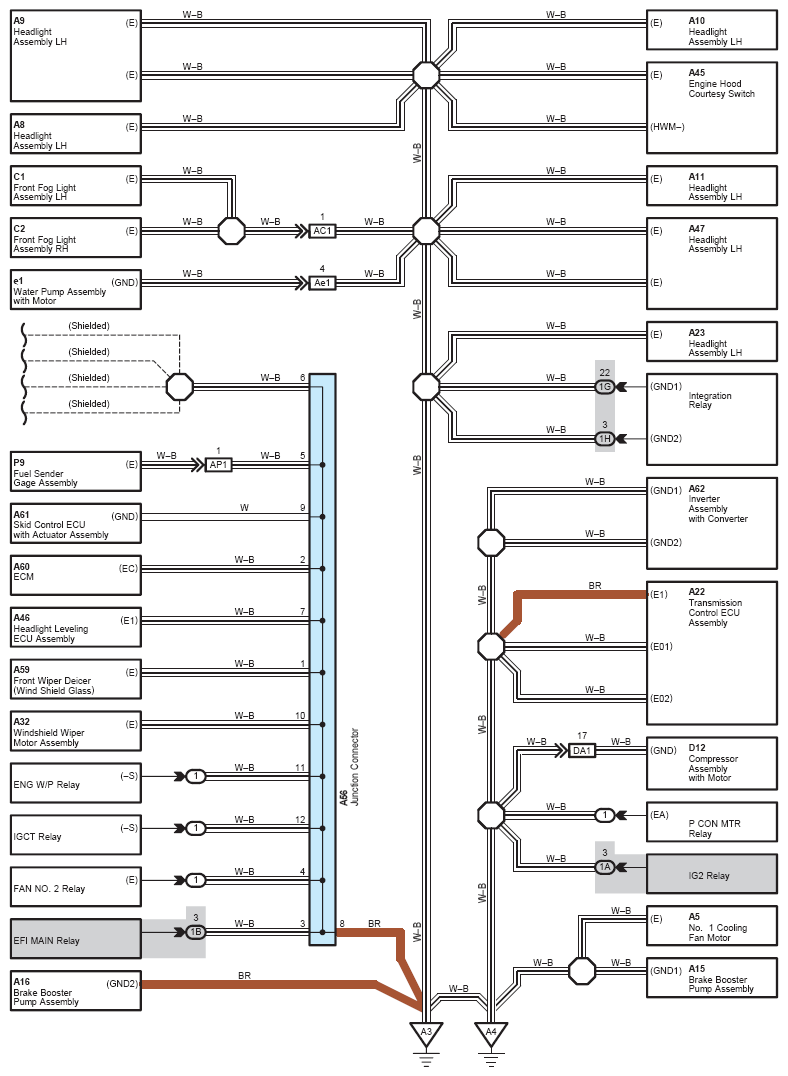

Fig 2: Ground Point Wiring Diagram (2 Of 8)

G08934737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

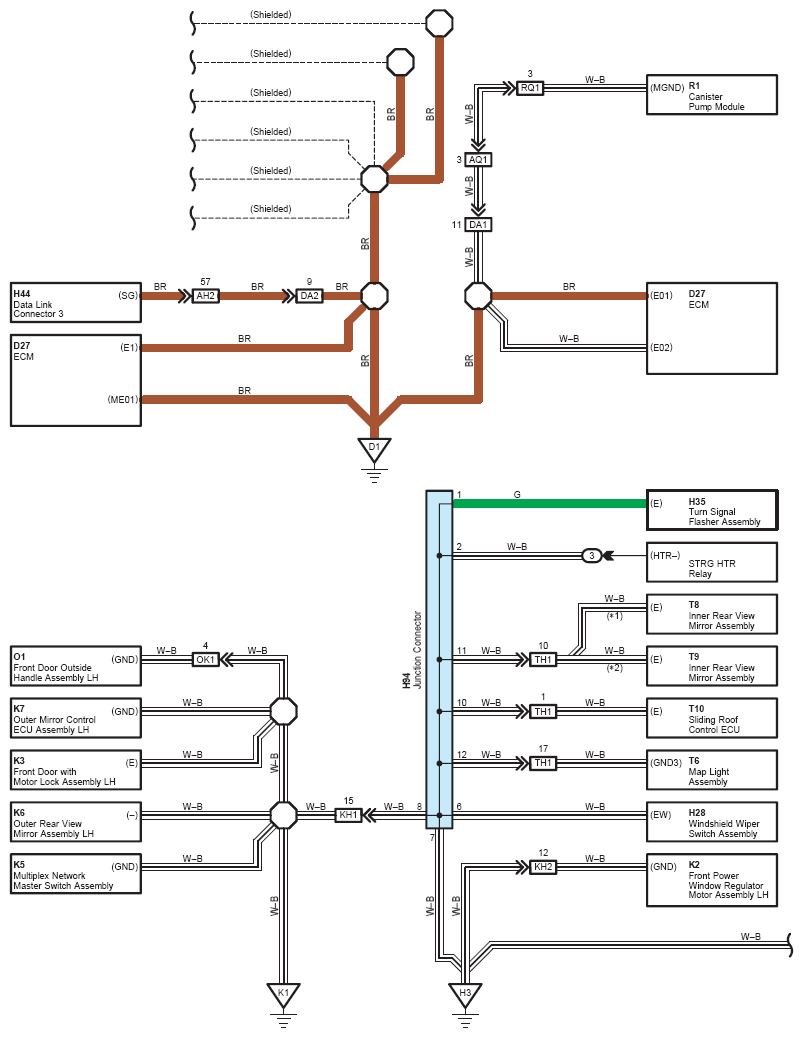

Fig 3: Ground Point Wiring Diagram (3 Of 8)

G08934738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

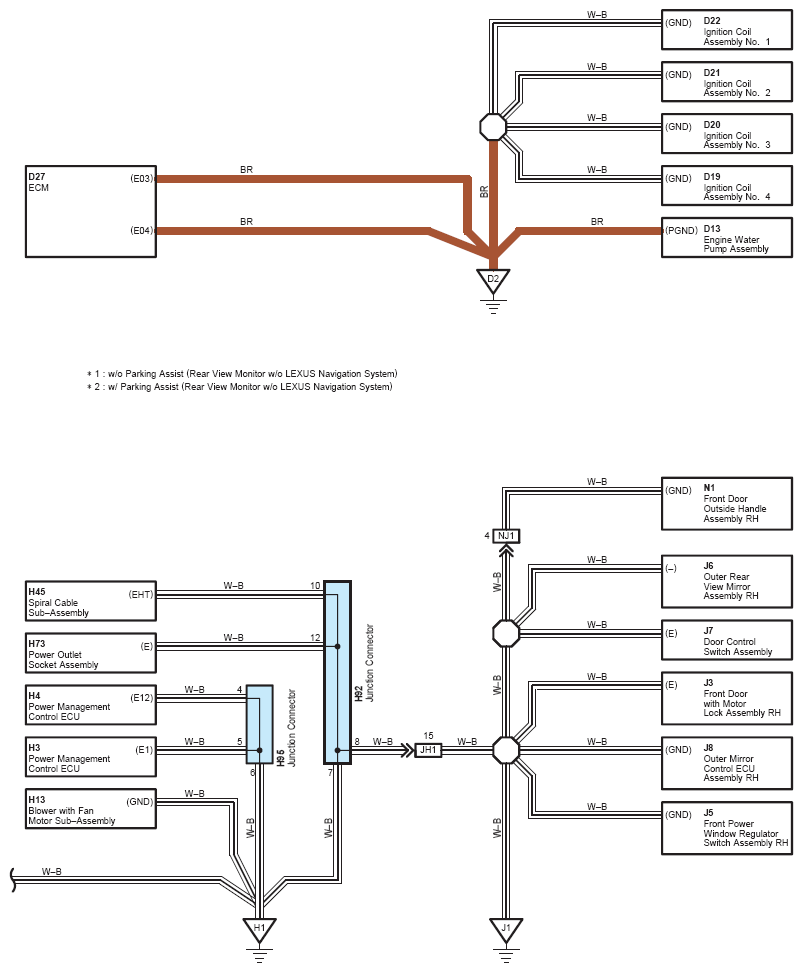

Fig 4: Ground Point Wiring Diagram (4 Of 8)

G08934739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

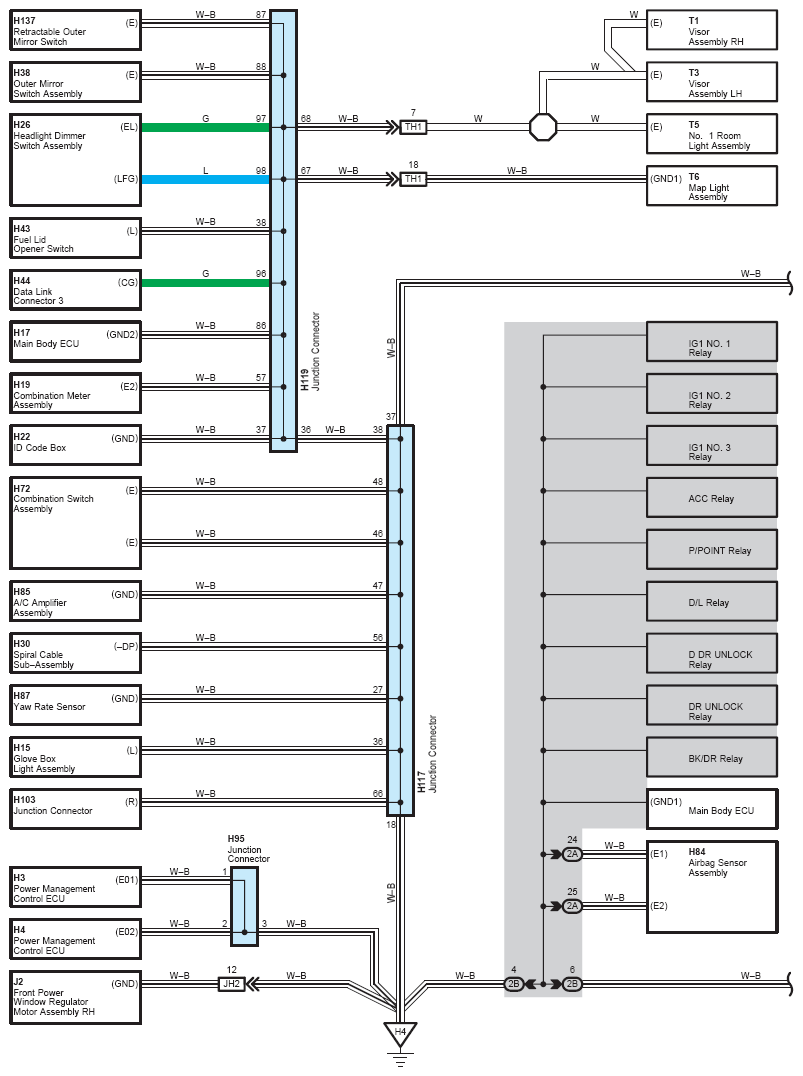

Fig 5: Ground Point Wiring Diagram (5 Of 8)

G08934740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

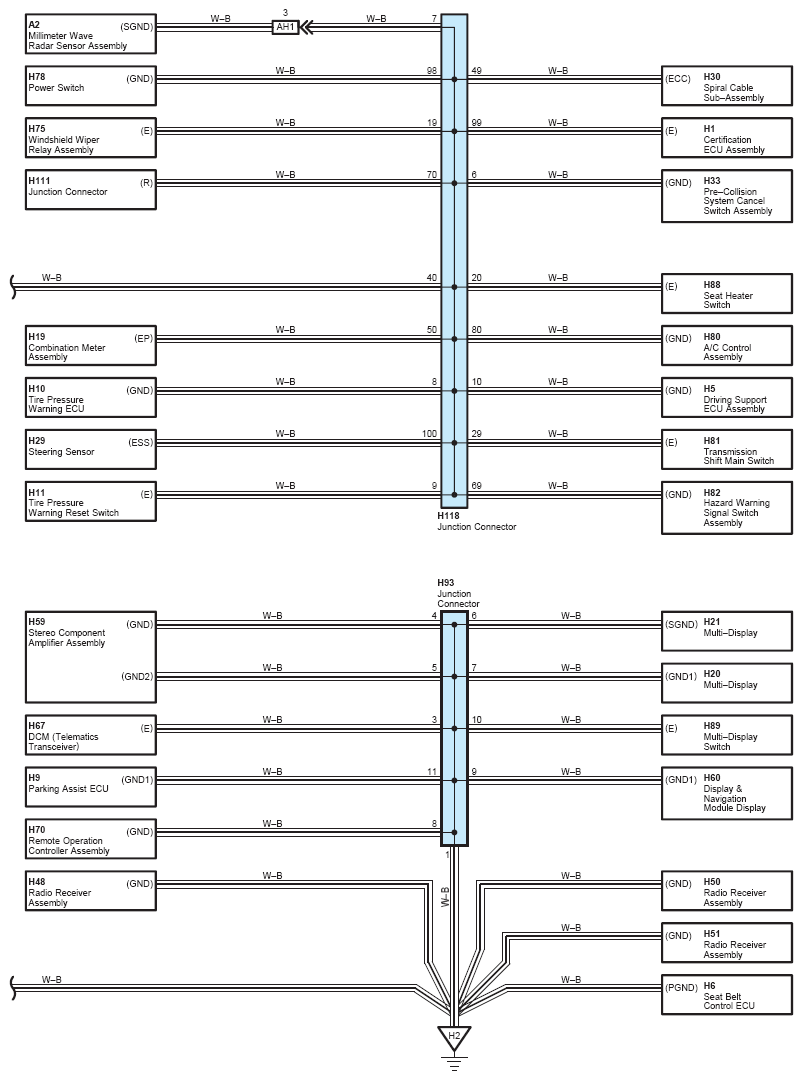

Fig 6: Ground Point Wiring Diagram (6 Of 8)

G08934741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

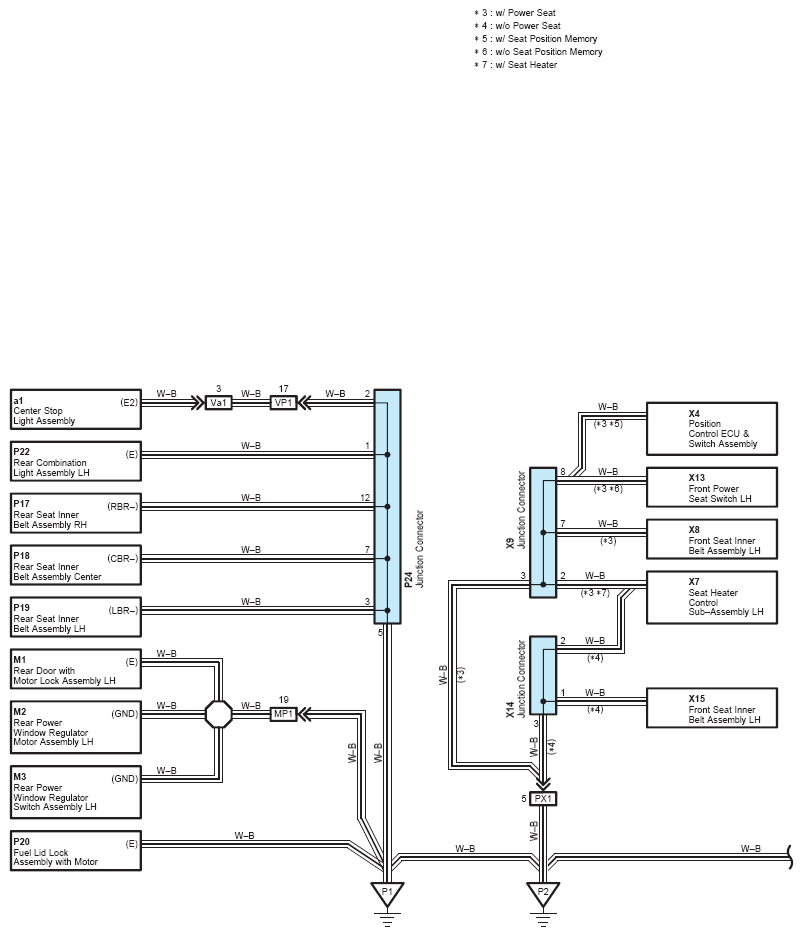

Fig 7: Ground Point Wiring Diagram (7 Of 8)

G08934742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

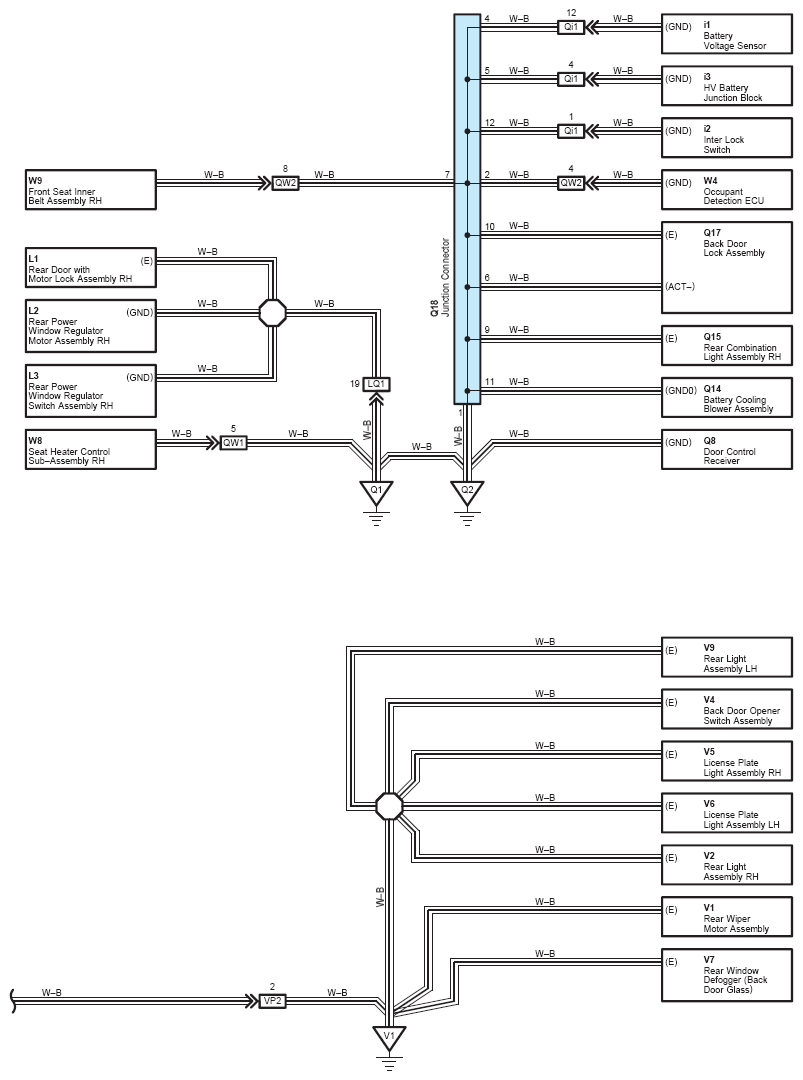

Fig 8: Ground Point Wiring Diagram (8 Of 8)

G08934743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
