ABS, Hill-Start Assist Control, TRAC and VSC: Notes

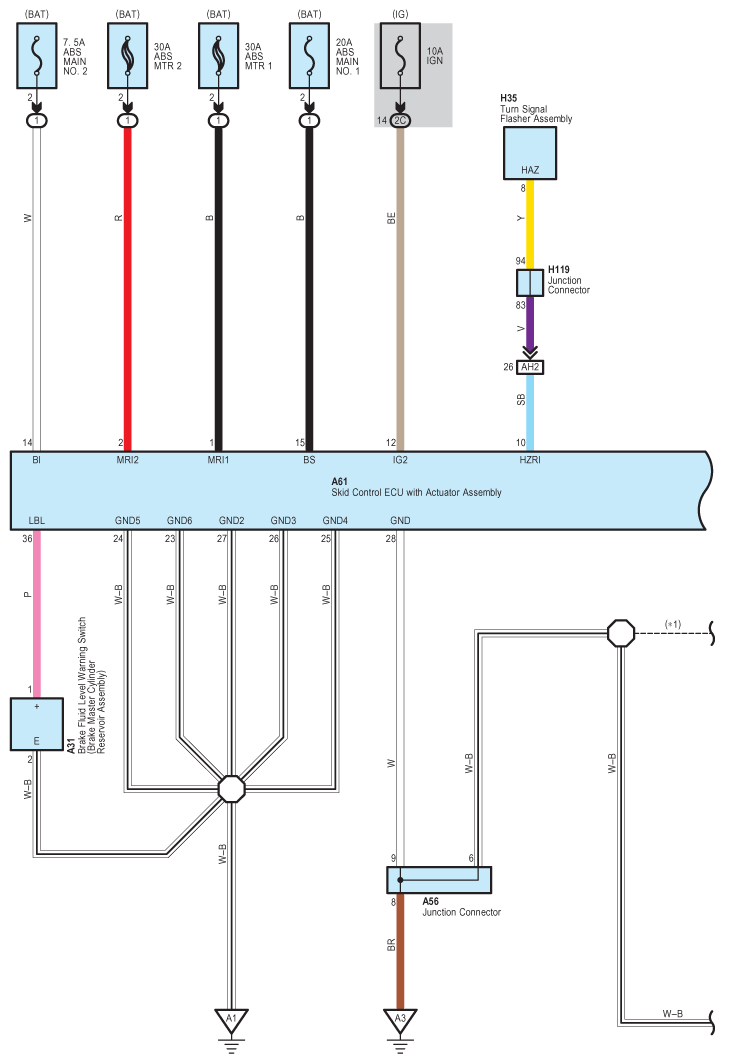

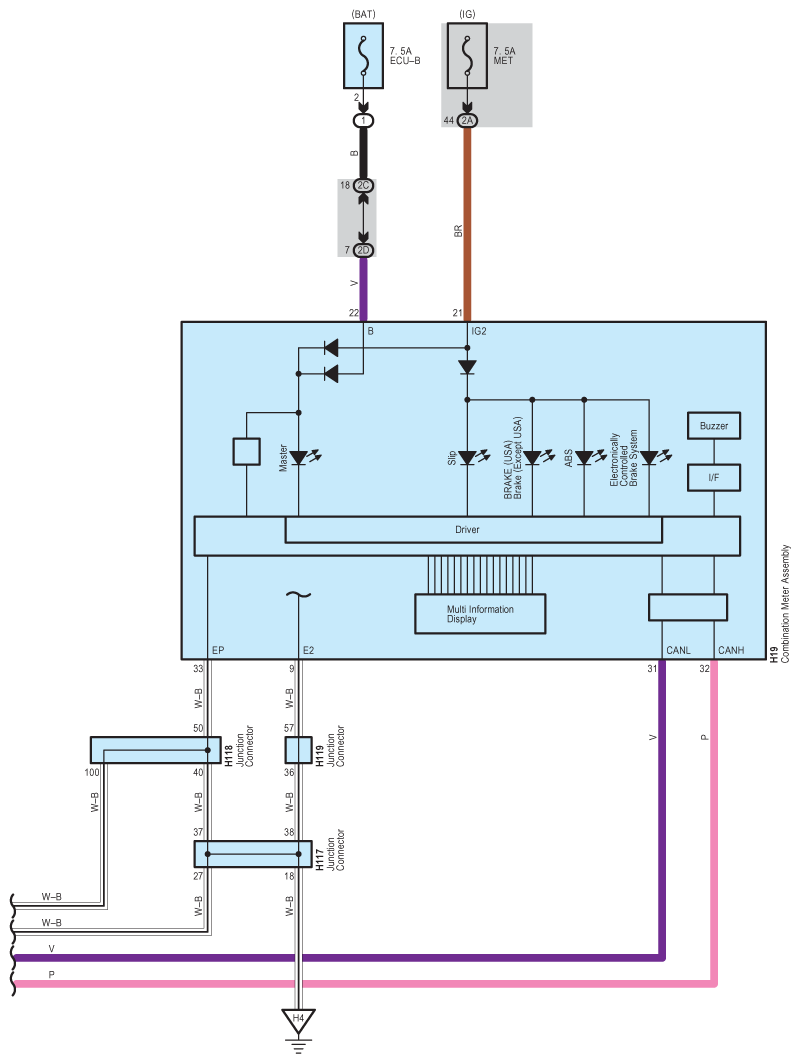

Fig 1: Abs, Hill-Start Assist Control, Trac And Vsc - Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

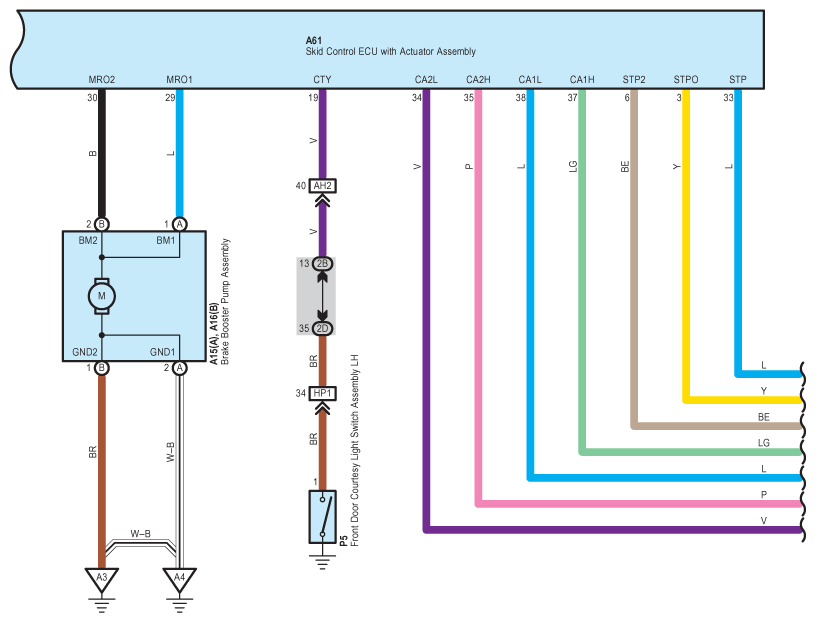

Fig 2: Abs, Hill-Start Assist Control, Trac And Vsc - Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

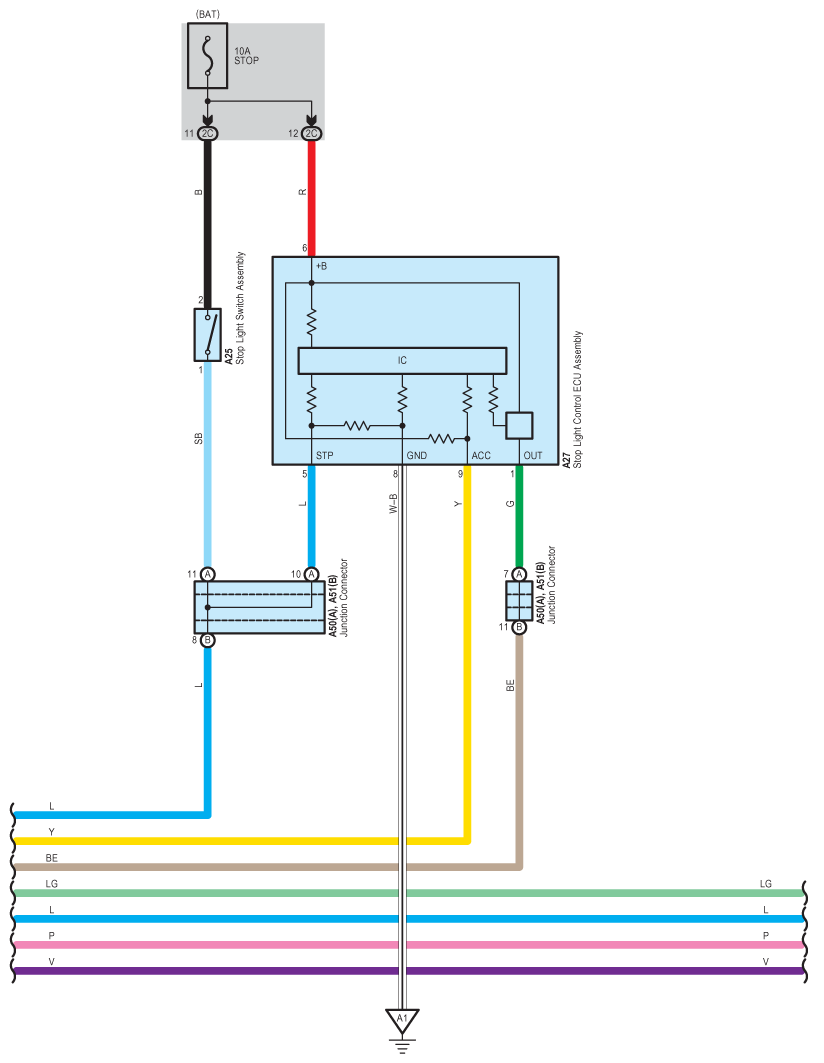

Fig 3: Abs, Hill-Start Assist Control, Trac And Vsc - Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

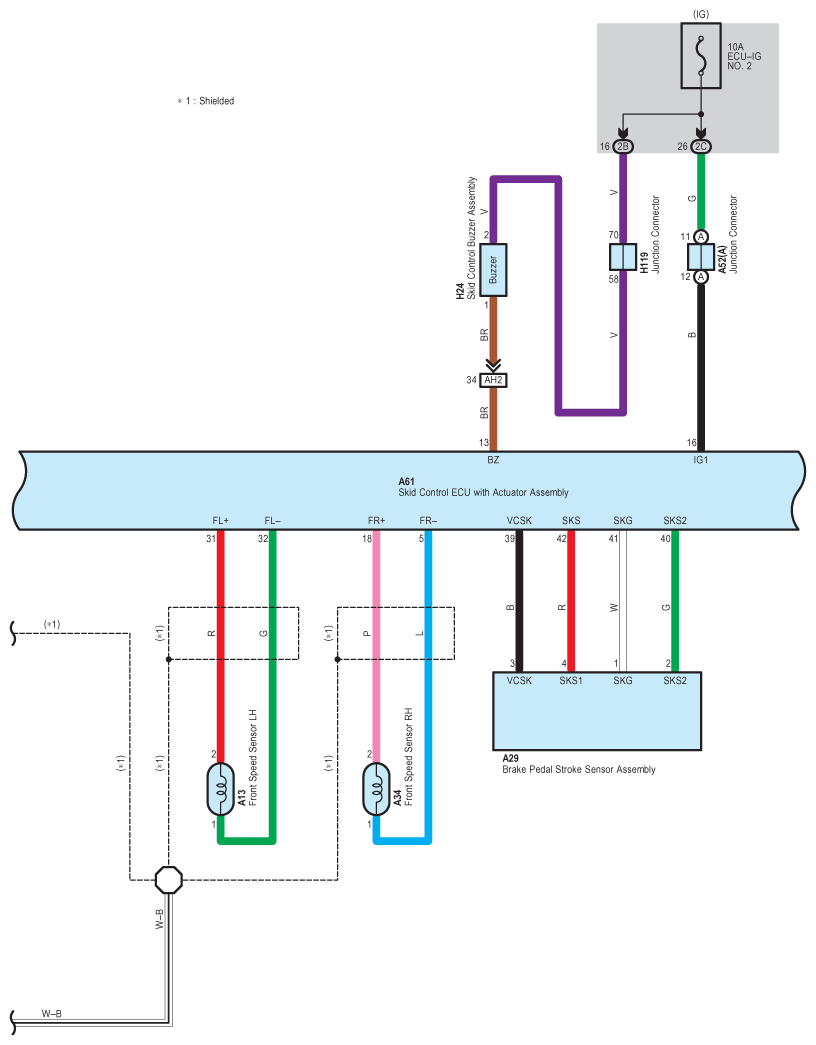

Fig 4: Abs, Hill-Start Assist Control, Trac And Vsc - Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

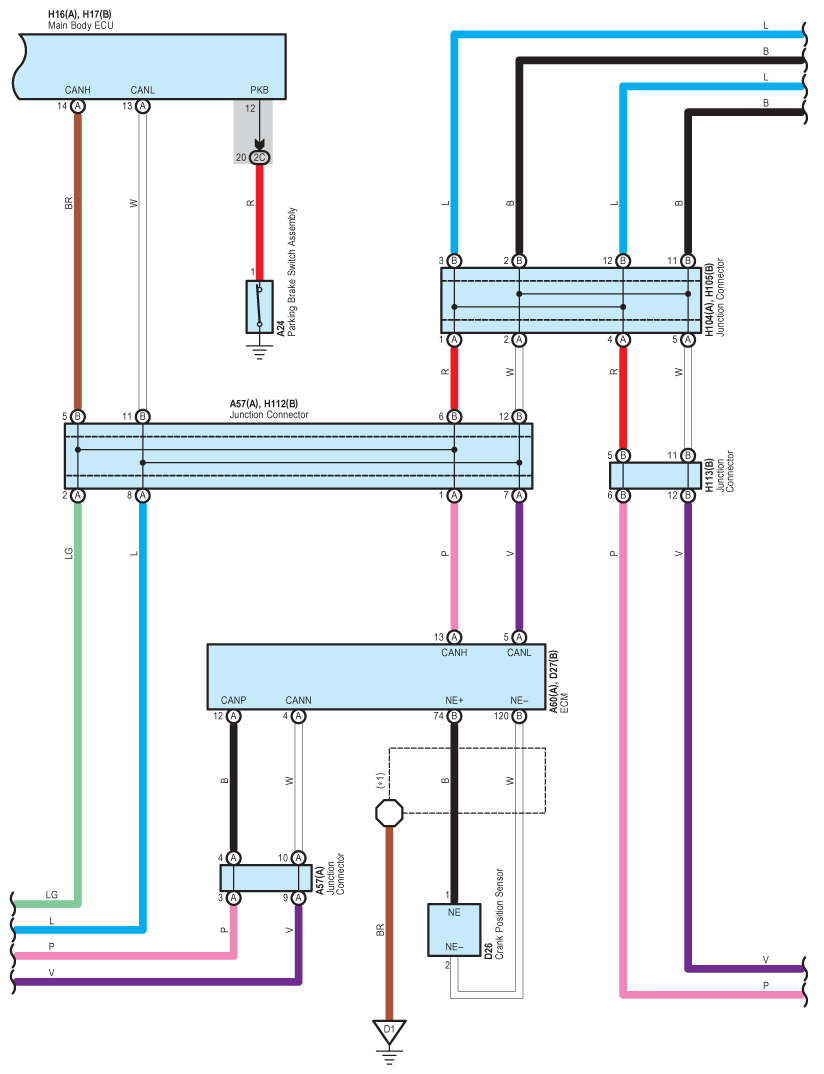

Fig 5: Abs, Hill-Start Assist Control, Trac And Vsc - Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

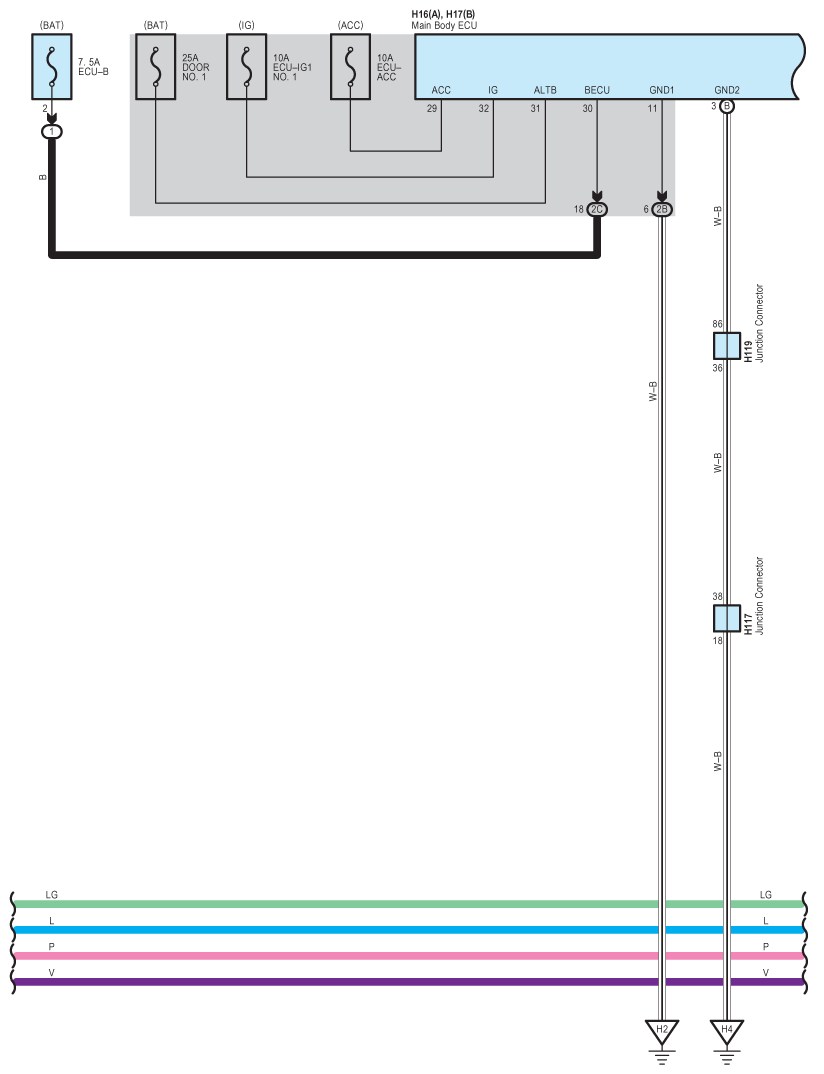

Fig 6: Abs, Hill-Start Assist Control, Trac And Vsc - Wiring Diagram (6 Of 9)

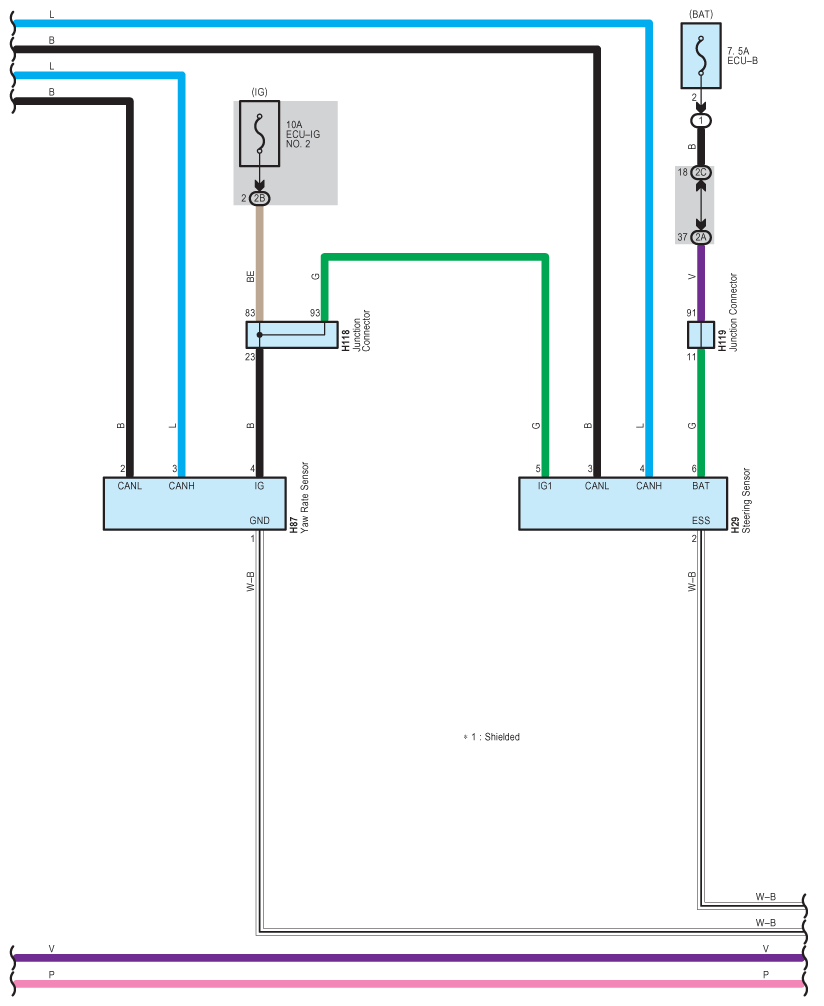

Fig 7: Abs, Hill-Start Assist Control, Trac And Vsc - Wiring Diagram (7 Of 9)

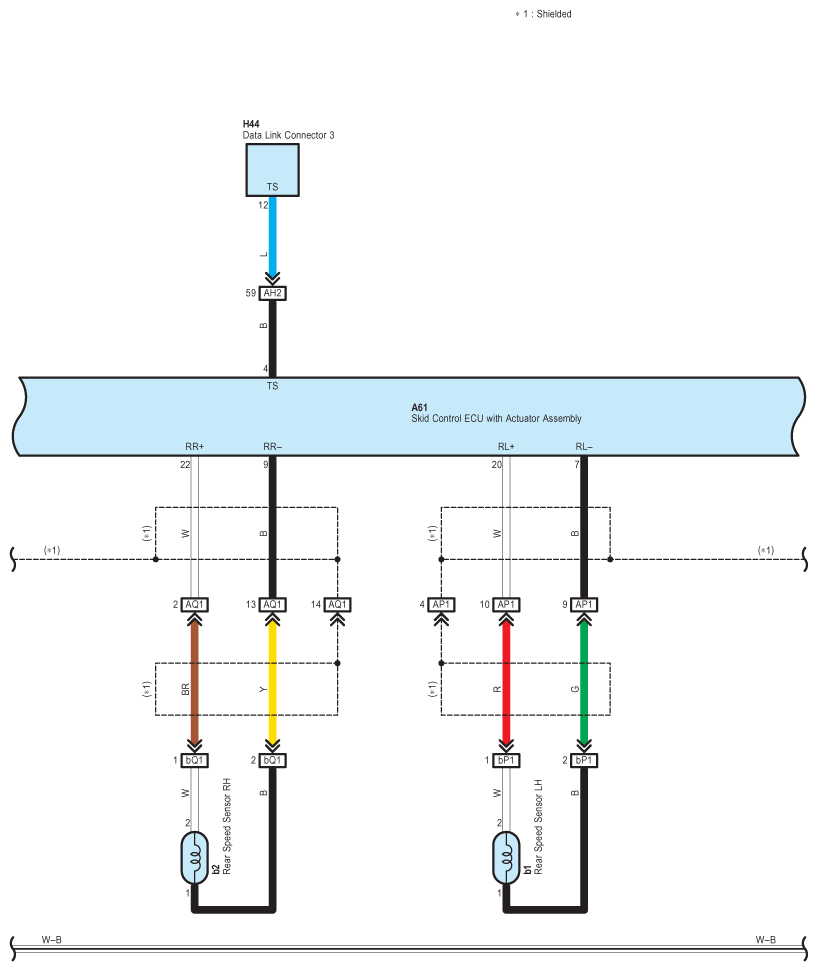

Fig 8: Abs, Hill-Start Assist Control, Trac And Vsc - Wiring Diagram (8 Of 9)

Fig 9: Abs, Hill-Start Assist Control, Trac And Vsc - Wiring Diagram (9 Of 9)
