Mirror Heater and Rear Window Defogger: Notes

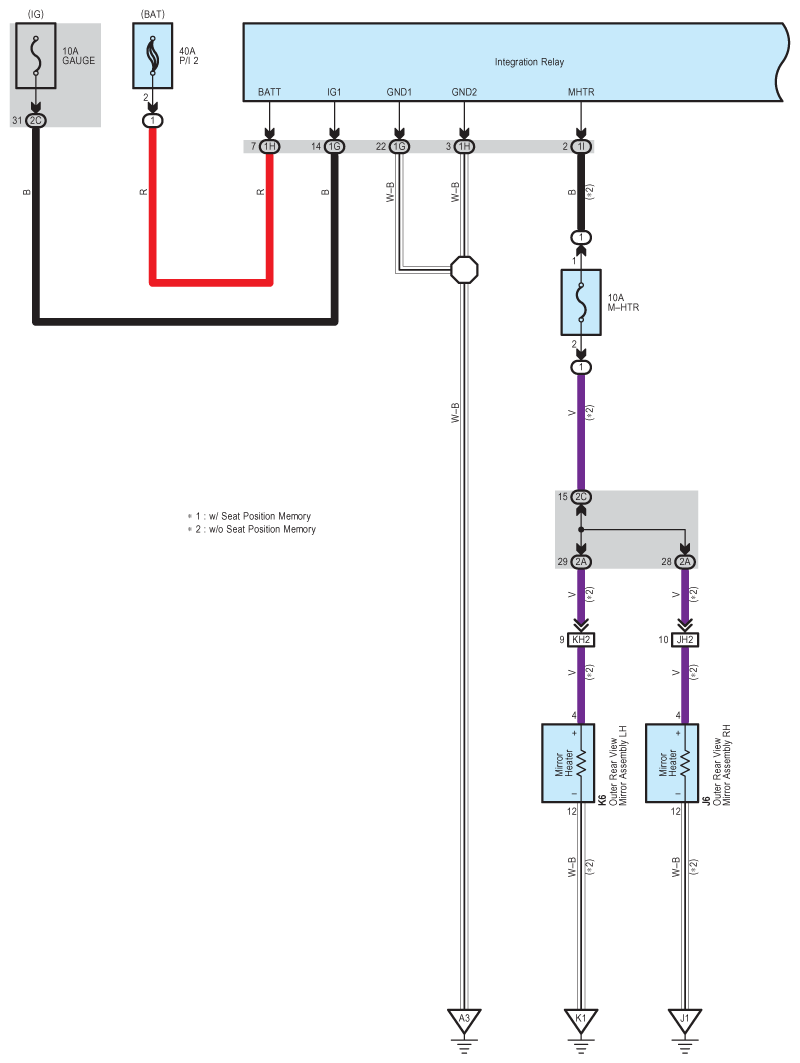

Fig 1: Mirror Heater And Rear Window Defogger - Wiring Diagram (1 Of 4)
G08934641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

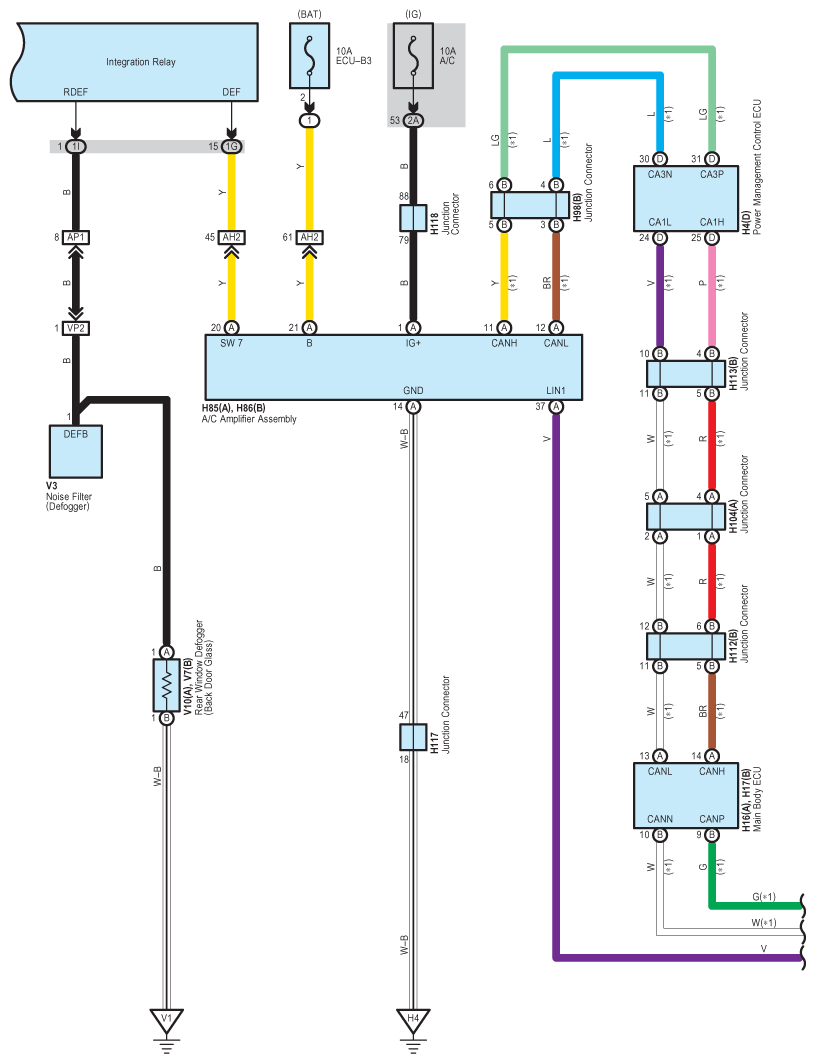

Fig 2: Mirror Heater And Rear Window Defogger - Wiring Diagram (2 Of 4)
G08934642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

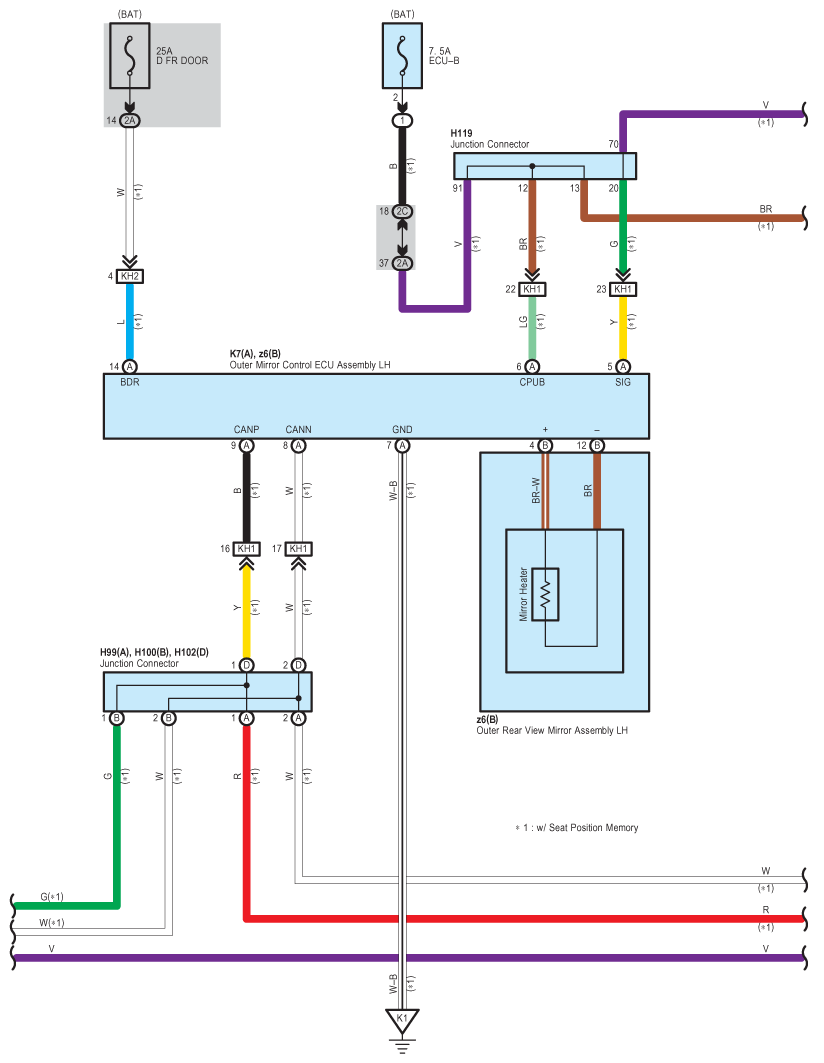

Fig 3: Mirror Heater And Rear Window Defogger - Wiring Diagram (3 Of 4)
G08934643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

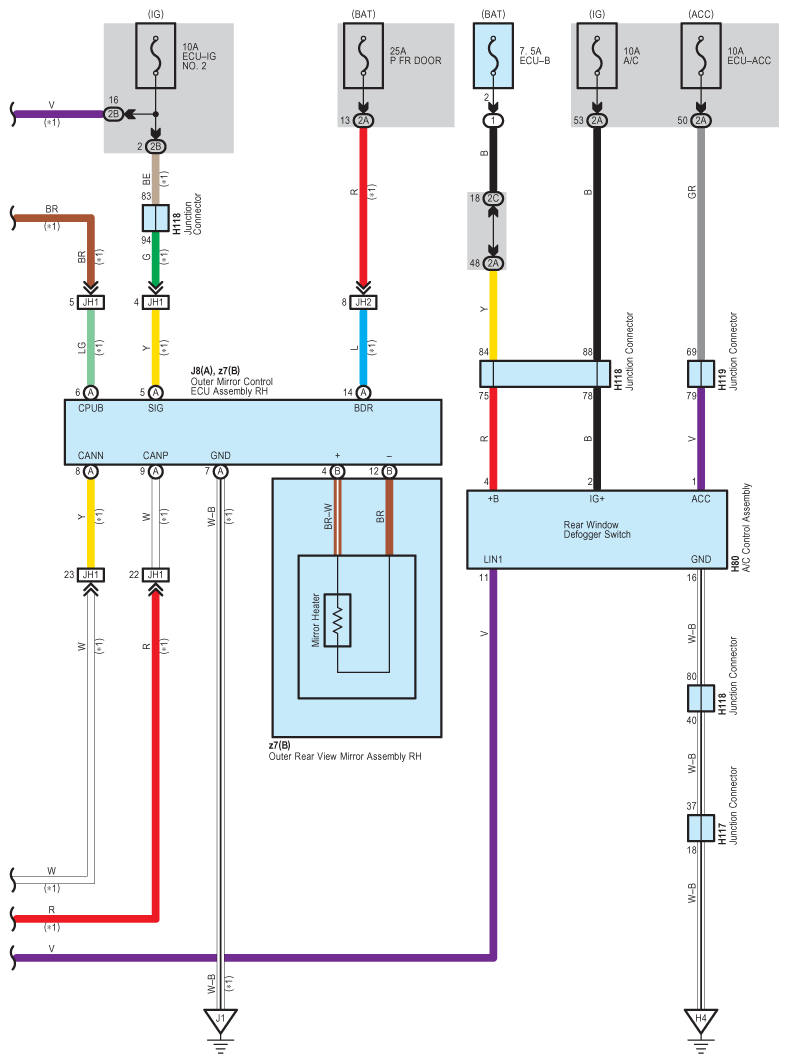

Fig 4: Mirror Heater And Rear Window Defogger - Wiring Diagram (4 Of 4)
G08934644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
