Air Fuel Ratio Sensor: Removal: Removal

REMOVE WINDSHIELD WIPER MOTOR AND LINK
Refer to REMOVAL
REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL . Refer to REMOVAL - Step 4
REMOVE NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL . Refer to REMOVAL - Step 5
REMOVE COWL BODY MOUNTING REINFORCEMENT LH . Refer to REMOVAL - Step 6
REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 7
REMOVE NO. 2 CYLINDER HEAD COVER . Refer to REMOVAL - Step 20
REMOVE AIR FUEL RATIO SENSOR NO. 2
1. Disconnect the air fuel ratio sensor connector and clamp.

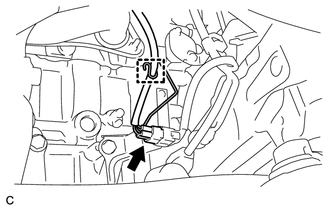

  Fig 1: Identifying Air Fuel Ratio Sensor & Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the air fuel ratio sensor.

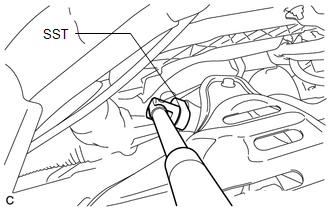

  Fig 2: Removing Air Fuel Ratio Sensor With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
