Camshaft Position Sensor: Removal: Removal

HINT:

Although the part name refers to the No. 1 crank position sensor, this procedure is for the camshaft position sensor.

1. REMOVE NO. 2 CYLINDER HEAD COVER  . Refer to REMOVAL - Step 20
2. REMOVE NO. 1 CRANK POSITION SENSOR
   1. Disconnect the No. 1 crank position sensor connector.

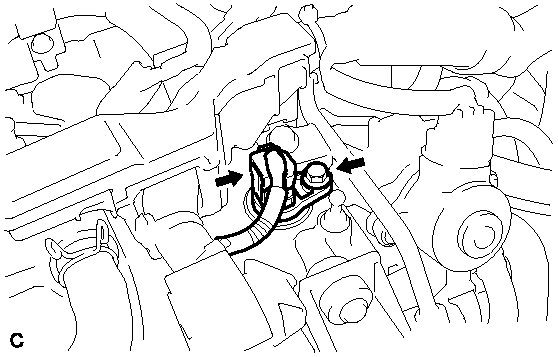

      Fig 1: Identifying No. 1 Crank Position Sensor & Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the bolt and No. 1 crank position sensor.
