Knock Sensor: Removal: Removal

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL - Step 5

  2. REMOVE KNOCK SENSOR
    1. Disconnect the knock sensor connector.
    2. Remove the bolt and knock sensor.

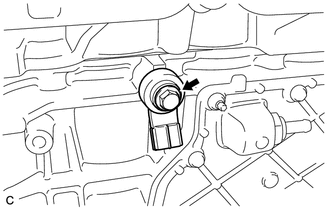

      Fig 1: Identifying Knock Sensor, Connector & Bolt
      GTY227208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
