Hybrid Power Control Module: Locations

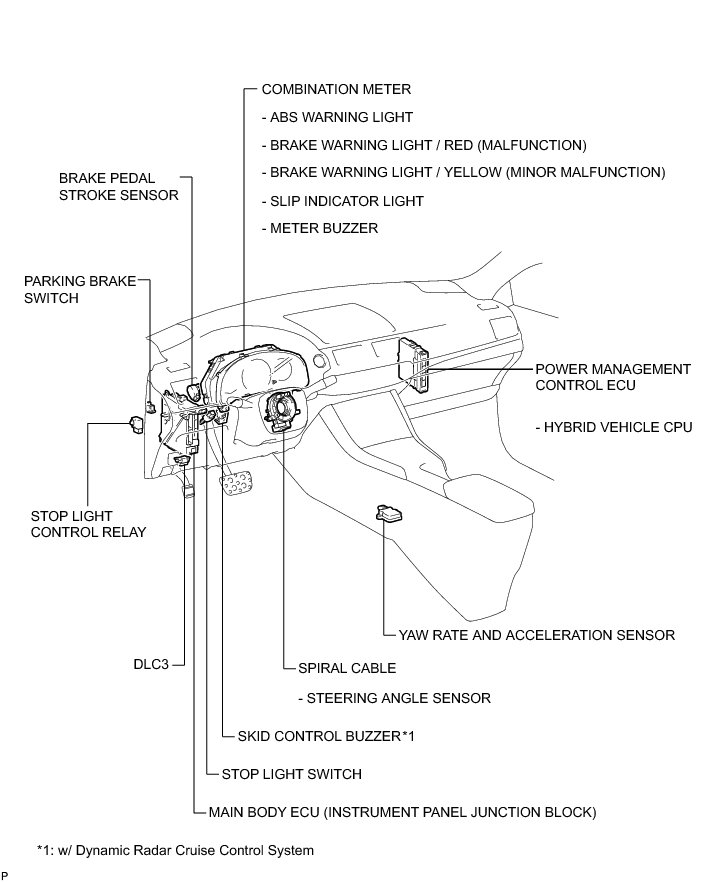

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: PARTS LOCATION
