Body Control Module: Locations

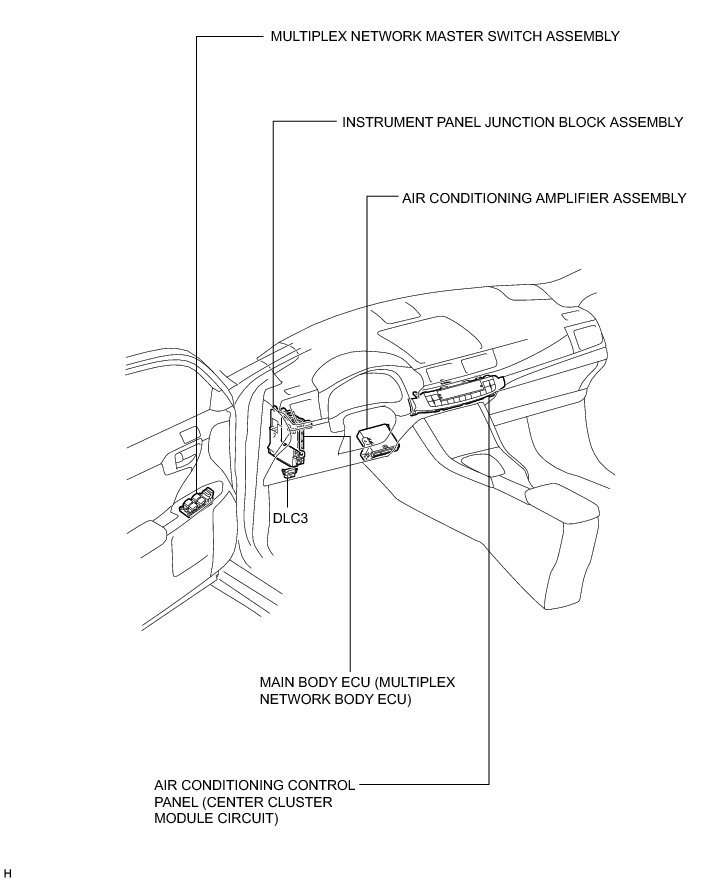

NETWORKING: LIN COMMUNICATION SYSTEM: PARTS LOCATION

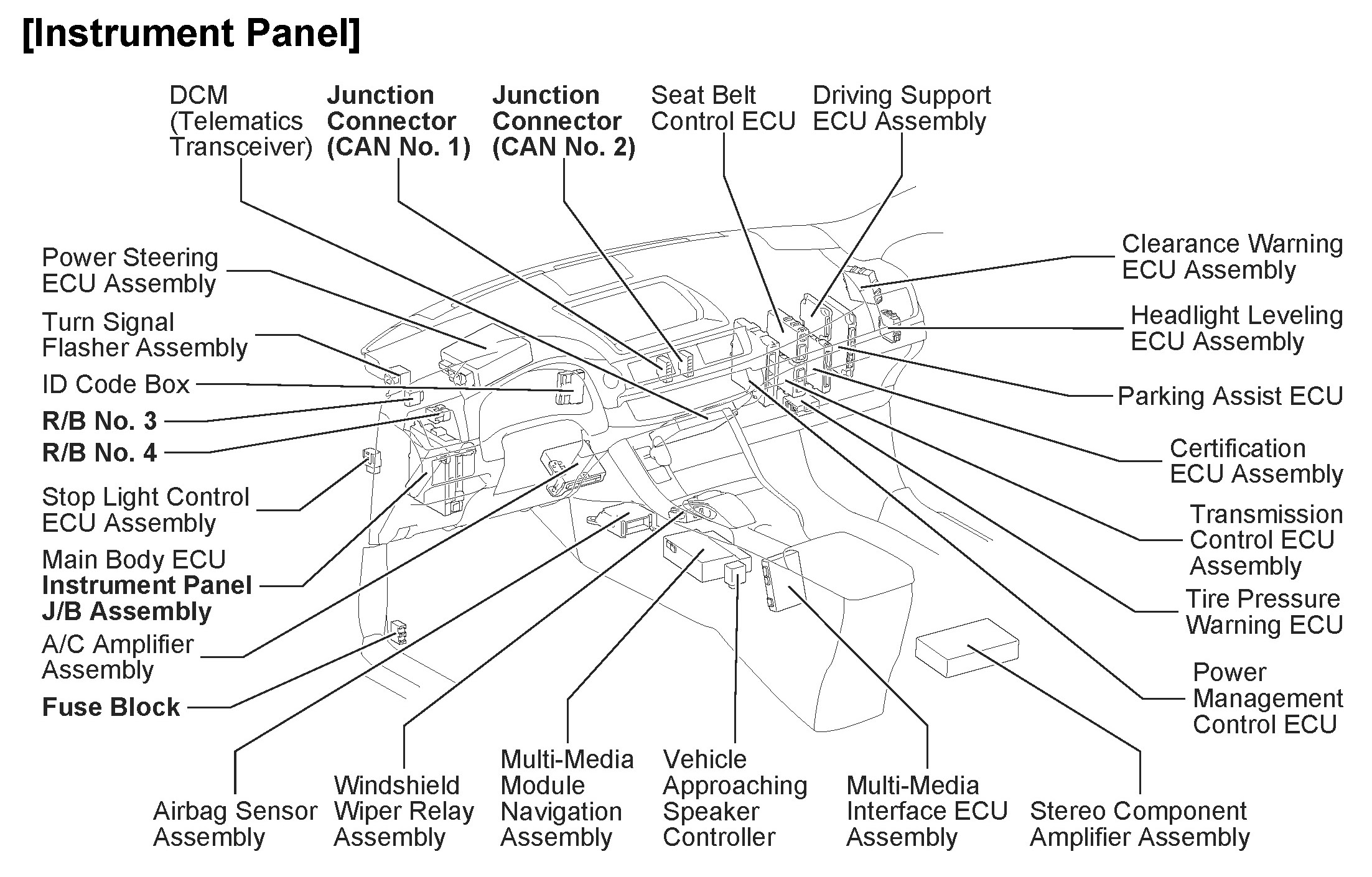

Instrument Panel:
