Service Data

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS: SERVICE DATA

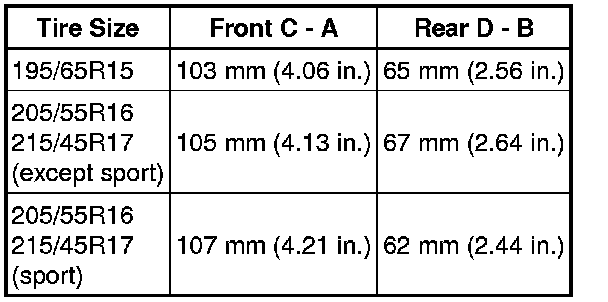

Vehicle Height (Unloaded Vehicle)

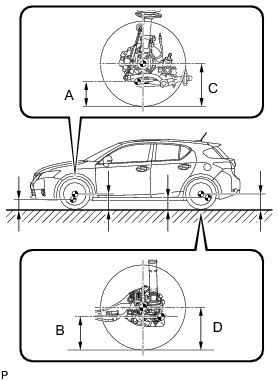

Measurement points:





* A: Ground clearance of front lower No. 1 suspension arm bushing set bolt center

* B: Ground clearance of rear No. 2 suspension arm set bolt center

* C: Ground clearance of front wheel center

* D: Ground clearance of rear wheel center

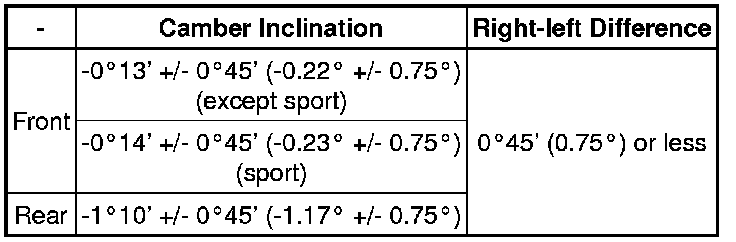

Camber (Unloaded Vehicle)

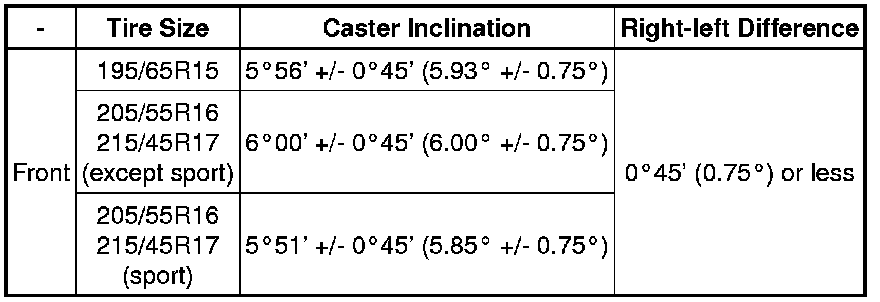

Caster (Unloaded Vehicle)

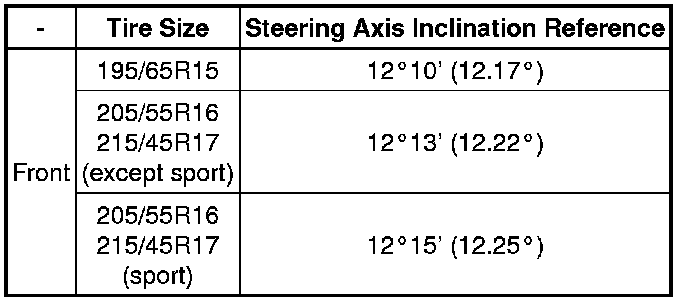

Steering Axis (Unloaded Vehicle)

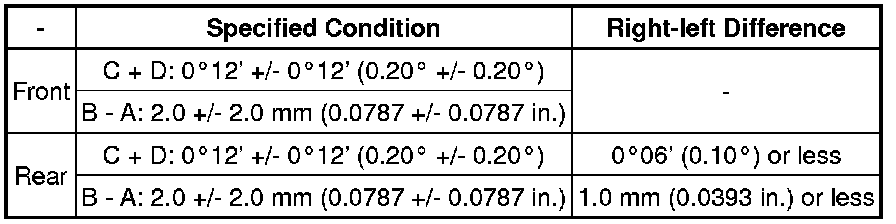

Toe-in (Unloaded Vehicle)

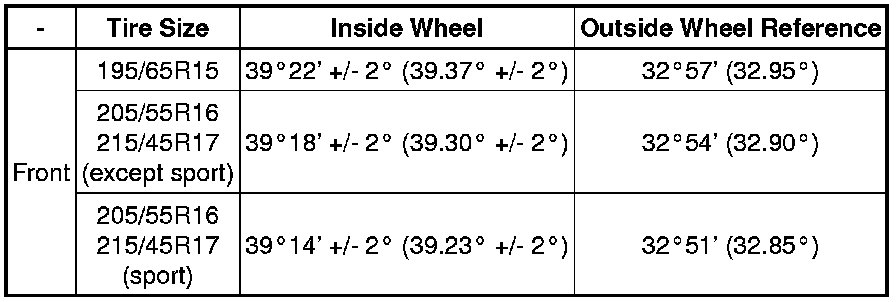

Wheel Turning Angle (Unloaded Vehicle)
