Locks: Specifications

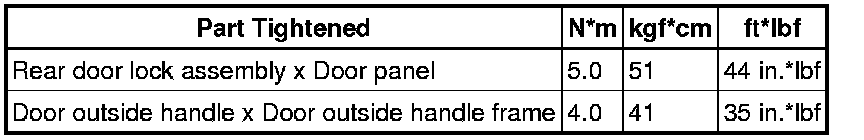

SERVICE SPECIFICATIONS: DOOR LOCK: TORQUE SPECIFICATIONS

FRONT DOOR LOCK





REAR DOOR LOCK





LUGGAGE DOOR LOCK
