Seat Temperature Control Module: Testing and Inspection

SEAT: SEAT HEATER CONTROL: INSPECTION

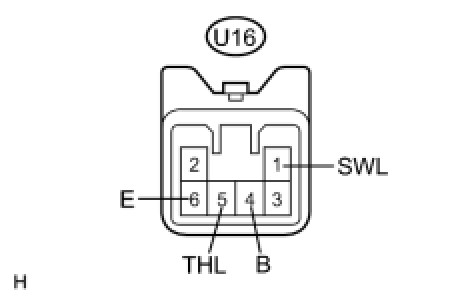

1. INSPECT FRONT SEAT HEATER CONTROL LH

(a) Disconnect the seat heater control LH connector.

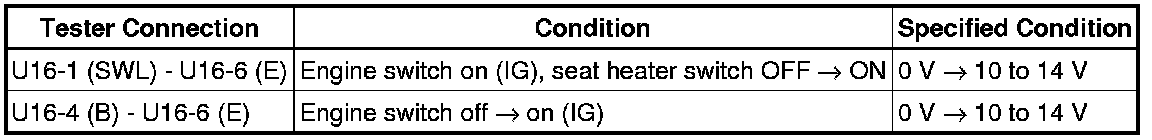

(b) Measure the voltage and resistance according to the value(s) in the table below.





Standard resistance:





Standard voltage:





(c) Reconnect the seat heater control LH connector.

(d) Measure the voltage according to the value(s) in the table below.

Standard voltage:

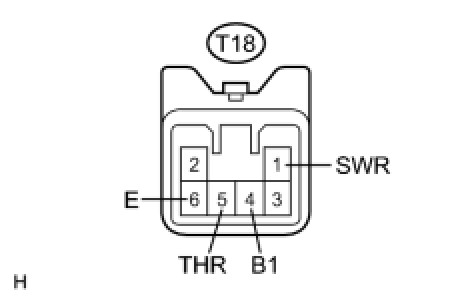

2. INSPECT FRONT SEAT HEATER CONTROL RH

(a) Disconnect the seat heater control RH connector.

(b) Measure the voltage and resistance according to the value(s) in the table below.





Standard resistance:





Standard voltage:





(c) Reconnect the seat heater control RH connector.

(d) Measure the voltage according to the value(s) in the table below.

Standard voltage:
