Intake Manifold

Intake manifold
Install and tighten the 6 bolts and 4 nuts uniformly in several steps
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

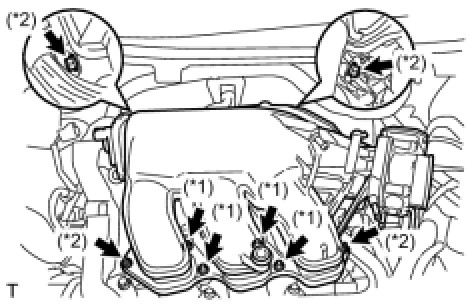

Intake air surge tank





Install the 4 bolts (*1)
Torque 18 Nm (184 kgf-cm, 13 ft-lbf)

Install the intake air surge tank with the 2 nuts and 2 bolts. (*2)
Nut - Torque 16 Nm (163 kgf-cm, 12 ft-lbf)
Bolt - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
