Control Module: Locations

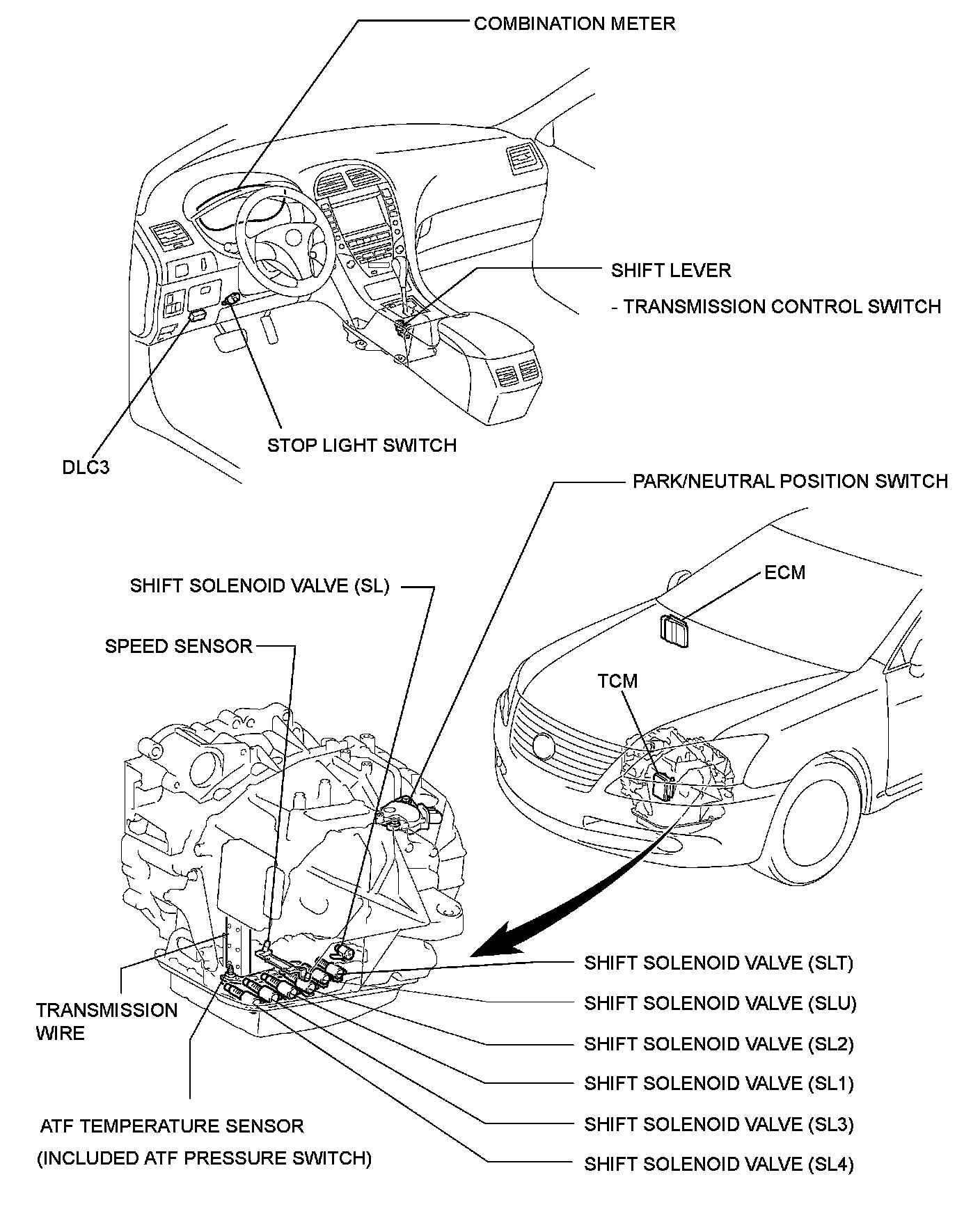

U660E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION
Engine Compartment:
