U660E AUTOMATIC TRANSAXLE: TCM: REMOVAL

NOTICE:
When the TCM is replaced, the existing transaxle compensation codes must be input into a new TCM Registration.

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE BATTERY Removal

3. REMOVE AIR CLEANER INLET ASSEMBLY Removal

4. REMOVE NO. 1 AIR CLEANER INLET Removal

5. REMOVE INTAKE AIR RESONATOR SUB-ASSEMBLY Removal

6. REMOVE TCM

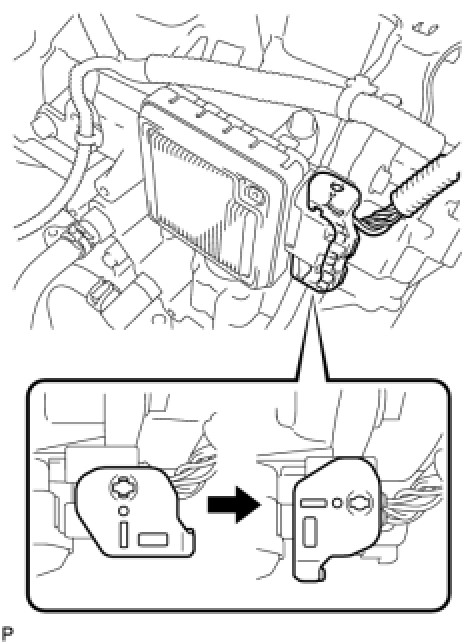

(a) Turn the lock lever and disconnect the connector from the TCM.

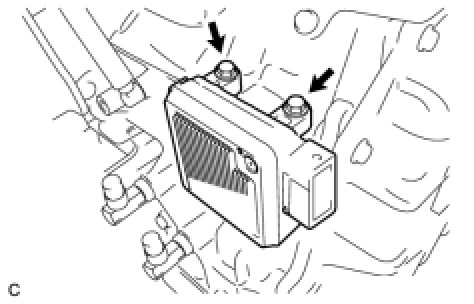

(b) Remove the 2 bolts and TCM from the transaxle.
