Programming and Relearning

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZE AIR CONDITIONING SYSTEM

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Record the current settings before customizing.

(a) Customizing with the Techstream

(1) Connect the Techstream to the DLC3.

(2) Turn the engine switch on (IG).

(3) Turn the Techstream on.

(4) Enter the following menus: Utility / Customize / Air Conditioner.

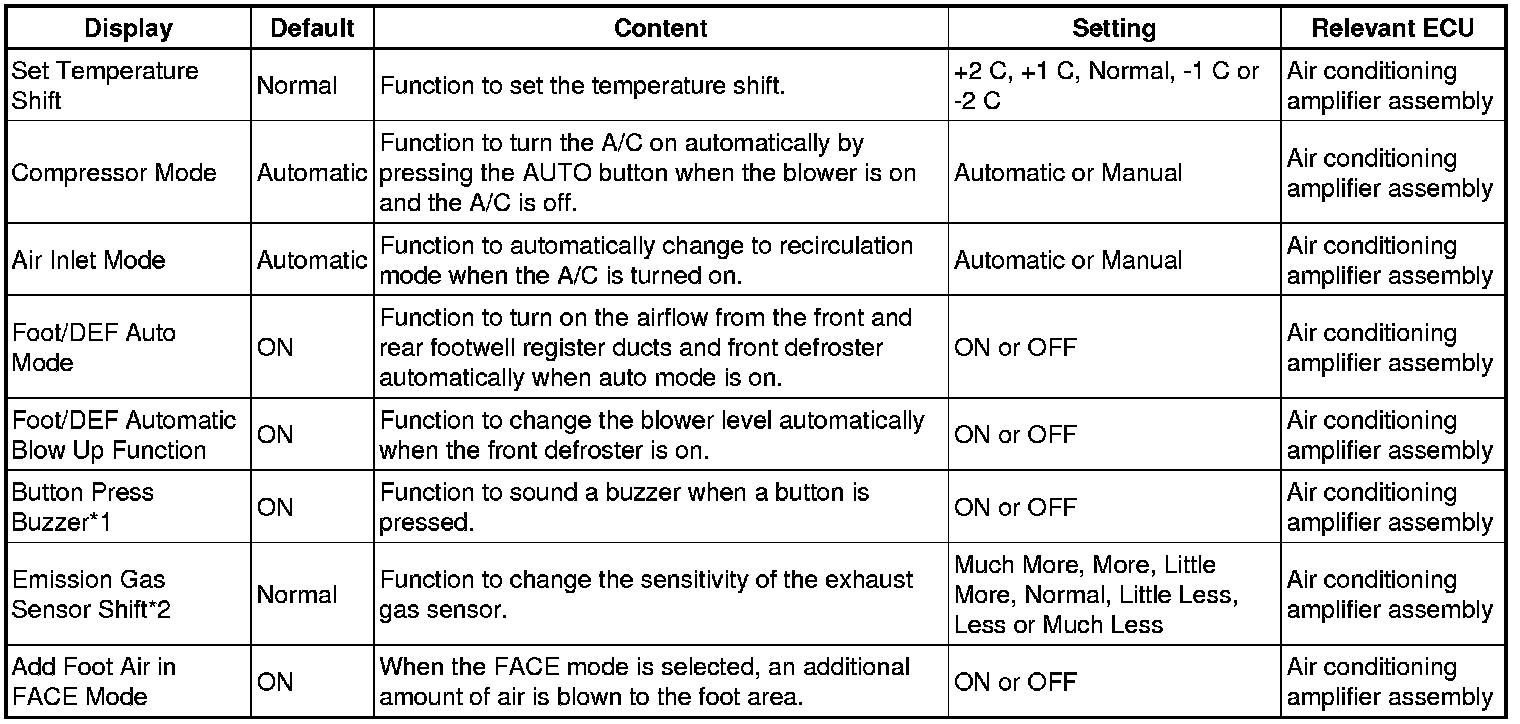

(5) Select the setting by referring to the table below.





HINT
*1: This item is displayed even if the vehicle is not equipped with a navigation assembly. Even if the setting is changed, nothing happens because the vehicle does not have the buzzer sounding function.

* *2: w/ Rear Air Conditioning System

(b) Customizing with Multi-display

(1) Turn the engine switch on (IG).

(2) Select the following menus: Setup / Vehicle / Vehicle Customization.

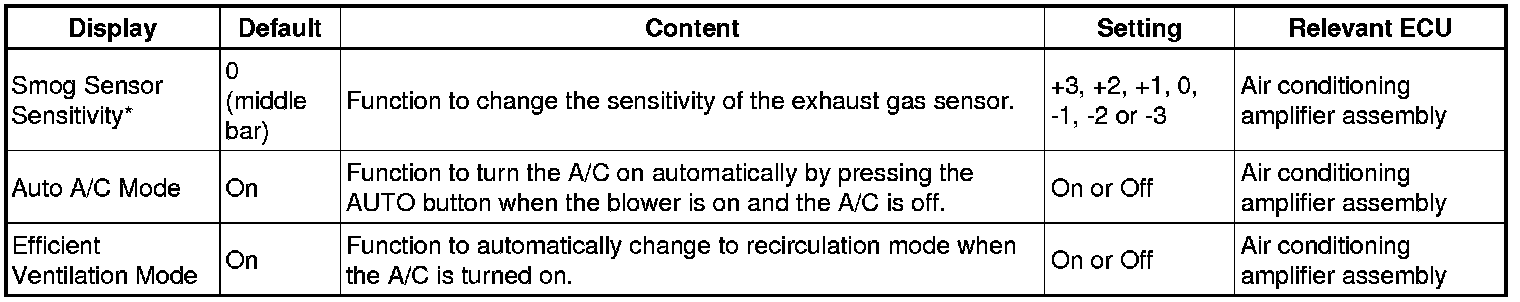

(3) Select the setting by referring to the table below.





* *: w/ Rear Air Conditioning System
