Installation

1UR-FE ENGINE CONTROL: MASS AIR FLOW METER: INSTALLATION

1. INSTALL MASS AIR FLOW METER ASSEMBLY

(a) Install the mass air flow meter with the 2 screws.

Torque : 1.0 Nm (10 kgf-cm, 9 in-lbf)

2. INSTALL AIR CLEANER CAP SUB-ASSEMBLY

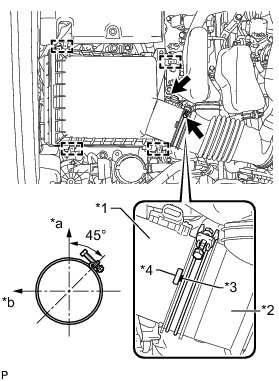

(a) Attach the 4 clips and install the air cleaner cap with the bolt.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)





Text in Illustration





HINT
When installing the air cleaner hose, align its groove with the protrusion of the throttle body as shown in the illustration.

(b) Tighten the hose clamp.

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

HINT
Make sure the direction of the hose clamp is as shown in the illustration.

(c) Attach the clamp and connect the mass air flow meter connector.
