Terminating Resistor: Locations

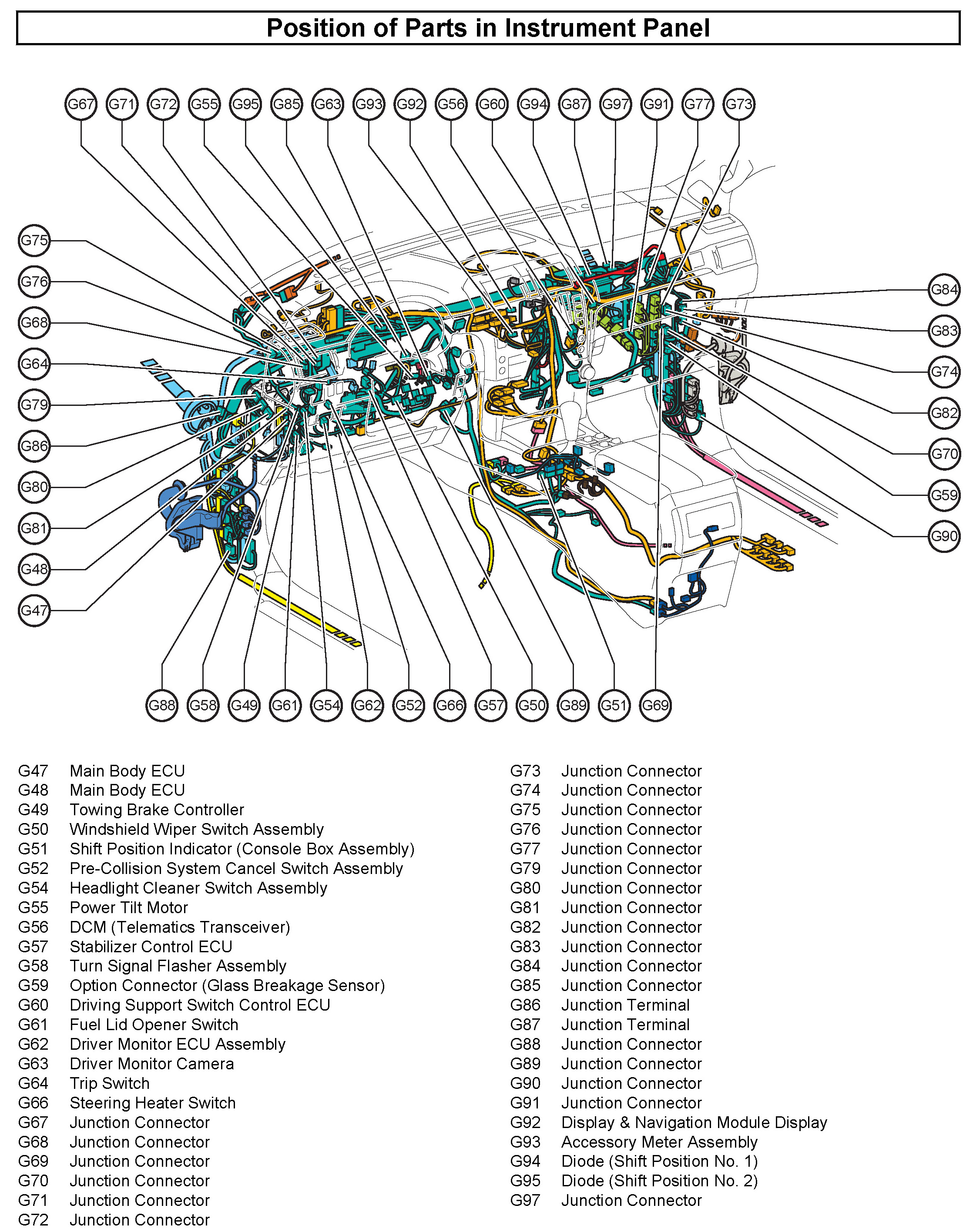

59 - Position of Parts in Instrument Panel:
G86 and G87 are the Terminating Resistors.
