Main Relay (Computer/Fuel System): Locations





1UR-FE ENGINE CONTROL: SFI SYSTEM: PARTS LOCATION

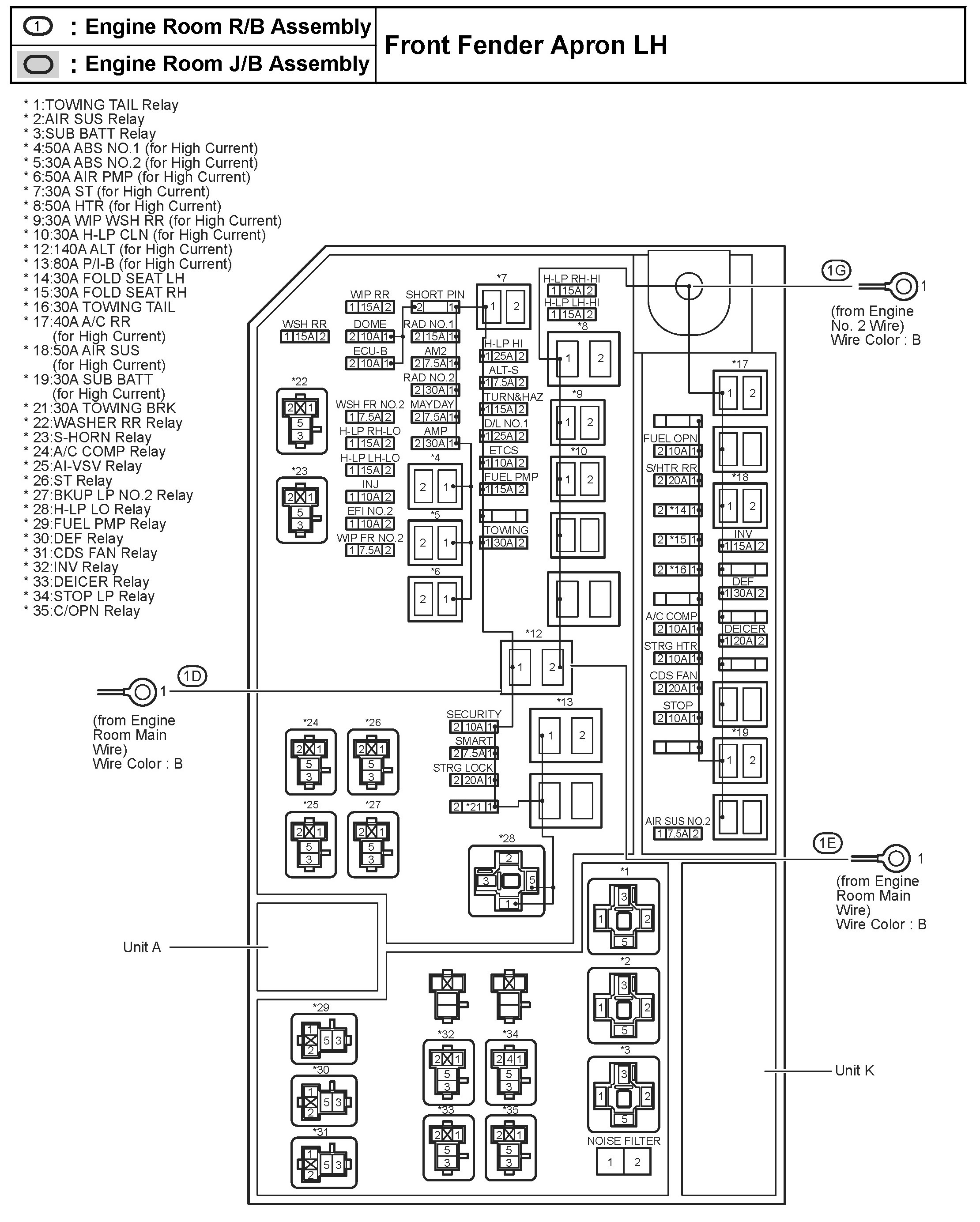

24 - Engine Room R/B Assembly, Engine Room J/B Assembly - Front Fender Apron LH:

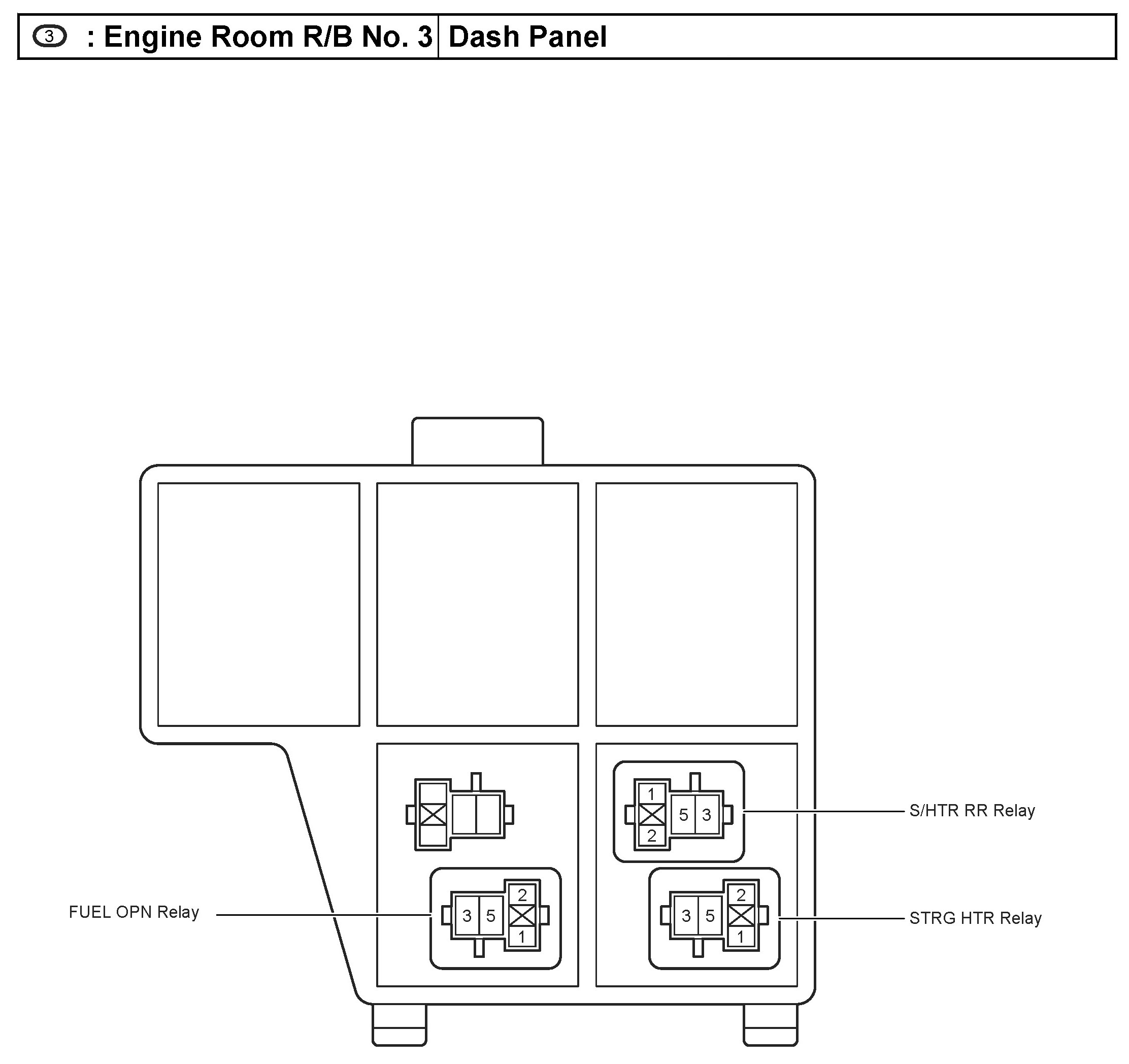

28 - Engine Room R/B No. 3 - Dash Panel:
