Mechanical Specifications





SPECIFICATIONS: 1UR-FE EMISSION CONTROL: TORQUE SPECIFICATIONS

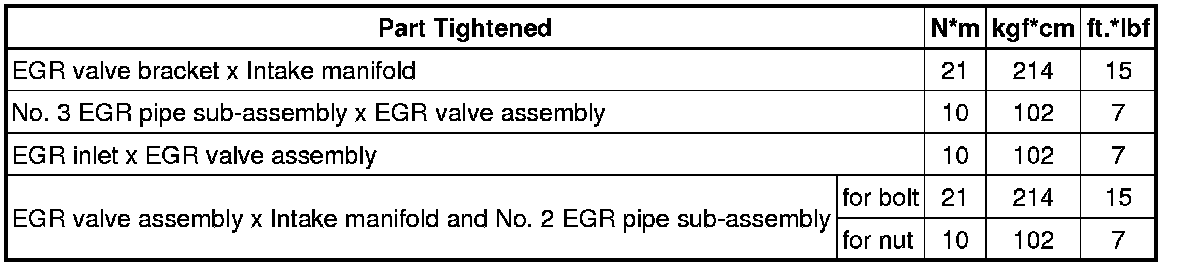

EGR Valve

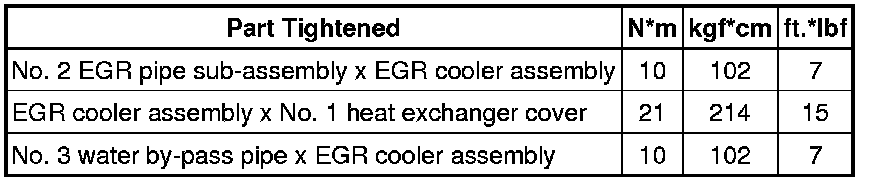

EGR Cooler





Air Pump

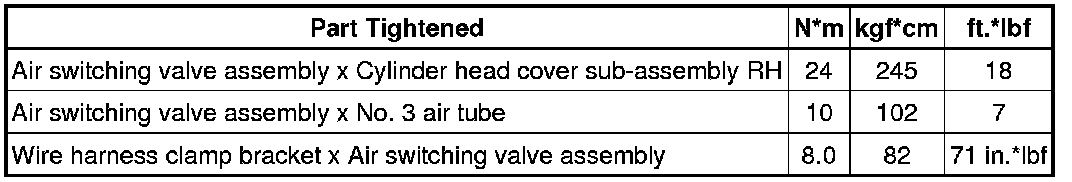

Air Switching Valve (for Bank 1)

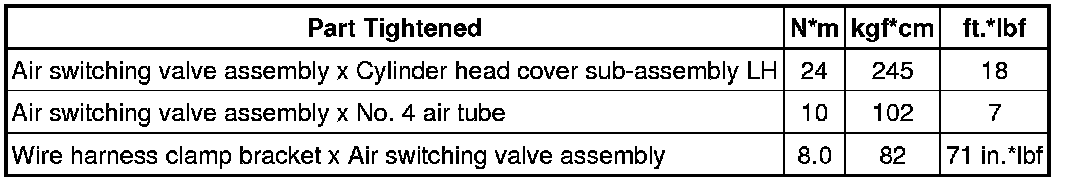

Air Switching Valve (for Bank 2)

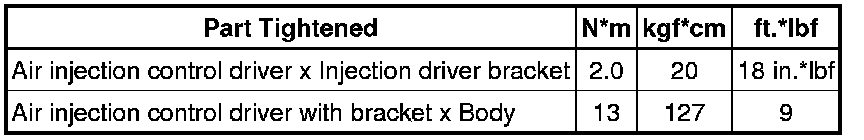

Air Injection Driver





Canister





Purge VSV





PCV Valve
